Card Version - audio/video/USB/serial RS-232 over IP encoder / audio embedder wallplate
| Main Specifications | |
|---|---|
| Product Description | AMX SVSI NMX-ENC-N2612S - Card Version audio/video/USB/serial RS-232 over IP encoder / audio embedder wallplate |
| Type | Audio/video/USB/serial RS-232 over IP encoder / audio embedder wallplate |
| Dimensions (WxDxH) | 7.9 in - 5 in - 1 in |
| Weight | 11.99 oz |
| General | |
| Type | Audio/video/USB/serial RS-232 over IP encoder / audio embedder wallplate |
| Width | 7.9 in |
| Depth | 5 in |
| Height | 1 in |
| Weight | 11.99 oz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 20.81 oz |
| Terminals | |

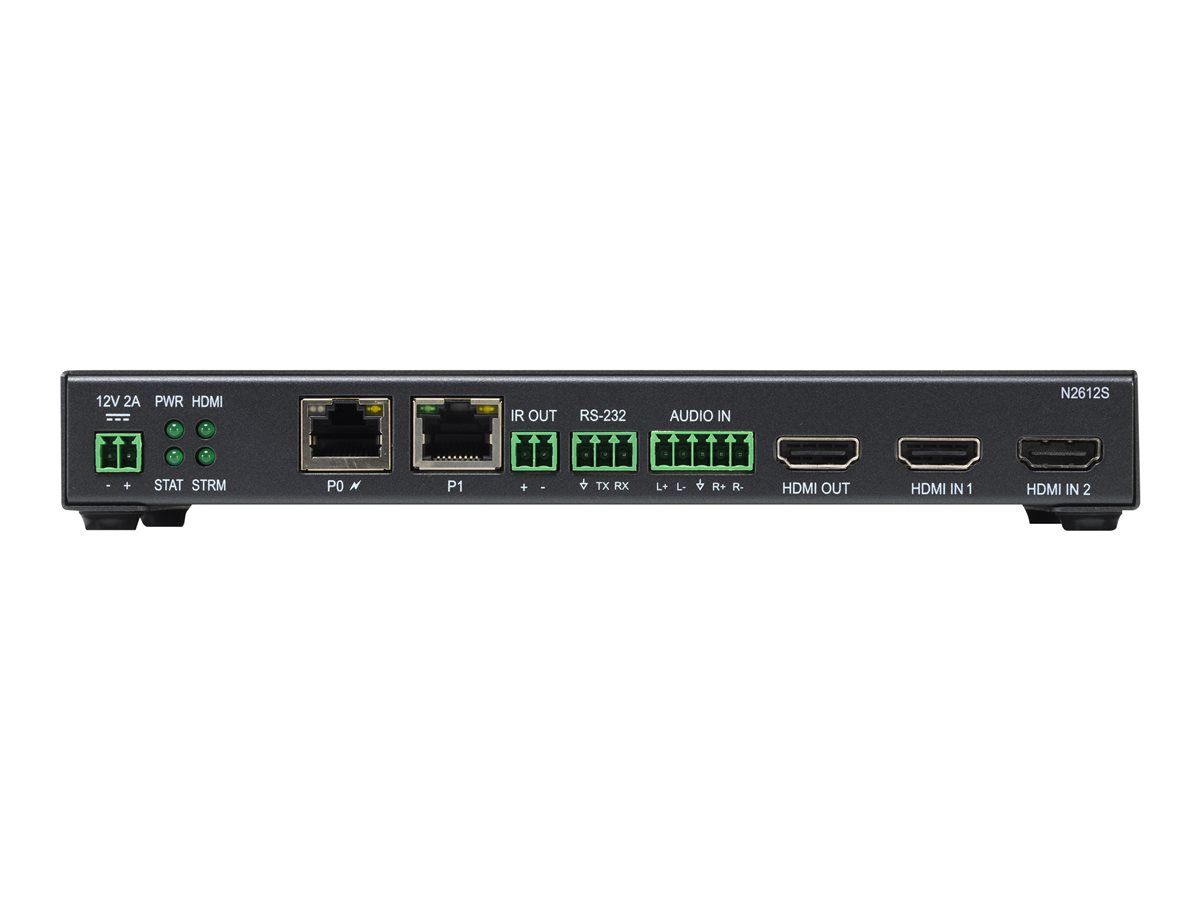

| Terminals | (2) x HDMI input - 19 pin HDMI Type A ¦ (2) x network - RJ-45 ¦ (1) x HDMI loop output - 19 pin HDMI Type A ¦ (1) x audio line-in - 5 pin Phoenix type ¦ (1) x USB 2.0 - Micro-USB Type B ¦ (1) x infrared input - 3 pin Phoenix type ¦ (1) x infrared output - 2 pin Phoenix type ¦ (1) x RS-232 - 3 pin Phoenix type |
| Studio & Production Equipment | |
| Features | 4K60 4:4:4 signal support, Power Over Ethernet support, H.264 codec support, dual stream recording, HDCP 2.2 compliant, LED indicators, EDID support |
