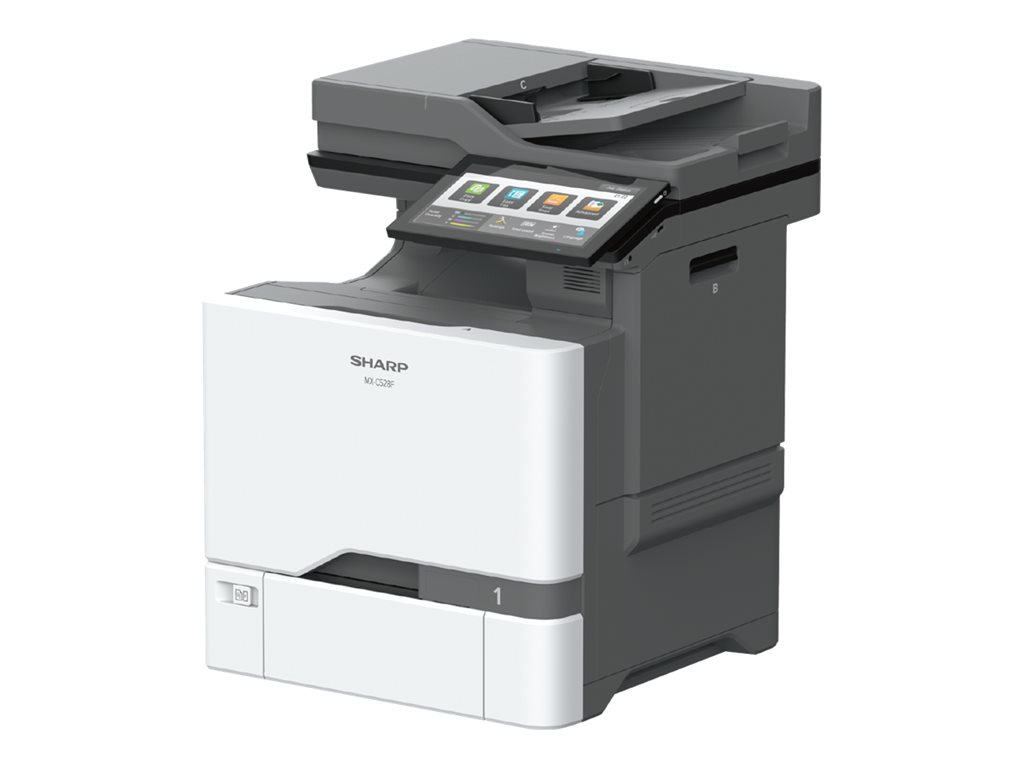

Multifunction printer - color - laser - Legal (8.5 in x 14 in) (original) - Legal (media) - up to 52 ppm (copying) - up to 52 ppm (printing) - 650 sheets - 33.6 Kbps - USB 2.0, Gigabit LAN, USB host, Wi-Fi(ac)
| Main Specifications | |
|---|---|
| Product Description | Sharp MX-C528F - multifunction printer - color |
| Device Type | Multifunction printer |
| Fax Type | Super G3 - plain paper |
| Printing Technology | Laser (color) |
| Max Copying Speed | Up to 52 ppm (mono) / up to 52 ppm (color) |
| Max Copying Resolution | Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (color) |
| Max Printing Speed | Up to 52 ppm (mono) / up to 52 ppm (color) |
| Max Printing Resolution | Up to 1200 x 1200 dpi (mono) / up to 1200 x 1200 dpi (color) |
| Max Fax Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JBIG, JBIG2, JPEG |
| Fax Resolutions | 200 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi |
| Scanning | 600 dpi |
| Display | 10" |
| Original Size | Legal (8.5 in x 14 in) (max) |
| Original Type | Sheets |
| Document Feeder Capacity | 100 sheets |
| Media Size | Legal (8.5 in x 14 in) (max) |
| Media Type | Envelopes, plain paper, recycled paper, heavy-weight paper, thin paper, glossy paper, punched paper, preprinted paper, colored paper, letterheaded paper, card stock, bond paper |
| Standard Media Capacity | 650 sheets |
| Max Media Capacity | 2850 sheets |
| Bypass Feeder Capacity | 100 sheets |
| Output Trays Capacity | 300 sheets |
| Automatic Duplexing | Yes (copying) Yes (printing) Yes (scanning) |
| Connection Availability | Yes |
| Interface | USB 2.0, Gigabit LAN, USB host, Wi-Fi(ac) |
| AirPrint Enabled | Yes |
| Office Machine Features | Darkness adjustment, Google Drive support, SharePoint Online support, OneDrive for Business support, Dropbox support, IPP printing, scan to e-mail, scan to folder, scan to FTP, embedded OCR |
| Power | AC 110-127 V (60Hz) |
| Dimensions (WxDxH) | 18.9 in x 20.9 in x 24.4 in |
| Weight | 87.08 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Printer Fonts | PCL x 94 ¦ PostScript x 163 |
| Device Type | Multifunction printer |
| Fax Type | Plain paper |
| Printing Technology | Laser - color |
| Display Diagonal Size | 10" |
| Display Color Support | Color |
| Display Features | Touch screen |
| Connection Availability | Yes |
| Interface | USB 2.0, Gigabit LAN, USB host, Wi-Fi(ac) |
| AirPrint Enabled | Yes |
| Office Machine Features | Darkness adjustment, Google Drive support, SharePoint Online support, OneDrive for Business support, Dropbox support, IPP printing, scan to e-mail, scan to folder, scan to FTP, embedded OCR |
| Memory | |
| Standard Memory | 2 GB |
| Hard Disk Drive | 128 GB |
| Miscellaneous | |
| First Copy Out Time B/W | 5.7 sec |
| First Copy Out Time Color | 6.3 sec |
| Consumables Included | 1 x toner cartridge (black) ¦ 1 x toner cartridge (cyan) ¦ 1 x toner cartridge (magenta) ¦ 1 x toner cartridge (yellow) |
| Compliant Standards | IPv4, IPv6, EU RoHS |
| Power | |
| Voltage Required | AC 110-127 V (60Hz) |
| Power Consumption Operational | 0.69 kW |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 90 °F |
| Humidity Range Operating | 15 - 80% RH |
| Connections | |
| Interfaces | 1 x USB 2.0 - 4 pin USB Type B ¦ 2 x USB host - 4 pin USB Type A ¦ 1 x Gigabit LAN - RJ-45 |
| Security Protocols & Features | IPsec, 802.1x, IP filtering, MAC address filtering, TLS, AES-256, Kerberos, PAP, POP3, LDAP |
| Operating System Support | Apple Mac OS X 10.15.x, MS Windows Server 2012, MS Windows Server 2016, MS Windows Server 2019, MS Windows Server 2022, Windows 10, Windows 11, Windows 8.1, UNIX, Linux, Citrix |
| Software Included | Drivers & utilities |
| Copying | |
| Max Copying Speed | Up to 52 ppm (mono) / up to 52 ppm (color) |
| Max Copying Resolution | Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (color) |
| Max Document Enlargement | 400% |
| Max Document Reduction | 25% |
| Maximum Copies | 9999 |
| Exposure Control | Automatic, manual |
| Exposure Modes | Text, photo, text and photo |
| Automatic Duplexing | Yes |
| Copying Features | Electronic sorting, Auto Paper Selection (APS), Auto Magnification Sensing (AMS), remove background, mirror image, negative image, edge-to-edge, Job Build, cover pages, Edge Erase, margin shift, form overlay |
| Printing | |
| Max Printing Resolution | Up to 1200 x 1200 dpi (mono) / up to 1200 x 1200 dpi (color) |
| Max Printing Speed | Up to 52 ppm (mono) / up to 52 ppm (color) |
| Printer Drivers / Emulations | PCL 6, PostScript 3, JPEG, TIFF, XPS |
| Automatic Duplexing | Yes |
| Scanning | |
| Automatic Duplexing | Yes |
| Optical Resolution | 600 dpi |
| Fax Machine | |
| Compatibility | Super G3 |
| Max Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JBIG, JBIG2, JPEG |
| Fax Resolutions | 200 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi |
| PC Faxing | Yes |
| Fax Machine Features | |
| Features | Color faxing, fax activity reports, out of paper reception, Duplex Fax, fax forwarding, automatic redialing, server fax, delayed sending |
| Document & Media Handling | |
| Max Original Size | Legal (8.5 in x 14 in) |
| Supported Original Sizes | Legal (8.5 in x 14 in) |
| Original Type | Sheets |
| Document Feeder Capacity | 100 sheets |
| Max Media Size | Legal |
| Min Media Weight (lb) | 16 lbs (Bond) |
| Max Media Weight (lb) | 90 lbs (Cover) |
| Supported Media Type | Envelopes, plain paper, recycled paper, heavy-weight paper, thin paper, glossy paper, punched paper, preprinted paper, colored paper, letterheaded paper, card stock, bond paper |
| Supported Media Sizes | Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in) |
| Standard Media Capacity | 650 sheets |
| Max Media Capacity | 2850 sheets |
| Bypass Feeder Capacity | 100 sheets |
| Output Trays Capacity | 300 sheets |
| Document & Media Handling Details | Paper cassette - 550 sheets - Legal (8.5 in x 14 in) ¦ Bypass tray - 100 sheets - Legal (8.5 in x 14 in) ¦ DSPF - 100 sheets - Legal (8.5 in x 14 in) ¦ Output tray - 300 sheets |
| Speed Details | Copying: up to 52 ppm (Letter A) - B/W ¦ Copying: up to 52 ppm (Letter A) - color ¦ Printing: up to 52 ppm (Letter A) - B/W ¦ Printing: up to 52 ppm (Letter A) - color ¦ Scanning: up to 104 ipm |
| Dimensions & Weight | |
| Width | 18.9 in |
| Depth | 20.9 in |
| Height | 24.4 in |
| Weight | 87.08 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
