DLP projector - 4000 ANSI lumens - WXGA (1280 x 800) - 16:10 - 720p
| Main Specifications | |
|---|---|
| Product Description | ViewSonic PS502W - DLP projector |
| Device Type | DLP projector - 720p |
| Built-in Devices | Keypad |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 15000:1 (dynamic) |
| Resolution | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lamp Life Cycle | Up to 4000 hour(s) - normal mode ¦ Up to 12000 hour(s) - economic mode |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
| Speakers | Speaker(s) - internal |
| Power | AC 100/240 V (50 - 60 Hz) |
| Power Consumption Operational | 295 Watt |
| Dimensions (WxDxH) | 12.2 in x 9.2 in x 4.5 in |
| Weight | 6.33 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector - 720p |
| Built-in Devices | Keypad |
| Expansion / Connectivity | |

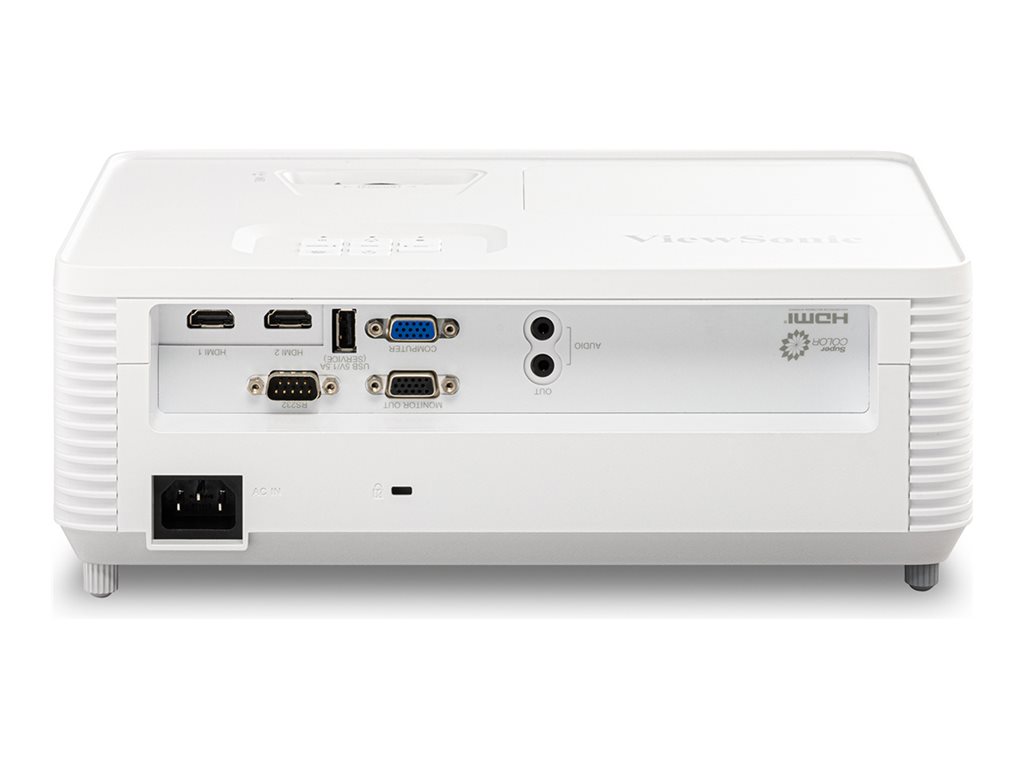

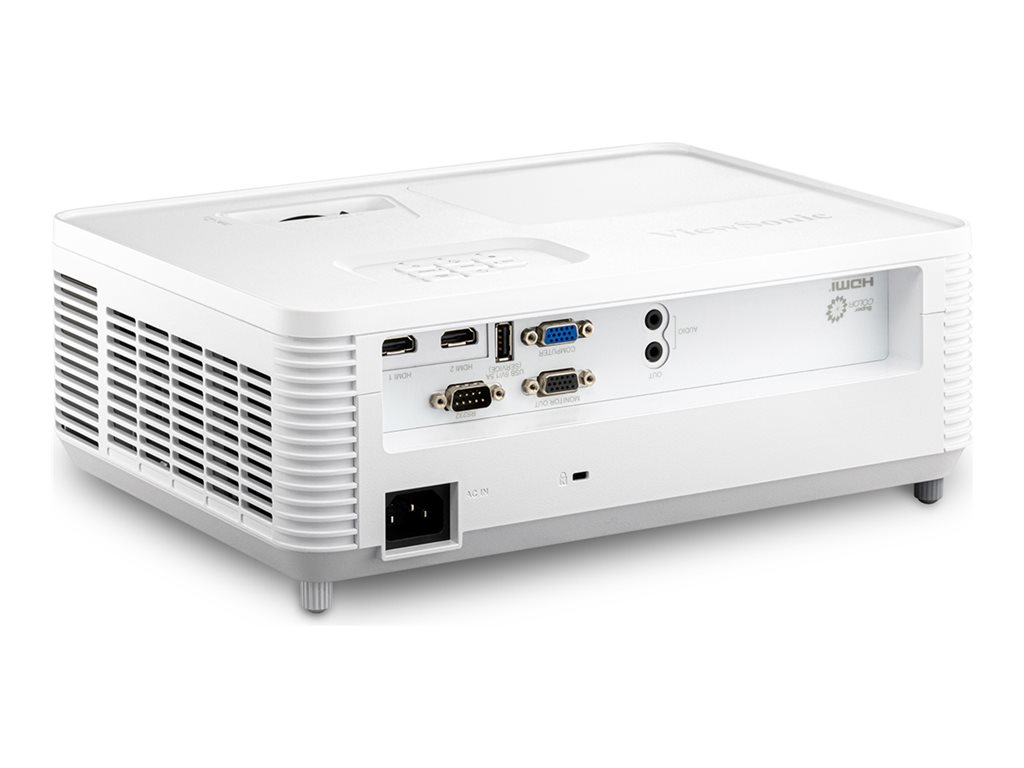

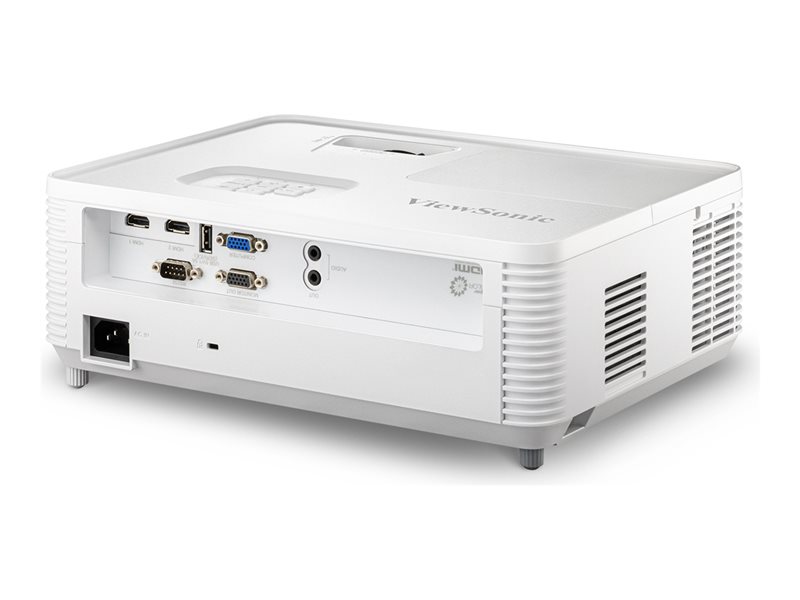

| Interfaces | 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 2 x HDMI - 19 pin HDMI Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - express exchange - 1 year |
| Miscellaneous | |

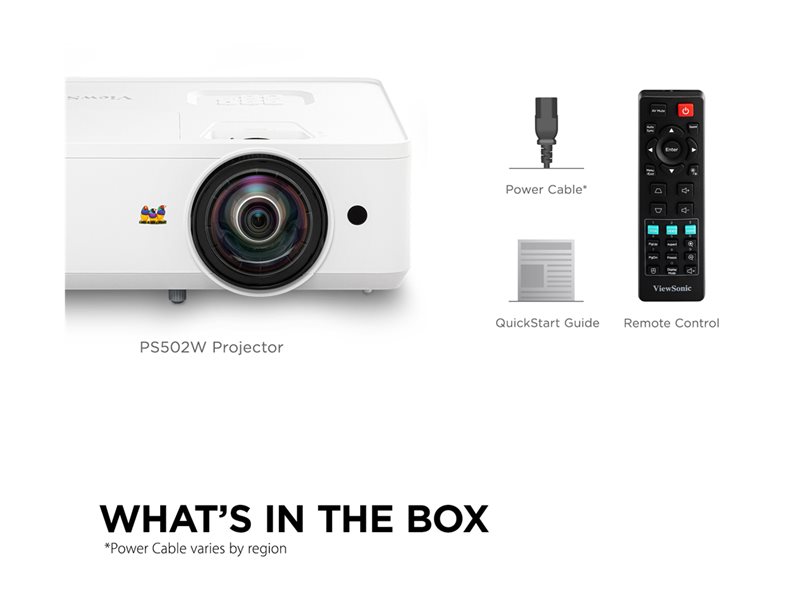

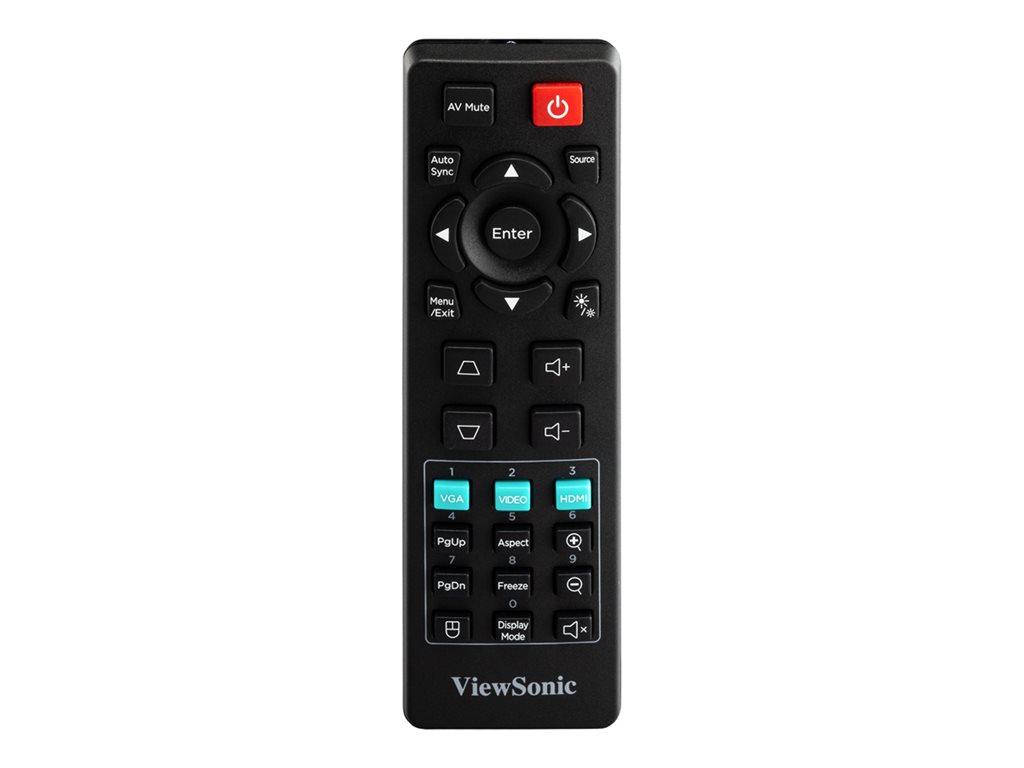

| Included Accessories | Remote control |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | cTUVus, HDCP 1.4 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100/240 V (50 - 60 Hz) |
| Power Consumption Operational | 295 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video Input | |
| Video Interfaces | VGA, HDMI |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
| Dimensions & Weight | |
| Width | 12.2 in |
| Depth | 9.2 in |
| Height | 4.5 in |
| Weight | 6.33 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.7 in |
| Shipping Depth | 13.3 in |
| Shipping Height | 6.6 in |
| Shipping Weight | 8.99 lbs |
| Projector | |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 15000:1 (dynamic) |
| Image Size | 59.1 in - 299 in |
| Projection Distance | 2.2 ft - 11 ft |
| Throw Ratio | 0.52:1 |
| Resolution | WXGA - WXGA (1280 x 800) (native) / 1920 x 1080 (resized) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Life Cycle | Up to 4000 hour(s) - normal mode ¦ Up to 12000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction |
| Features | SuperEco, 6-segment color wheel, Vivid Color Control, upgradable firmware, Short Throw Technology |
| Lens | |
| Keystone Correction Direction | Vertical |
| Vertical Keystone Correction | -19 / +19 |
| Speakers | |
| Type | Internal |
| Sound Output Mode | Mono |
| Output Power / Channel | 16 Watt |
