Video/audio extender - HDMI, DisplayPort - over CAT 6 - 9 ports - up to 230 ft - TAA Compliant
| Main Specifications | |
|---|---|

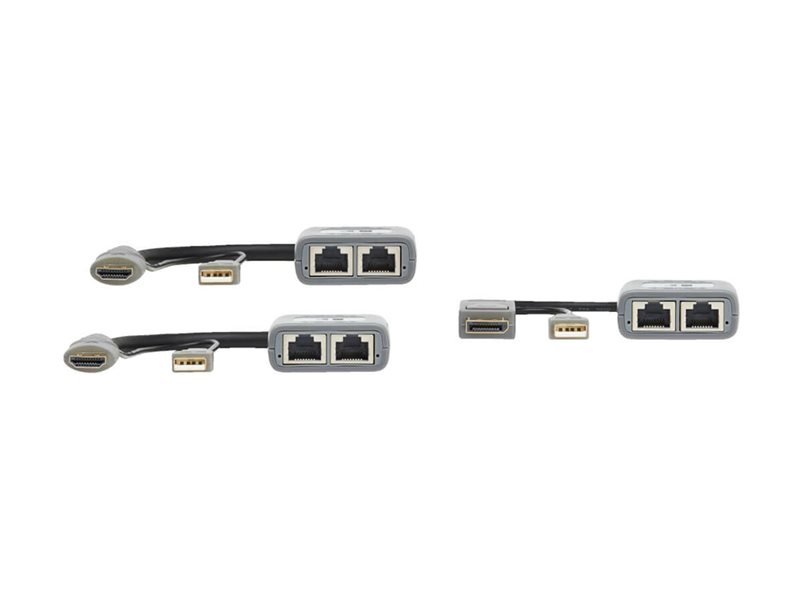

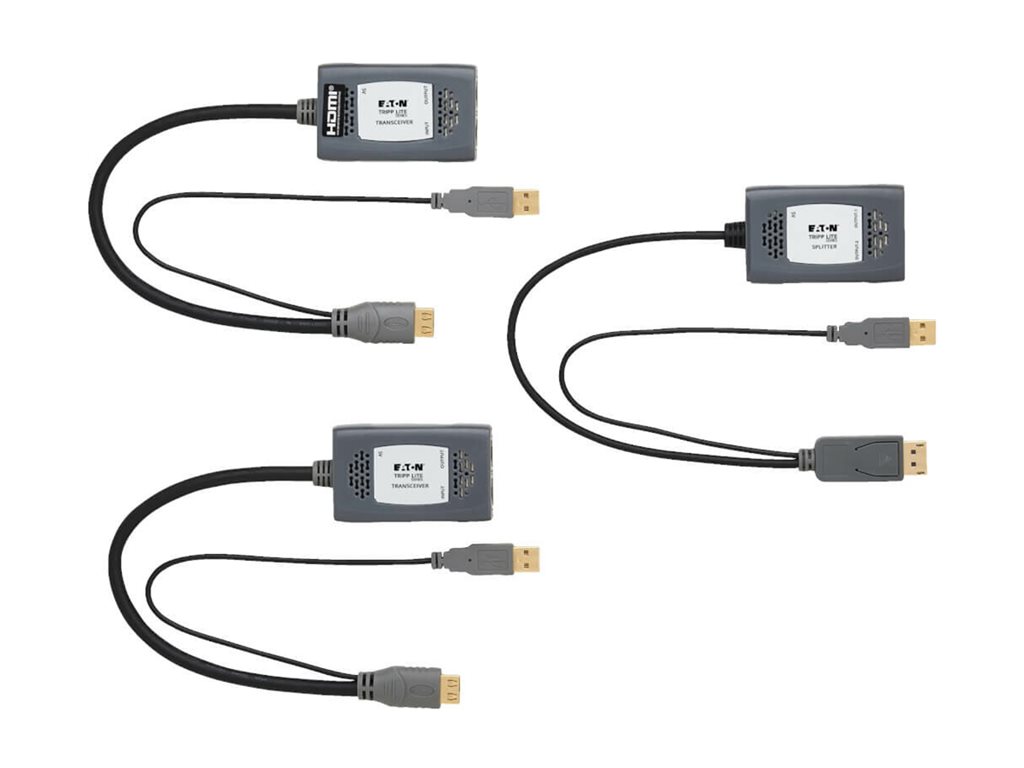

| Product Description | Eaton Tripp Lite Series 2-Port DisplayPort to HDMI over Cat6 Extender Kit, Pigtail Transmitter/2x Receivers, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA - video/audio extender - DisplayPort, HDMI - TAA Compliant |
| Device Type | Video/audio extender |
| Ports Qty | 9 |
| Form Factor | External |
| Data Link Protocol | DisplayPort, HDMI |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 230 ft |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: B127U-110-PD, B127U-110-PH, U280-W01-QC3-1 |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x DisplayPort (input) male ¦ 2 x HDMI (output) - 19 pin HDMI Type A male ¦ 4 x network (output) - RJ-45 female ¦ 2 x network (input) - RJ-45 female ¦ 3 x USB (power only) (output) - Type A male ¦ 3 x micro-USB (power input) female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

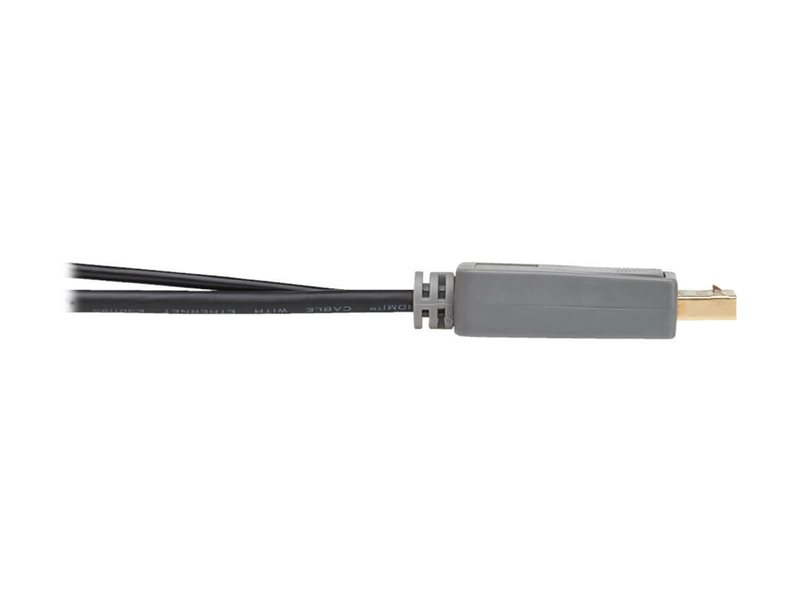

| Cables Included | Video / audio cable - 1 ft |
| Compliant Standards | Plug and Play, ICES, NOM, FCC Part 15 Class B, REACH, RoHS3, UKCA, WEEE |
| TAA Compliant | Yes |
| Networking | |
| Ports Qty | 9 |
| Connectivity Technology | Wired |
| Data Link Protocol | DisplayPort, HDMI |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, data |
| Features | 4:4:4 chroma subsampling support, 4:4:0 chroma subsampling support, 4:2:0 chroma subsampling support, DTS-HD support, Dolby TrueHD support, 7.1 channel audio support, HDR support, daisy-chaining support, 3D support, 36-bit Deep Color support, EDID mode, unidirectional broadcasting mode, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, plastic housing, zero latency, cascadable |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 1.9 in x 3 in x 0.7 in / 8.8 oz ¦ Receiver: 1.9 in x 3 in x 0.7 in / 8.8 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.2 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 22.56 oz |
| Compatibility Information | |
| Designed For | P/N: B127U-110-PD, B127U-110-PH, U280-W01-QC3-1 |
