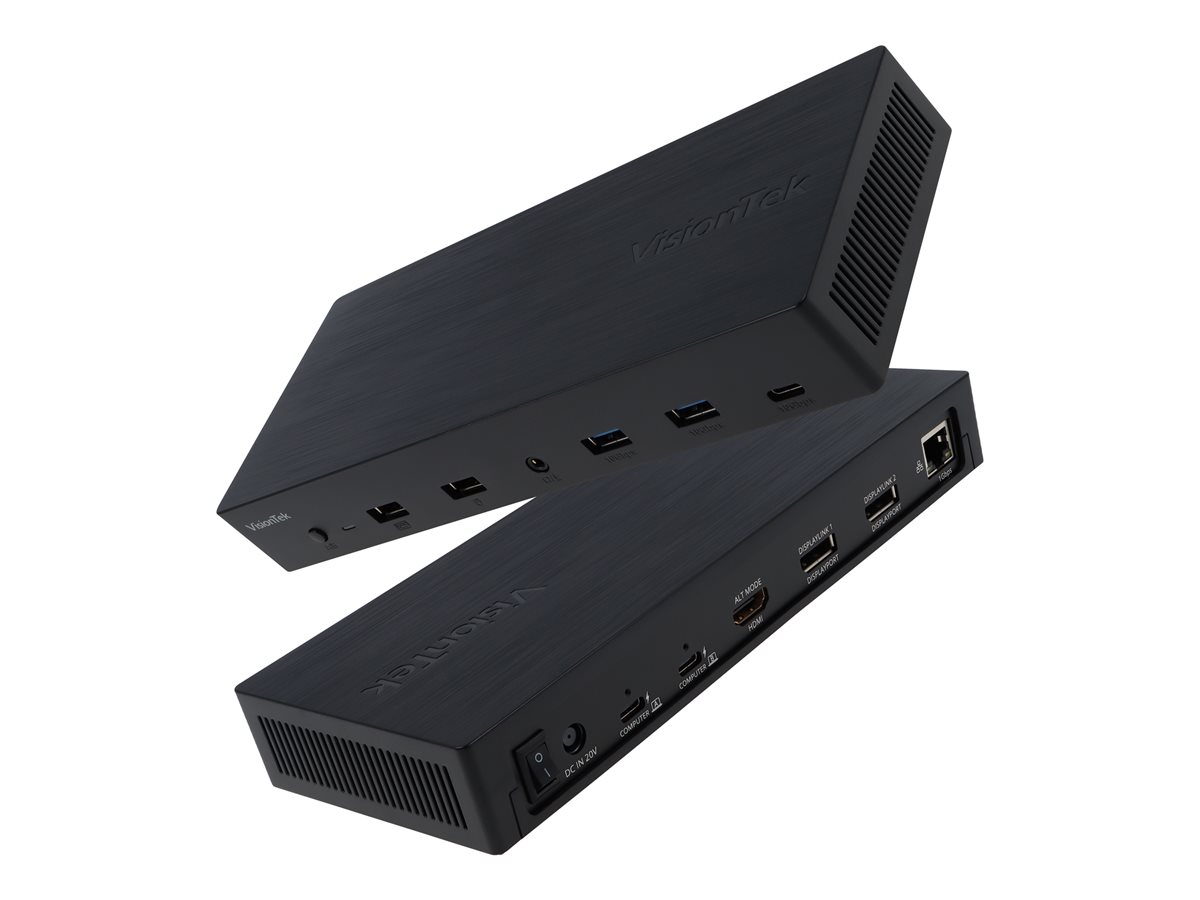

Docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 2 x DP, HDMI - 1GbE - 230 watt
| Main Specifications | |
|---|---|
| Product Description | VisionTek VT4950 KVM - docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 2 x DP, HDMI - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 / Thunderbolt 4 |
| Video Interfaces | 2 x DP, HDMI |
| Dimensions (WxDxH) | 8.8 in x 3.6 in x 1.1 in |
| Weight | 13.68 oz |
| Networking | Gigabit Ethernet |
| Power | Power adapter 20 V 230 watt Power Provided |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Product Type | Docking station |
| Width | 8.8 in |
| Depth | 3.6 in |
| Height | 1.1 in |
| Weight | 13.68 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x USB-A - 9 pin USB Type A ¦ 2 x USB-C (host) - 24 pin USB-C ¦ 2 x USB-A 2.0 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm ¦ 1 x network - RJ-45 ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x USB-C 3.2 Gen 2 (15 W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years with product registration (within 30 days of purchase) |
| Miscellaneous | |
| Cables Included | 2 x USB-C 3.2 Gen 2 cable - external - 3.3 ft |
| Features | DisplayPort Alt Mode, security lock slot (cable lock sold separately), 100W power delivery, wake on LAN, MAC address pass-through, Preboot Execution Environment (PXE) support |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayLink certified, DisplayPort 1.2 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | 20 V |
| Power Provided | 230 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 4096 x 2160 - 60 Hz (Triple Display) |
| System Requirements | |
| OS Required | Microsoft Windows 7 / 8.1 / 10 / 11, Apple MacOS X 10.x or later, Google Chrome OS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 5.4 in |
