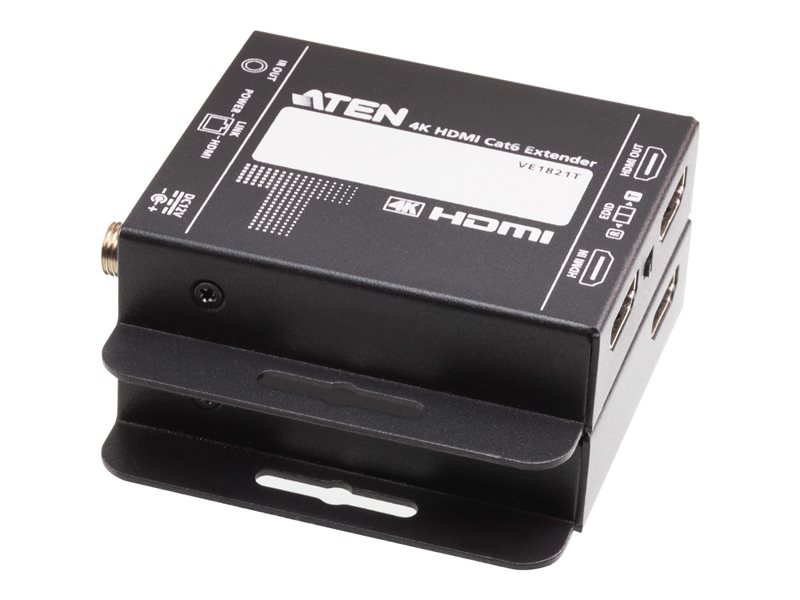

Video/audio/infrared/power extender - over CAT 5e/6 - up to 131 ft
| Main Specifications | |
|---|---|
| Product Description | ATEN VE1821 - video/audio/infrared/power extender |
| Device Type | Video/audio/infrared/power extender |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 131 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | DC 12 V |
| Dimensions (WxDxH) | 2.7 in x 3.1 in x 0.6 in |
| Weight | 4.23 oz |
| General | |
| Device Type | Video/audio/infrared/power extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (transmitter input) - Type A female ¦ 1 x HDMI (transmitter output) - Type A female ¦ 1 x HDMI (receiver output) - Type A female ¦ 1 x IR (transmitter output) - mini jack female ¦ 1 x IR (receiver input) - mini jack female ¦ 1 x power / control (receiver) - RJ-45 female - 0.87 W ¦ 1 x management - RJ-45 female |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters, IR receiver cable, power adapter, IR emitter cable |
| Compliant Standards | Plug and Play, ESD |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 30 Hz |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 131 ft |
| Features | Cascadable, 3D support, 4K resolution support, metal housing, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, 4:4:4 chroma subsampling support, Deep Color support, EDID mode |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 3.1 in |
| Height | 0.6 in |
| Weight | 4.23 oz |
