85" Diagonal Class BZ40L Series LED-backlit LCD display - digital signage - Android TV - 4K UHD (2160p) 3840 x 2160 - HDR - Direct LED
| Main Specifications | |
|---|---|
| Product Description | Sony Bravia Professional Displays FW-85BZ40L BZ40L Series - 85" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1393029 |
| Diagonal Class | 85" |
| Commercial Use | Yes - digital signage |
| Platform | Android TV |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Input Video Formats | 480p, 720p, 1080i, 1080p, 4K UHD (3840 x 2160), DCI 4K (4096 x 2160) |
| HDR Format | HDR10, Dolby Vision |
| HDR Technology | Hybrid Log-Gamma (HLG) |
| Frame Rate & Enhancement Technology | Motionflow XR 240 technology, 60 Hz Native Refresh Rate |
| Video Interface | Composite, HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, LAN |
| Technology | VA |
| LCD Backlight Technology | Direct LED frame dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Software Clock, IPTV, HTML5 support, Multicast ready, HDMI auto wake-up, BRAVIA Signage Free (BSF), Multi Display Setting (MDS) |
| Picture Enhancements | 4K X-Reality PRO Engine, 92% DCI-P3 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Energy Class | Class F |
| Power Consumption Operational | 373 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 74.8 in x 2.8 in x 42.9 in |
| Weight | 98.1 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1393029 |
| Energy Class | Class F |
| Energy Class (HDR) | Class G |
| Power Consumption Operational | 373 watt |
| Power Consumption SDR (On mode) | 151 kWh/1000h |
| Power Consumption HDR (On mode) | 202 kWh/1000h |
| Diagonal Class | 85" |
| Commercial Use | Yes - digital signage |
| Series | BZ40L Series |
| Platform | Android TV |
| Operating System | Android TV |
| HDR Capable | Yes |
| HDR Format | HDR10, Dolby Vision |
| HDR Technology | Hybrid Log-Gamma (HLG) |
| Video Processor | 4K HDR X1 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | Composite, HDMI |
| HDMI Ports Qty | 4 ports |
| Modes | Portrait mode, power saving mode, Pro Mode |
| Picture Enhancements | 4K X-Reality PRO Engine, 92% DCI-P3 color gamut |
| Dimensions | Without stand |
| Width | 74.8 in |
| Depth | 2.8 in |
| Height | 42.9 in |
| Weight | 98.1 lbs |
| Miscellaneous | |
| Compliant Standards | CEC, HDCP 2.3 |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 watt |
| Features | On/off timer |
| Display | |
| LCD Display Technology | VA |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | Motionflow XR 240 technology, 60 Hz Native Refresh Rate |
| LCD Backlight Technology | Direct LED - frame dimming |
| Coating | Deep black non-glare, 58% haze |
| Image Contrast Ratio | 6000:1 |
| Dynamic Contrast Ratio | 500000:1 |
| Brightness | 650 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 15.9 ms |
| Commercial Features | Software Clock, IPTV, HTML5 support, Multicast ready, HDMI auto wake-up, BRAVIA Signage Free (BSF), Multi Display Setting (MDS) |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Dynamic Backlight Control, sleep timer, Chromecast built-in, Apple AirPlay support, Triluminos Pro Display |
| Connections | |

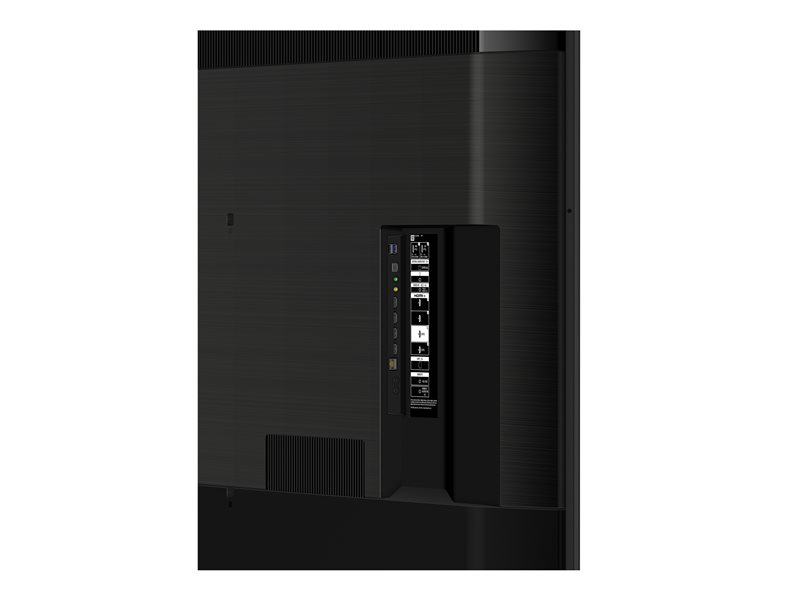

| Connector Type | RS-232C ¦ 4 x HDMI - side ¦ Composite video input - side ¦ Audio input - side ¦ 2 x USB - side ¦ LAN - side ¦ Digital audio output (optical) - side |
| Video Features | |
| Input Video Formats | 480p, 720p, 1080i, 1080p, 4K UHD (3840 x 2160), DCI 4K (4096 x 2160) |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Down-firing Speaker |
| Speakers | 2 x speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 80.2 in |
| Depth (Shipping) | 10.2 in |
| Height (Shipping) | 48.8 in |
| Weight (Shipping) | 136.69 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN |
| LAN Protocol | Ethernet |
| Connect & Share | Wi-Fi Direct, IP Control |
| Application Store | Google Play |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, Motion-JPEG, Xvid, WMV, ASF, AVI, MKV, MOV, AVCHD, TS, AVC, 3GPP, PS, VC-1, HEVC, VP8, XAVCS, HDV |
| Supported Audio Formats | MP3, WMA, WAV, AAC, FLAC (Free Lossless Audio Codec), LPCM, ASF |
| Supported Pictures Formats | JPEG |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 32 GB |
