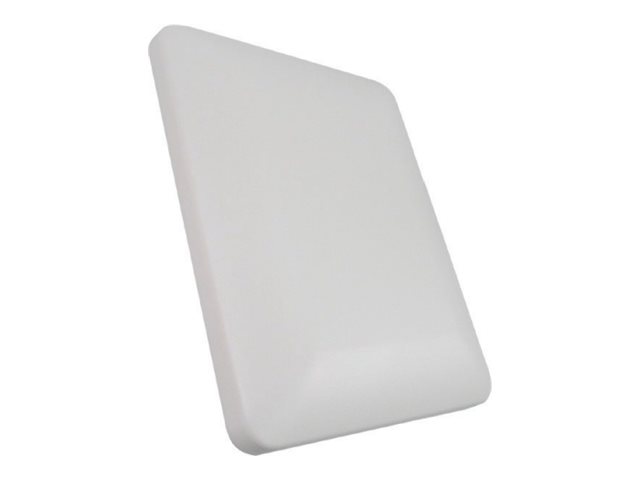

Antenna - 35° - Wi-Fi - 14 dBi - directional - pole mount, wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks antenna - 35° |
| Product Type | Antenna - 35° |
| Package Content | Mount hardware |
| Dimensions (WxDxH) | 9 in x 2 in x 10.2 in |
| Weight | 2.77 lbs |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Pole mount, wall-mountable |
| Frequency Range | 5150 - 7125 MHz |
| Gain | 14 dBi |
| Directivity | Directional |
| General | |
| Product Type | Antenna - 35° |
| Package Content | Mount hardware |
| Width | 9 in |
| Depth | 2 in |
| Height | 10.2 in |
| Weight | 2.77 lbs |
| Miscellaneous | |
| Features | Slant +/- 45° polarization, 4x4 antenna chains, max power 5 Watts |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Cabling & Wiring | |
| Connector Provided | 4 x N connector female |
| Antenna | |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Pole mount, wall-mountable |
| Frequency Range | 5150 - 7125 MHz |
| Gain | 14 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Impedance | 50 Ohm |
