Wireless router - WWAN 2-port switch - 1GbE - Wi-Fi 5 - Dual Band - 3G, 4G
| Main Specifications | |
|---|---|

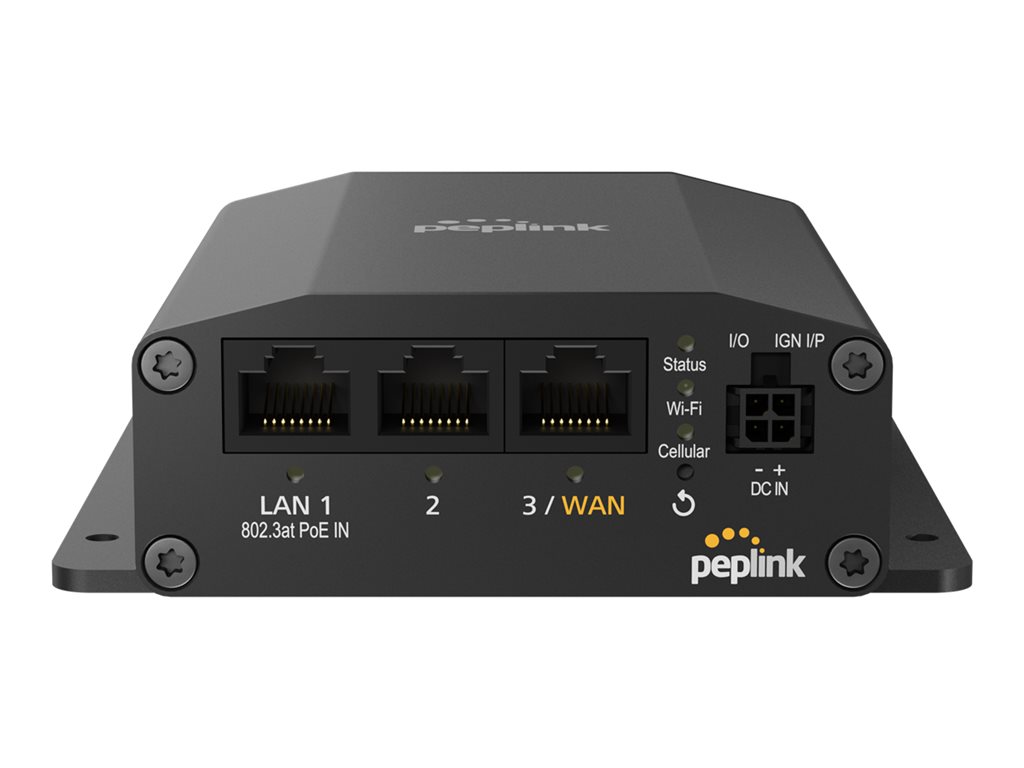

| Product Description | Pepwave MAX BR1 Mini - wireless router - WWAN - Wi-Fi 5 - 3G, 4G - desktop |
| Device Type | Wireless router - wireless cellular modem - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Cellular Protocol | HSPA+, LTE |
| Generation | 3G, 4G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B66, LTE B41, LTE B14, LTE B42, LTE B43, LTE B48, LTE B71, HSPA+ B2, HSPA+ B4, HSPA+ B5 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | SpeedFusion throughput: 80 Mbps ¦ SpeedFusion throughput (256-bit AES): 20 Mbps |
| Capacity | Number of SpeedFusion peers: 2 (maximum 5) ¦ Recommended users: 1-60 ¦ SSIDs total: 16 ¦ IPSec tunnels: 5 ¦ Maximum PPTP/L2TP/OpenVPN users: 3 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTPS |
| Features | NAT support, load balancing, VLAN support, Syslog support, DoS attack prevention, IPv6 support, High Availability, DHCP server, DNS proxy, port forwarding, e-mail notification, Captive Portal, DHCP reservation, PSK, Advanced QoS, 2x2 MIMO technology, SIP ALG, Ignition Sense, PPTP VPN server, drop-in mode |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3at, UPnP |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4.2 in x 4.9 in x 1.4 in |
| Weight | 15.17 oz |
| Localization | North America |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | SpeedFusion throughput: 80 Mbps ¦ SpeedFusion throughput (256-bit AES): 20 Mbps |
| Capacity | Number of SpeedFusion peers: 2 (maximum 5) ¦ Recommended users: 1-60 ¦ SSIDs total: 16 ¦ IPSec tunnels: 5 ¦ Maximum PPTP/L2TP/OpenVPN users: 3 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTPS |
| Encryption Algorithm | 128-bit WEP, WPA, WPA2, 256-bit AES |
| Authentication Method | RADIUS, LDAP |
| Features | NAT support, load balancing, VLAN support, Syslog support, DoS attack prevention, IPv6 support, High Availability, DHCP server, DNS proxy, port forwarding, e-mail notification, Captive Portal, DHCP reservation, PSK, Advanced QoS, 2x2 MIMO technology, SIP ALG, Ignition Sense, PPTP VPN server, drop-in mode |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3at, UPnP, FCC, RoHS, E Mark, EN 61000, EN 61373, EN 50155, UL 121201 |
| Status Indicators | Status, Wi-Fi, cellular |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ Antenna: 2 x SMA - LTE ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 1 x SMA - GPS |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | GPS antenna, 2 x Wi-Fi antennas, 2 x LTE antennas |
| Localization | North America |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 13 watt |
| Software / System Requirements | |
| Software Included | Pepwave MAX Firmware |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | HSPA+, LTE |
| Generation | 3G, 4G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B66, LTE B41, LTE B14, LTE B42, LTE B43, LTE B48, LTE B71, HSPA+ B2, HSPA+ B4, HSPA+ B5 |
| Max Transfer Rate | 300 Mbps |
| Dimensions & Weight | |
| Width | 4.2 in |
| Depth | 4.9 in |
| Height | 1.4 in |
| Weight | 15.17 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 5 |
