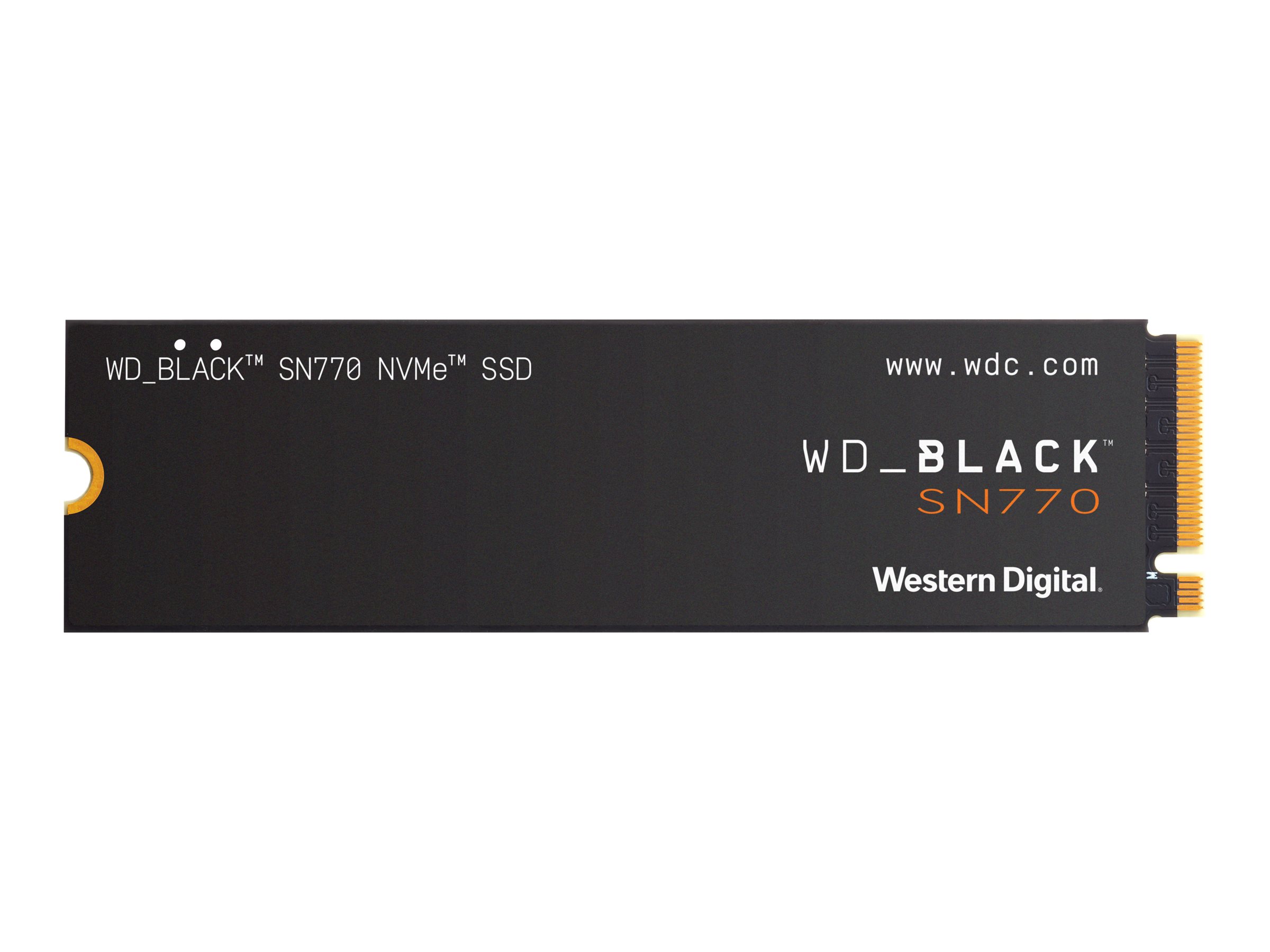

SSD - 500 GB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe)
| Main Specifications | |
|---|---|
| Product Description | WD_BLACK SN770 WDBBDL5000ANC - SSD - 500 GB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 500 GB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.19 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 500 GB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.19 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Package Type | Retail |
| Power | |
| Power Consumption | 65 mW (average) ¦ 3.3 mW (sleep) ¦ 4.7 Watt (maximum) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
| Performance | |
| SSD Endurance | 300 TB |
| Internal Data Rate | 5000 MBps (read) / 4000 MBps (write) |
| Maximum 4KB Random Write | 800000 IOPS |
| Maximum 4KB Random Read | 460000 IOPS |
| Reliability | |
| MTBF | 1,750,000 hours |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4 in |
| Shipping Depth | 0.9 in |
| Shipping Height | 5 in |
| Shipping Weight | 1.44 oz |
| Software & System Requirements | |
| OS Required | Windows 8.1 / 10, Windows 11 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 2280 |
