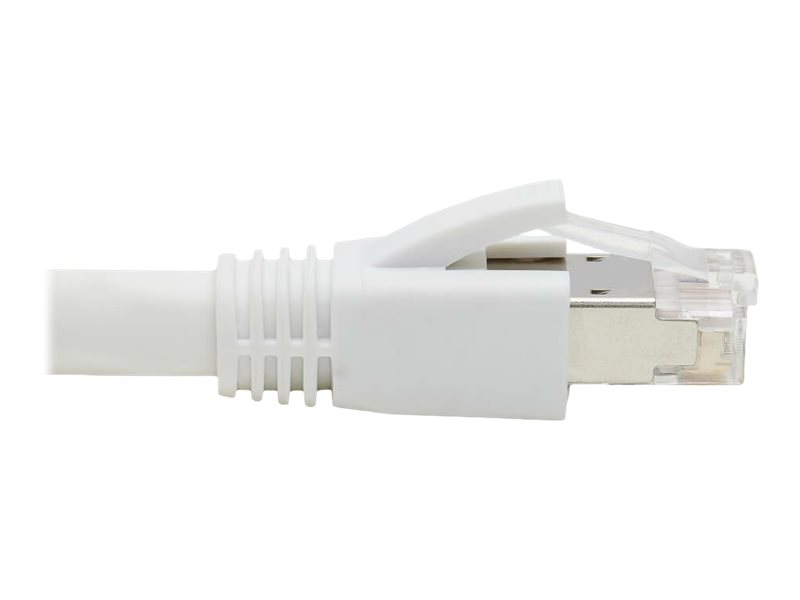

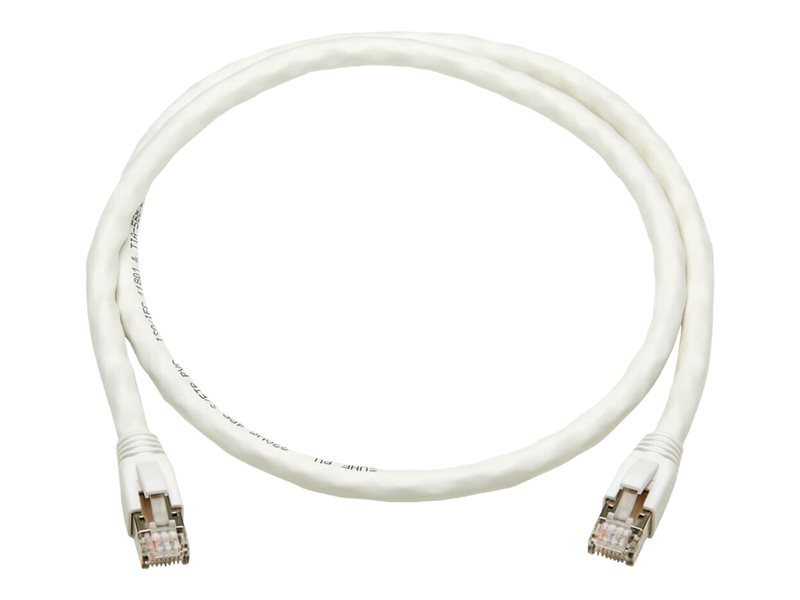

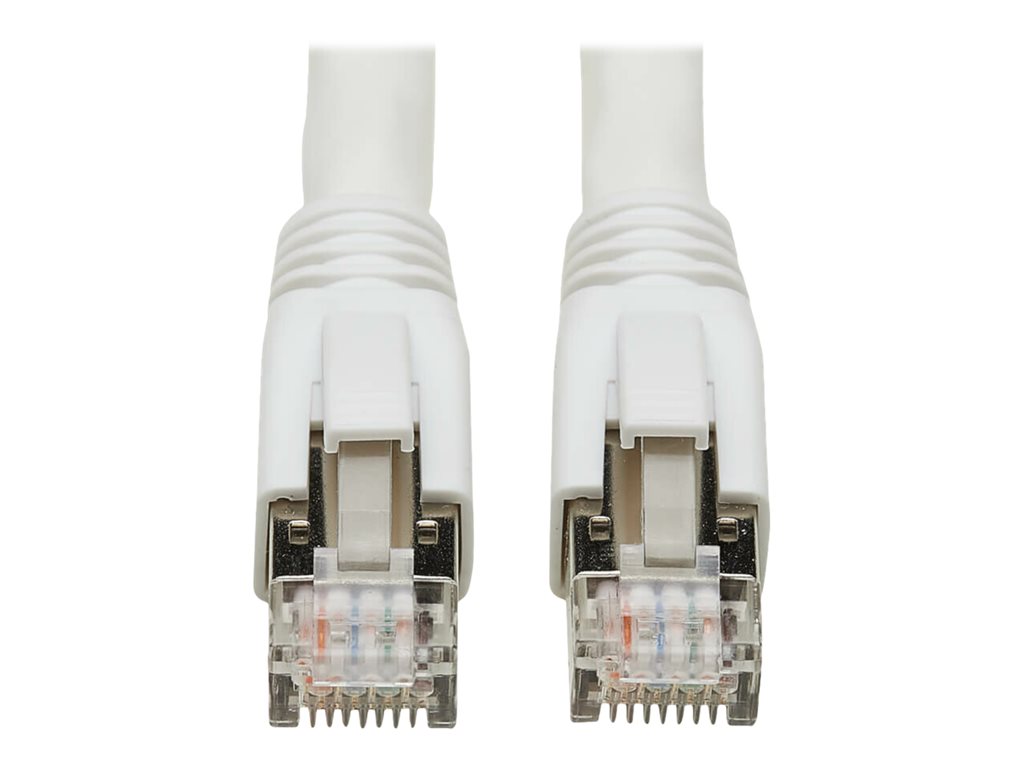

Patch cable - RJ-45 (M) to RJ-45 (M) - 3 ft - 0.2 in - SSTP - CAT 8 - booted, snagless, up to 40 Gbps data transfer rate, gold plated contacts - white
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Cat8 40G Snagless SSTP Ethernet Cable (RJ45 M/M), PoE, White, 3 ft. (0.9 m) - patch cable - 3 ft - white |
| Type | Patch cable - CAT 8 |
| Technology | SSTP |
| Wires per Cable | 8 wires |
| Features | Snagless, booted, gold plated contacts, up to 40 Gbps data transfer rate, EMI/RFI protection, strain relief, minimized Near-End Crosstalk (NEXT), 30 Watt maximum input power, copper conductor, Power over Ethernet (PoE) |
| Length | 3 ft |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | White |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 8 |
| Technology | SSTP |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 26 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Nickel |
| Features | Snagless, booted, gold plated contacts, up to 40 Gbps data transfer rate, EMI/RFI protection, strain relief, minimized Near-End Crosstalk (NEXT), 30 Watt maximum input power, copper conductor, Power over Ethernet (PoE) |
| Length | 3 ft |
| Diameter | 0.2 in |
| Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | EIA/TIA 568B, RoHS, REACH, UKCA, WEEE, IEEE 802.3at, UL 444, CAN/CSA C22.2 No. 214-17, CM, PoE+ - up to 1200 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.76 oz |
