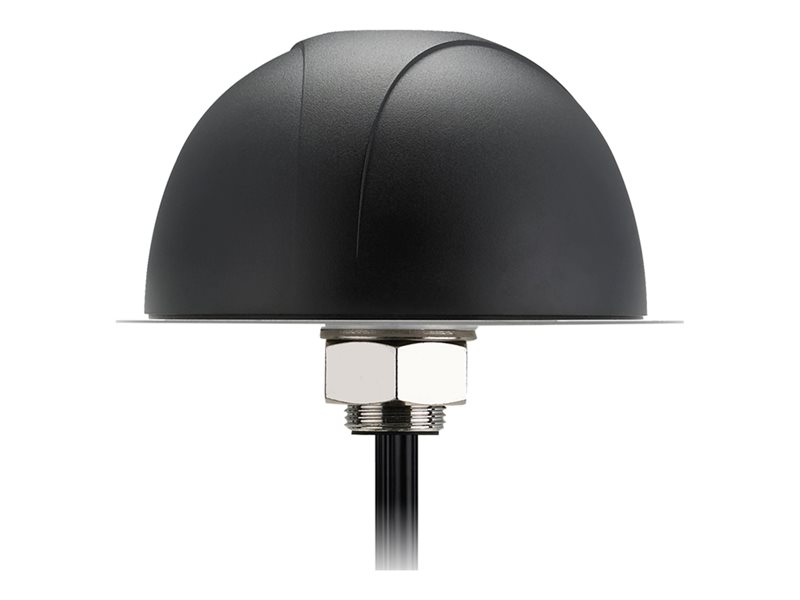

Antenna - navigation, cellular, Wi-Fi - omni-directional
| Main Specifications | |
|---|---|
| Product Description | Taoglas Pantheon MA752.B - antenna |
| Device Type | Antenna |
| Intended For | Navigation, cellular, Wi-Fi |
| Dimensions (WxDxH) | 5.7 in x 5.6 in x 3.2 in |
| Weight | 2.56 lbs |
| Compatibility | Wi-Fi, LTE, GPS, GLONASS, 4G, 3G, 2G, GALILEO, 5G |
| Frequency Range | 1575.42 MHz, 1602 MHz, 430 - 470 MHz, 617 - 960 MHz, 1427 - 1518 MHz, 1710 - 2200 MHz, 2400 - 2500 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz, 5.15 - 5.85 GHz |
| Directivity | Omni-directional |
| Features | MIMO technology, SAW filter, IP67, waterproof, right-hand circular polarization (RHCP), linear polarization |
| General | |
| Product Type | Antenna |
| Intended For | Navigation, cellular, Wi-Fi |
| Width | 5.7 in |
| Depth | 5.6 in |
| Height | 3.2 in |
| Weight | 2.56 lbs |
| Product Material | PC/ABS |
| Miscellaneous | |
| Cables Included | Antenna cable - 10 ft |
| Antenna | |
| Compatibility | Wi-Fi, LTE, GPS, GLONASS, 4G, 3G, 2G, GALILEO, 5G |
| Frequency Range | 1575.42 MHz, 1602 MHz, 430 - 470 MHz, 617 - 960 MHz, 1427 - 1518 MHz, 1710 - 2200 MHz, 2400 - 2500 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz, 5.15 - 5.85 GHz |
| Impedance | 50 ohm |
| Max Power | 3 watt |
| Directivity | Omni-directional |
| Features | MIMO technology, SAW filter, IP67, waterproof, right-hand circular polarization (RHCP), linear polarization |
| Connector Provided | |
| Type | 2 x antenna - SMA (male) ¦ GPS antenna - SMA (male) ¦ 2 x Wi-Fi antenna - RP-SMA (male) |
