Motherboard - SSI EEB - LGA6096 Socket - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

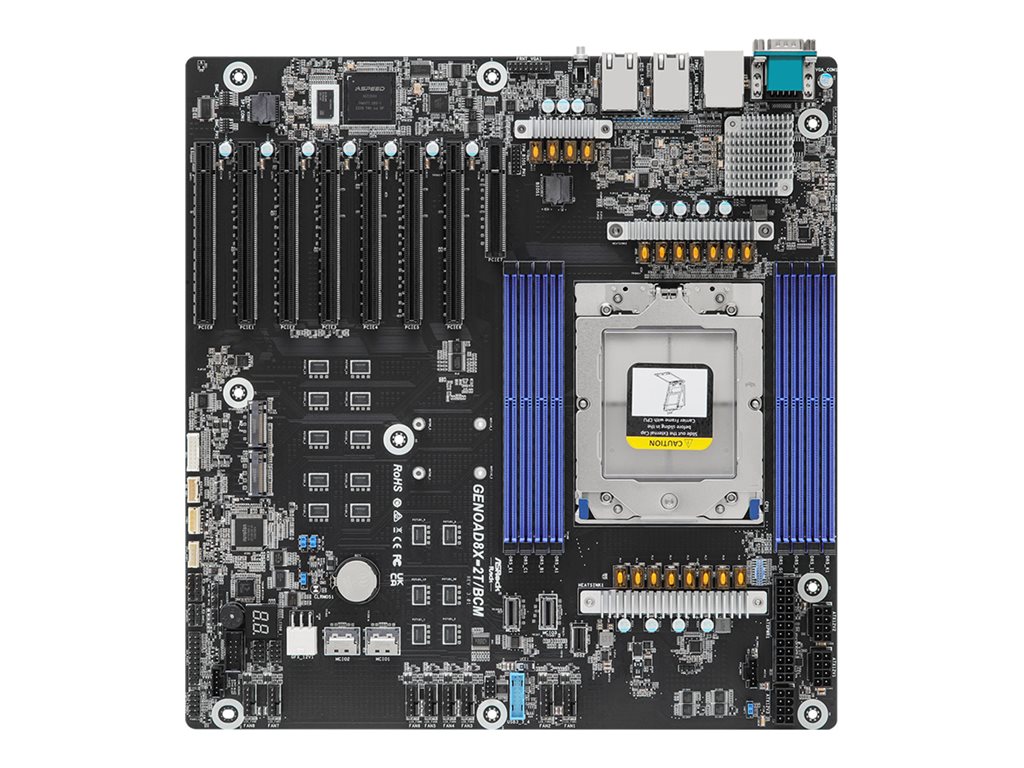

| Product Description | ASRock Rack GENOAD8X-2T/BCM - motherboard - SSI EEB - LGA6096 Socket |
| Product Type | Motherboard - SSI EEB |
| Processor Socket | 1 x LGA6096 Socket |
| Compatible Processors | EPYC 9004 series |
| Max RAM Size | 4096 GB |
| RAM Supported | 8 DIMM slots - DDR5 registered, 3DS-RDIMM |
| Storage Ports | 16 x SATA-600, 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| LAN | 2 x 10 Gigabit Ethernet, Gigabit Ethernet |
| General | |
| Product Type | Motherboard - SSI EEB |
| Processor Socket | LGA6096 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 9004 series |
| Expansion / Connectivity | |
| Expansion Slots | 8 x DIMM 288-pin ¦ 1 x CPU ¦ 7 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x8 ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 4 x PCIe 5.0 x4 (MCIO) |
| Storage Interfaces | SATA-600 / PCIe 5.0 -connectors: 1 x M.2 - 4 devices ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 5.0 -connectors: 12 x 7pin external SATA (via 3 x MCIO) |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x management ¦ 1 x serial |
| Internal Interfaces | 1 x serial - header ¦ 1 x speaker - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPI - header ¦ 1 x VGA |
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | IO shield, 2 x M.2 screws |
| Cables Included | MCIO x4 to 4 x SATA 6Gb/s cable |
| Width | 12.6 in |
| Depth | 13 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SPI BIOS flashing, ACPI 6.4 support, SMBIOS 3.5 support, PnP support |
| Hardware Monitoring | CPU core temperature, temperature detection, system voltage, CPU fan tachometer, fan control |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Realtek RTL8211F / Broadcom BCM57416 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| Supported RAM | |
| Max Size | 4096 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Registered or Buffered | Registered, 3DS-RDIMM |
