Motherboard - half-width - LGA6096 Socket - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required)
| Main Specifications | |
|---|---|

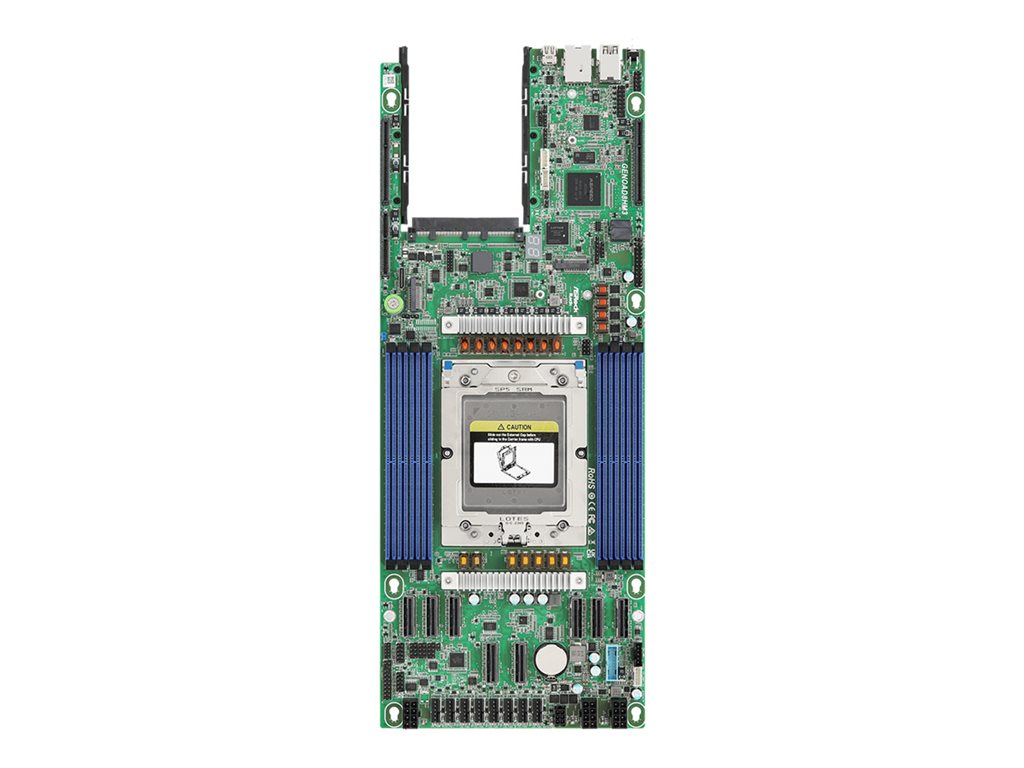

| Product Description | ASRock Rack GENOAD8HM3 - motherboard - half-width - LGA6096 Socket |
| Product Type | Motherboard - half-width |
| Processor Socket | 1 x LGA6096 Socket |
| Compatible Processors | EPYC 9004 series |
| Max RAM Size | 4.096 TB |
| RAM Supported | 8 DIMM slots - DDR5 |
| Storage Ports | 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - half-width |
| Processor Socket | LGA6096 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 9004 series |
| Expansion / Connectivity | |
| Expansion Slots | 8 x DIMM 288-pin ¦ 1 x CPU ¦ 2 x PCIe 5.0 x16 (MCIO) ¦ 7 x PCIe 5.0 x8 (MCIO) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 (OCP 3.0 module support) |
| Storage Interfaces | SATA-600 / PCIe 5.0 -connectors: 16 x 7pin external SATA (via 2 x MCIO) ¦ SATA-600 / PCIe 5.0 -connectors: 2 x M.2 ¦ ASMedia ASM1061R: SATA-600 -connectors: 1 x OCuLink - 2 devices |
| Interfaces | 1 x Mini DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x VGA - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 3 x 8-pin ATX12V connectors, 4-pin auxiliary power connector |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws |
| Width | 6.6 in |
| Depth | 17 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 3.5 support, PnP support, ACPI 6.4 support, IPMI support |
| Hardware Monitoring | Temperature detection, fan control, system voltage |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Realtek RTL8211F |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 4.096 TB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Features | Registered, 3DS registered |
