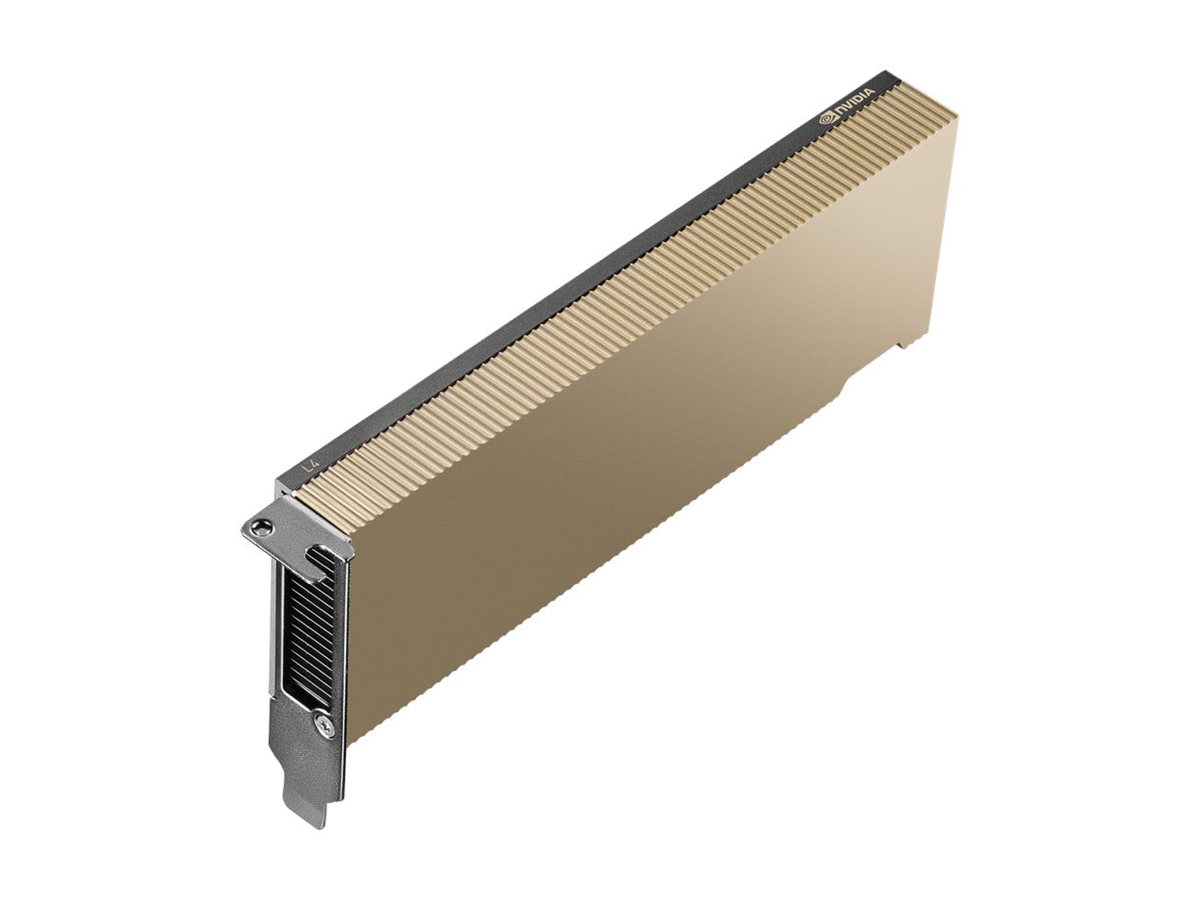

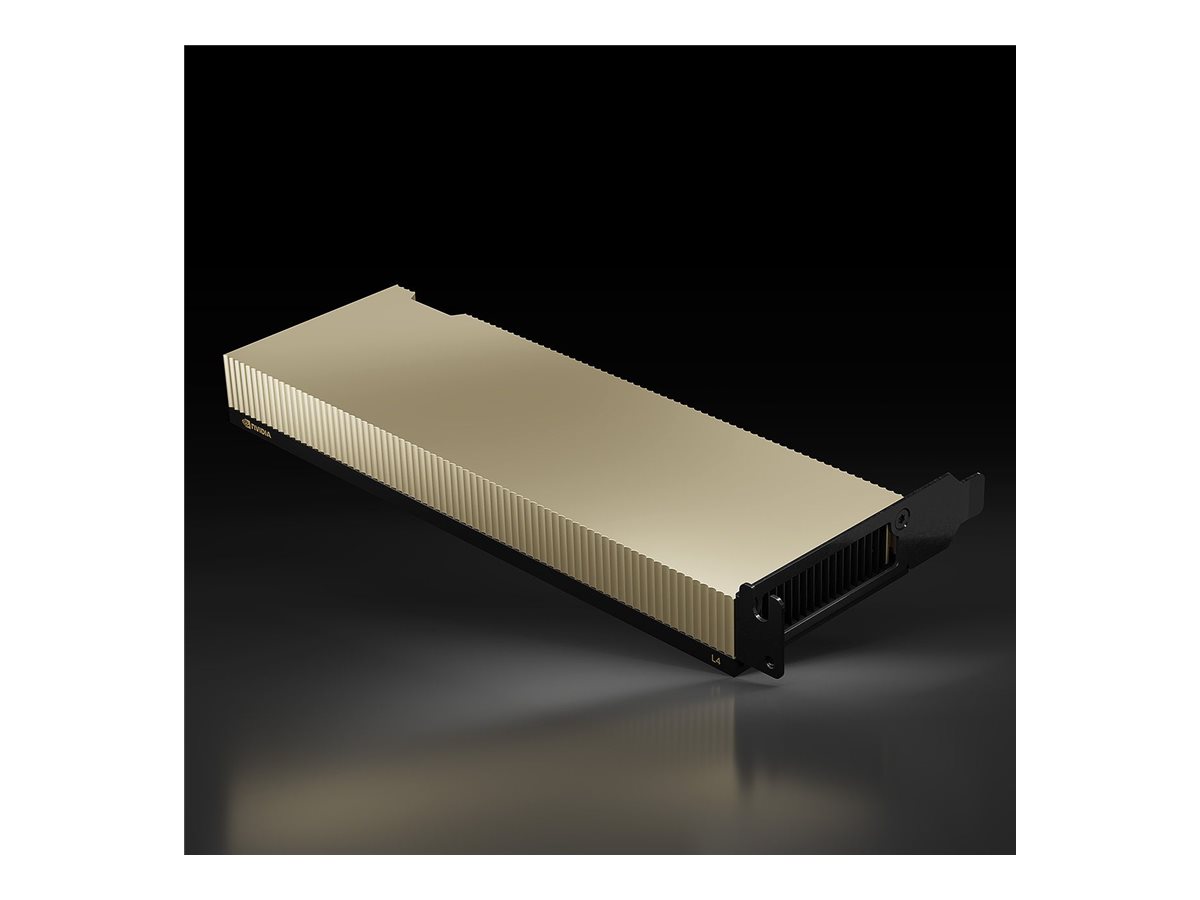

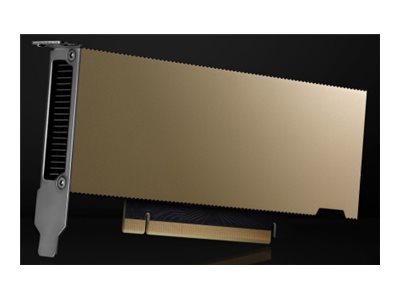

GPU computing processor - L4 - 24 GB GDDR6 - PCIe 4.0 x16 low profile - fanless
| Main Specifications | |
|---|---|
| Product Description | NVIDIA L4 - GPU computing processor - L4 - 24 GB |
| Device Type | GPU computing processor - low profile |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA L4 - up to |
| Memory | 24 GB GDDR6 |
| Core Clock | 795 MHz |
| Boost Clock | 2040 MHz |
| Effective Memory Clock | 6251 MHz |
| Memory Interface | 192-bit |
| Fanless | Yes |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| General | |
| Device Type | GPU computing processor - low profile - fanless |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA L4 |
| Core Clock | 795 MHz |
| Boost Clock | 2040 MHz |
| Features | NVIDIA Tensor Core, NVIDIA Ada Lovelace GPU technology, NVDEC support, NVENC support, GPU Virtualization, NVIDIA DLSS 3, single PCIe slot compability, Nvidia CUDA technology, Error Correcting Codes (ECC) Memory, secure boot with root of trust |
| Memory | |
| Size | 24 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 6251 MHz |
| Bus Width | 192-bit |
| Bandwidth | 300 GBps |
| Miscellaneous | |
| Power Consumption Operational | 75 Watt |
| Compliant Standards | RCM, BSMI, FCC, ICES, KCC, cUL, UL, VCCI, WHQL, ISO 9241, EU RoHS, REACH, J-STD, Halogen-free, WEEE |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 85% RH |
