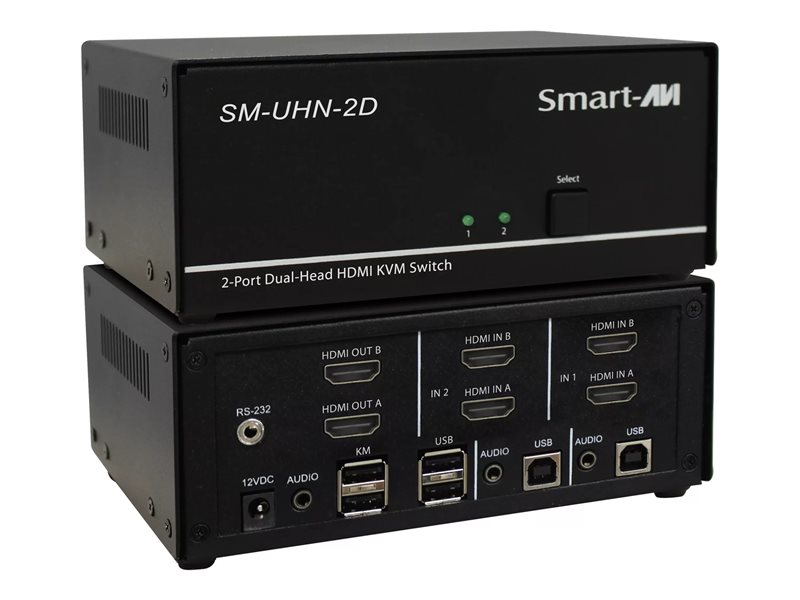

KVM switch - dualhead, HDMI, with USB 2.0 sharing - 2 x KVM port(s) - desktop
| Main Specifications | |
|---|---|
| Product Description | SmartAVI SM-UHN-2D - KVM switch - dualhead, HDMI, with USB 2.0 sharing - 2 ports |
| Device Type | KVM switch - 2 ports |
| Subtype | KVM |
| Ports | 2 x KVM port(s) |
| Performance | Data rate: 1.65 Gbps |
| Features | TMDS signal correction, zero pixel loss, firmware upgradable, 24-bit Deep Color support, 20 - 20000 Hz frequency response, 60 dB rejection, automatic input equalization |
| Compliant Standards | USB 2.0, USB 1.1 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 6.5 in x 4 in x 3 in |
| System Requirements | Windows, Linux, Sun Linux, Apple MacOS |
| General | |
| Device Type | KVM switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM port(s) |
| Keyboard / Mouse Interface | USB |
| Performance | Data rate: 1.65 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 165 MHz |
| Features | TMDS signal correction, zero pixel loss, firmware upgradable, 24-bit Deep Color support, 20 - 20000 Hz frequency response, 60 dB rejection, automatic input equalization |
| Compliant Standards | USB 2.0, USB 1.1 |
| Expansion / Connectivity | |
| Interfaces | Serial (RS-232) ¦ 4 x HDMI input ¦ 2 x HDMI output ¦ 2 x audio input mini-jack ¦ 1 x audio output mini-jack ¦ 2 x USB Type B ¦ 2 x USB Type A transparent ¦ 2 x USB Type A |
| Miscellaneous | |
| Compliant Standards | UL, RS-232, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | 24 watt |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| OS Required | Windows, Linux, Sun Linux, Apple MacOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 4 in |
| Height | 3 in |
