Docking station - USB4 / Thunderbolt 4 - HDMI - 1GbE, 2.5GbE
| Main Specifications | |
|---|---|
| Product Description | j5create JCD403 - docking station - USB4 / Thunderbolt 4 - HDMI - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB4 / Thunderbolt 4 |
| Video Interfaces | HDMI |
| Dimensions (WxDxH) | 2 in x 0.6 in x 5.3 in |
| Weight | 3.84 oz |
| Color | Space gray |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 2 in |
| Depth | 0.6 in |
| Height | 5.3 in |
| Weight | 3.84 oz |
| Enclosure Color | Space gray |
| Expansion / Connectivity | |

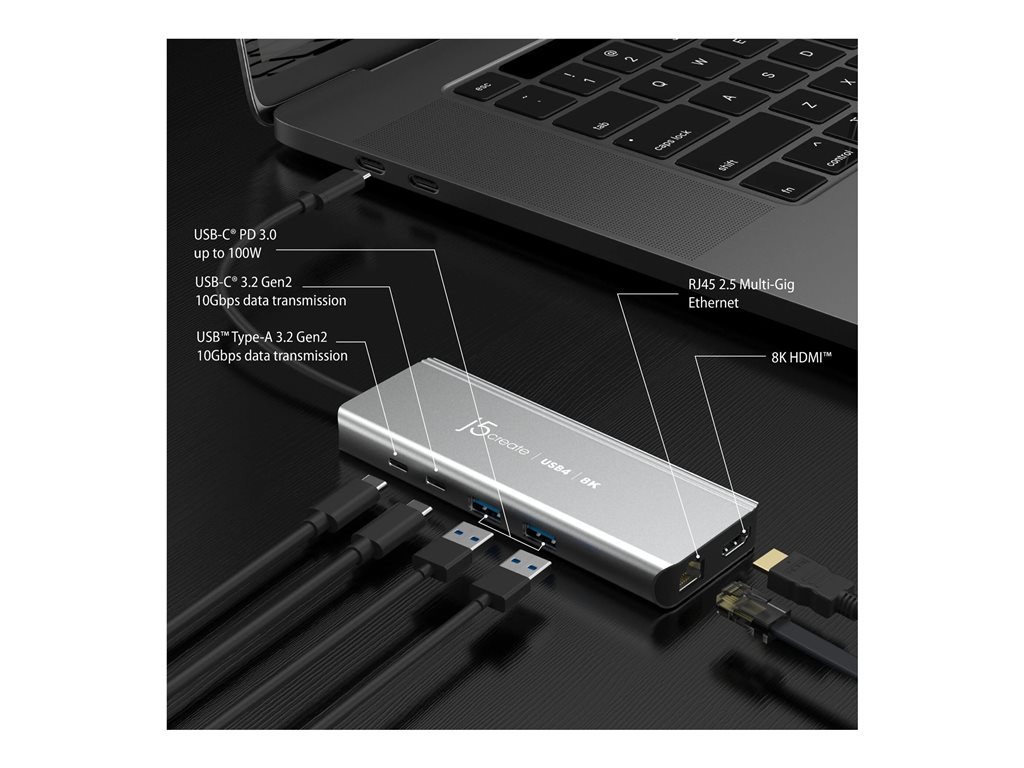

| Interfaces | 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 2 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 1 x network - 100M/1G/2.5G Gigabit Ethernet - RJ-45 ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 7.9 in |
| Features | Bus powered, 100W power delivery (pass-through), aluminum housing |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 30.2 °F |
| Max Operating Temperature | 105.8 °F |
| Video | |
| Max Resolution Details | 7680 x 4320 - 60 Hz (HDMI only with DSC) ¦ 7680 x 4320 - 30 Hz ¦ 3840 x 2160 - 144 Hz (HDMI only with DSC) ¦ 3840 x 2160 - 60 Hz |
