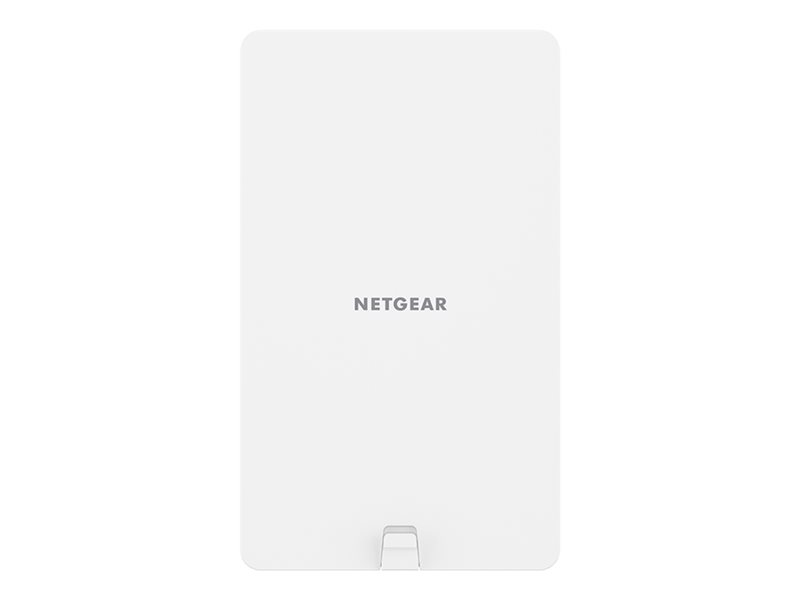

Wireless access point - with 4 years ProSupport - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed
| Main Specifications | |
|---|---|
| Product Description | NETGEAR Insight WAX608Y - wireless access point - Wi-Fi 6 - cloud-managed - with 4 years ProSupport |
| Device Type | Wireless access point |
| Bundled Services | 4 years ProSupport |
| Form Factor | External - outdoor |
| Localization | United States |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 1200 Mbps ¦ Maximum throughput (2.4 GHz): 600 Mbps |
| Included Accessories | Wall/ceiling mounting kit, pole mount |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 7.1 in x 12 in x 1.3 in |
| Weight | 33.15 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Wireless access point |
| Bundled Services | 4 years ProSupport |
| Ruggedized Design | Outdoor |
| Width | 7.1 in |
| Depth | 12 in |
| Height | 1.3 in |
| Weight | 33.15 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day ¦ Technical support - 90 days |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit, pole mount |
| Compliant Standards | IP55 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.8 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA, OFDM |
| Remote Management Protocol | RADIUS |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 1200 Mbps ¦ Maximum throughput (2.4 GHz): 600 Mbps |
| Wi-Fi Rating | AX1800 |
| Status Indicators | Power, cloud, LAN, 2.4 GHz, 5 GHz |
| Features | 2x2 MIMO technology, BSS Coloring, MU-MIMO technology, Bi-Directional (BiDi), Target Wait Time (TWT), Wireless Distribution System (WDS) support, repeating mode, bridge mode, MAC address filtering, Neighbor AP detection, Block SSID Broadcast, VLAN support, Guest Network, Captive Portal, bandwidth control, Link Layer Discovery Protocol, band steering, Mesh networking, Wi-Fi Multimedia (WMM) support, auto-uplink (auto MDI/MDI-X), Beamforming+ |
| Encryption Algorithm | SSL, WPA3, WPA, WPA2, TLS, TTLS, PEAP, WPA2-Enterprise, WPA3-Enterprise |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.11i, IEEE 802.1x, IEEE 802.3bt, Wi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 16.1 watt |
| Software / System Requirements | |
| Software Included | NETGEAR Insight |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Antenna | |
| Antenna | Internal |
