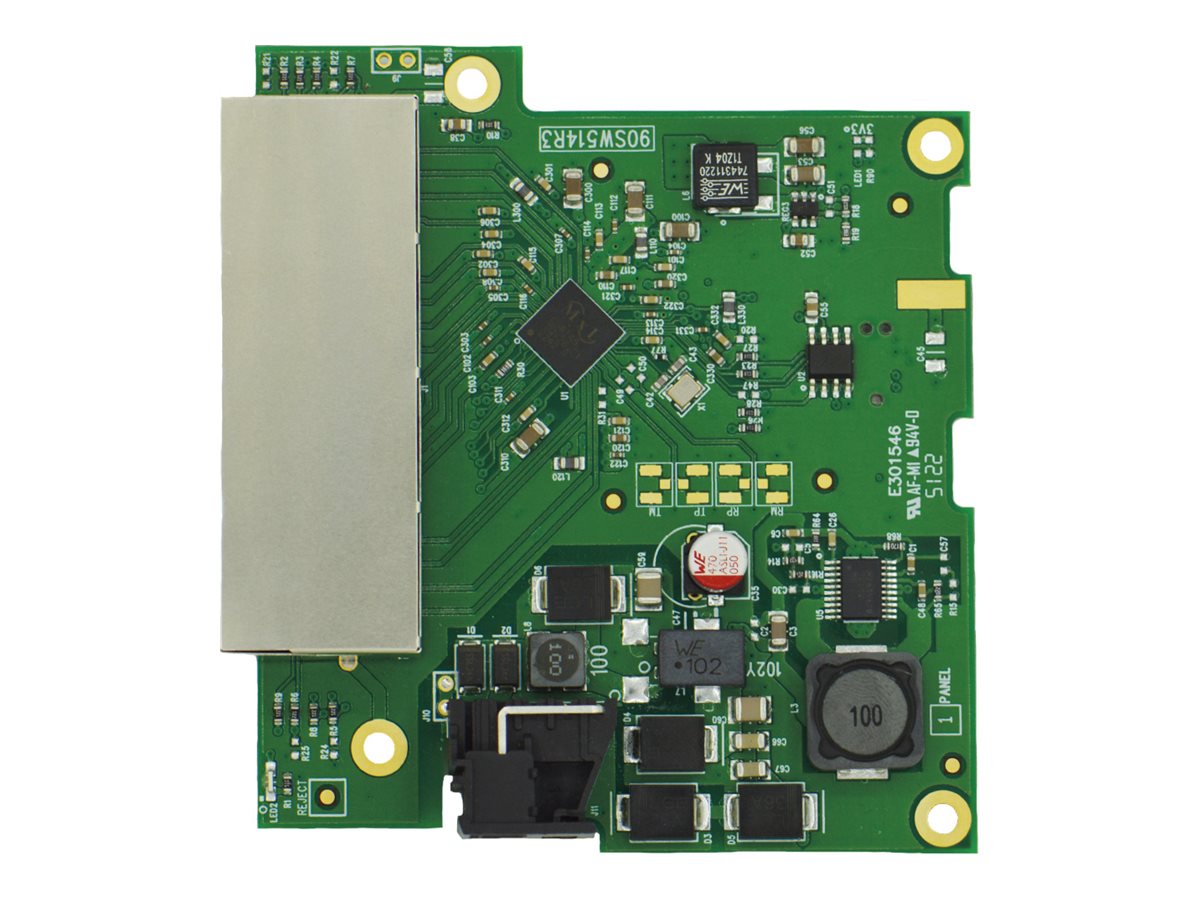

Switch - industrial - unmanaged - 4 x 10/100/1000 - internal - TAA Compliant - for Brainboxes PW-600, PW-650
| Main Specifications | |
|---|---|
| Product Description | Brainboxes SW-114 - switch - industrial - 4 ports - unmanaged - internal - TAA Compliant |
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | Internal |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 |
| Features | Reverse polarity protection, auto-uplink (auto MDI/MDI-X), 1.5 KV Magnetic Isolation, LED status indicators, auto-sensing per device, port isolation |
| Power | DC 5 - 30 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 3.2 in x 0.6 in x 3.7 in |
| Weight | 2.08 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty with product registration |
| Designed For | Brainboxes PW-600, PW-650 |
| General | |
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | Internal |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 |
| Features | Reverse polarity protection, auto-uplink (auto MDI/MDI-X), 1.5 KV Magnetic Isolation, LED status indicators, auto-sensing per device, port isolation |
| Status Indicators | Link/activity, port transmission speed |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime with product registration |
| Miscellaneous | |
| Compliant Standards | AEO, MET, UKCA, IP20 |
| TAA Compliant | Yes |
| Power | |
| Power Redundancy | Yes |
| Voltage Required | DC 5 - 30 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 0.6 in |
| Height | 3.7 in |
| Weight | 2.08 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.3 in |
| Shipping Depth | 1.9 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 5.08 oz |
| Compatibility Information | |
| Designed For | Brainboxes PW-600, PW-650 |
