KVM / USB switch - 4 x KVM / USB - 1 local user - desktop
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 4-Port VGA KVM Switch for USB or PS/2 Keyboard/Mouse - KVM / USB switch - 4 ports |
| Device Type | KVM / USB switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / USB |
| KVM Users Qty | 1 local user |

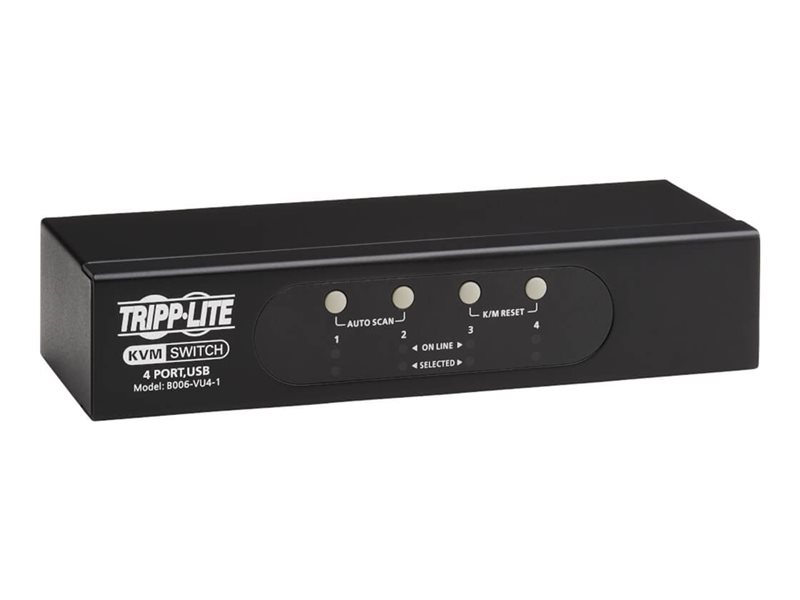

| Features | Push button, hotkeys, OSD mouse switching, LED status indicators, bus powered |
| Power | (60 Hz) |
| Dimensions (WxDxH) | 7.9 in x 2.9 in x 1.7 in |
| Weight | 27.16 oz |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: P778-006, P778-010, P778-015 |
| General | |
| Device Type | KVM / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Resolution | 2048 x 1536 |
| Features | Push button, hotkeys, OSD mouse switching, LED status indicators, bus powered |
| Expansion / Connectivity | |

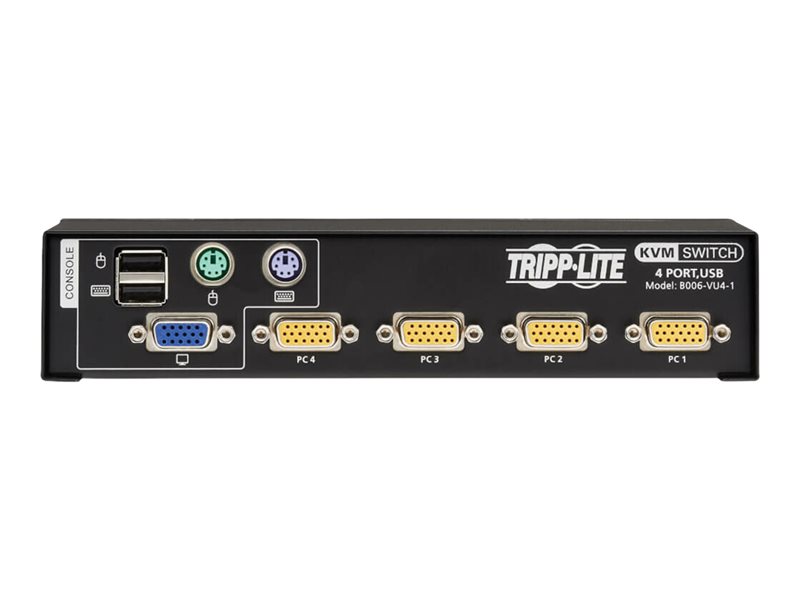

| Interfaces | 1 x VGA HD-15 ¦ 1 x keyboard (PS/2) 6 pin ¦ 1 x mouse (PS/2) 6 pin ¦ 2 x USB Type A ¦ 4 x VGA HD-18 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | DDC-2B, FCC (USA), WEEE, UKCA, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | 87 Watt |
| Voltage Required | (60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 27.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 6.3 in |
| Shipping Height | 2.3 in |
| Shipping Weight | 30.68 oz |
| Compatibility Information | |
| Designed For | P/N: P778-006, P778-010, P778-015 |
