Network surveillance camera - turret - outdoor - weather resistant - color (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - audio - LAN - H.265, H.264 - DC 12 V / PoE
| Main Specifications | |
|---|---|

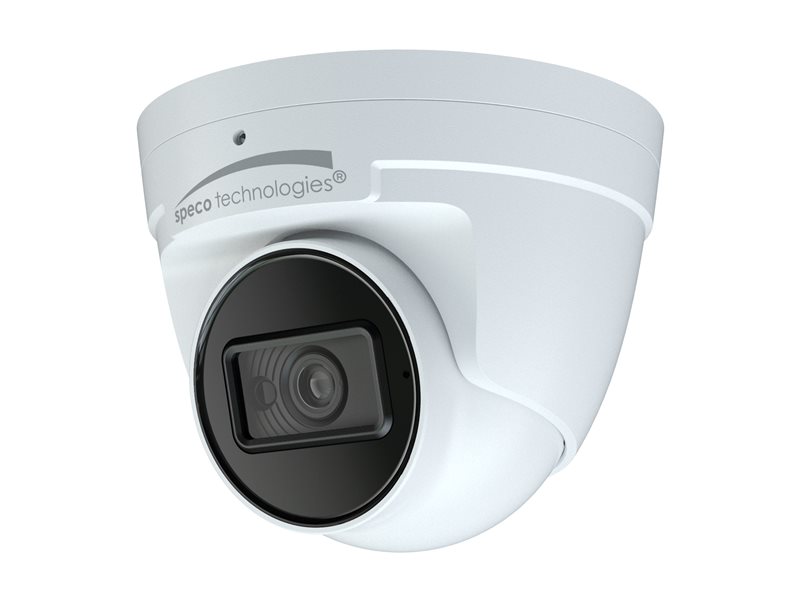

| Product Description | Speco O4VT2 - network surveillance camera - turret |
| Device Type | Network surveillance camera - fixed - turret - outdoor - weather resistant |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 4.2 in x 4.2 in x 3.8 in |
| Weight | 16.01 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2560 x 1440 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/3" - 4 MP |
| Minimum Illumination | 0.005 lux - color - F1.6 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | LAN |
| Voltage | DC 12 V / PoE |
| Features | Smart IR, Region of Interest (ROI), True Wide Dynamic Range (TWDR), Defog, 3D digital noise reduction (DNR), Backlight Compensation (BLC), Highlight Compensation (HLC), Variable Bitrate (VBR), Constant Bitrate (CBR), 3 video streams, password protection, IP address filtering, MAC filtering, digest authentication, Blur Detection, intrusion detection, Line Crossing Detection, Object Detection, watermark, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, infrared cut filter |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711a, G.711u |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 4.2 in |
| Depth | 4.2 in |
| Height | 3.8 in |
| Weight | 16.01 oz |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line in - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |

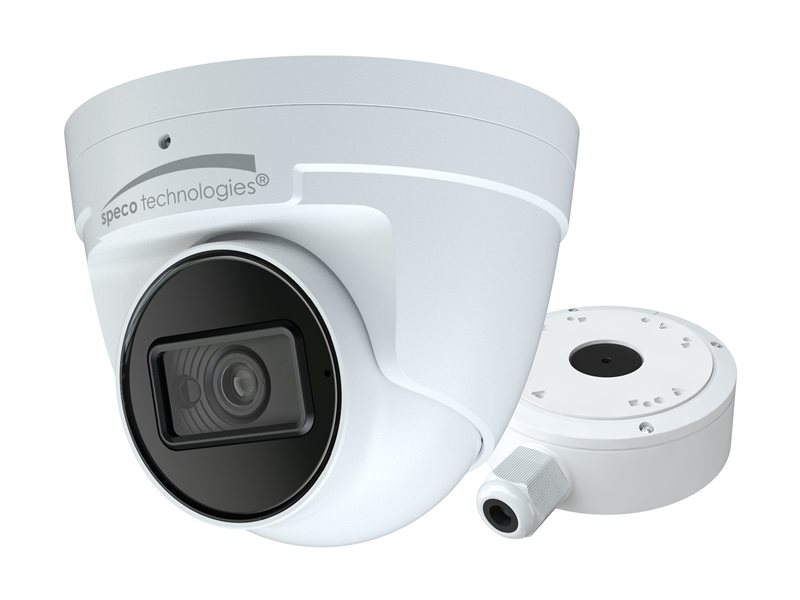

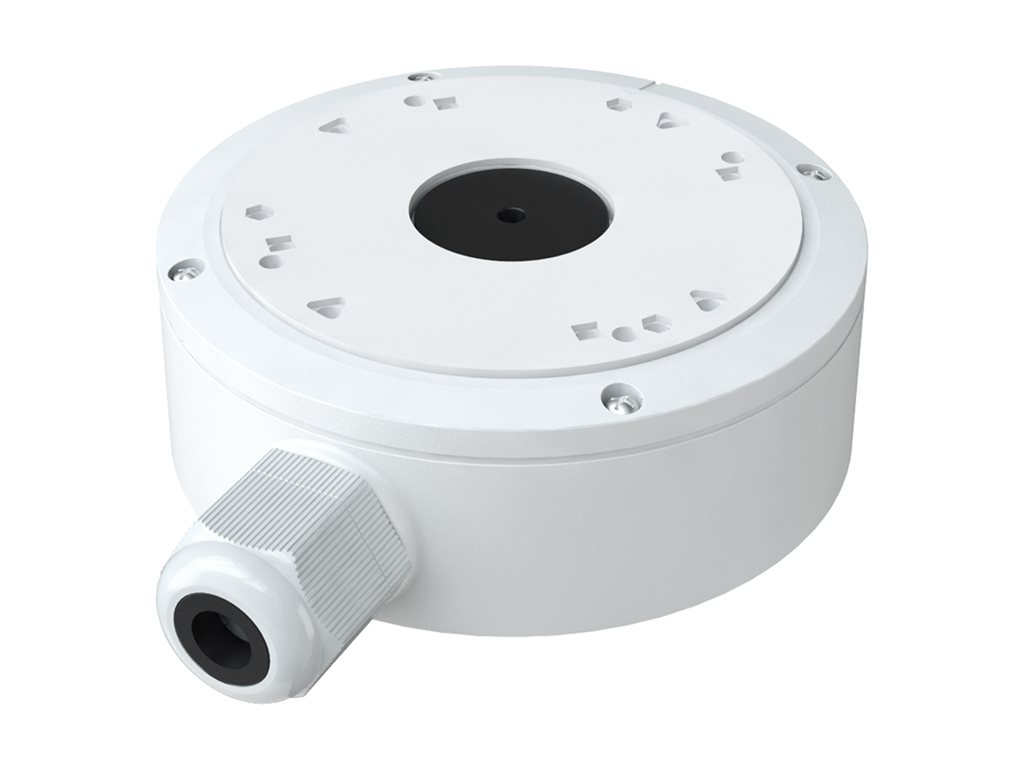

| Included Accessories | Junction box |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, FCC, NDAA Section 889, IP67 |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weather resistant |
| Digital Video Format | H.265, H.264 |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/2 sec - 1/100000 sec |
| Minimum Illumination | 0.005 lux - color - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 100 ft |
| Digital Video Capture Resolution | 2560 x 1440, 2304 x 1296, 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Features | Smart IR, Region of Interest (ROI), True Wide Dynamic Range (TWDR), Defog, 3D digital noise reduction (DNR), Backlight Compensation (BLC), Highlight Compensation (HLC), Variable Bitrate (VBR), Constant Bitrate (CBR), 3 video streams, password protection, IP address filtering, MAC filtering, digest authentication, Blur Detection, intrusion detection, Line Crossing Detection, Object Detection, watermark, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, infrared cut filter |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 94 |
| Vertical Field of View (degree) | 50 |
| Diagonal Field of View (degree) | 115 |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/3" |
| Interfaces | |
| Network Interface | LAN |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, UPnP, HTTP, HTTPS, QOS |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 75 |
