Keyboard/mouse/USB/audio switch - secure, DVI-I, mini-matrix, with fUSB - 4 x KVM / audio / USB - desktop
| Main Specifications | |
|---|---|

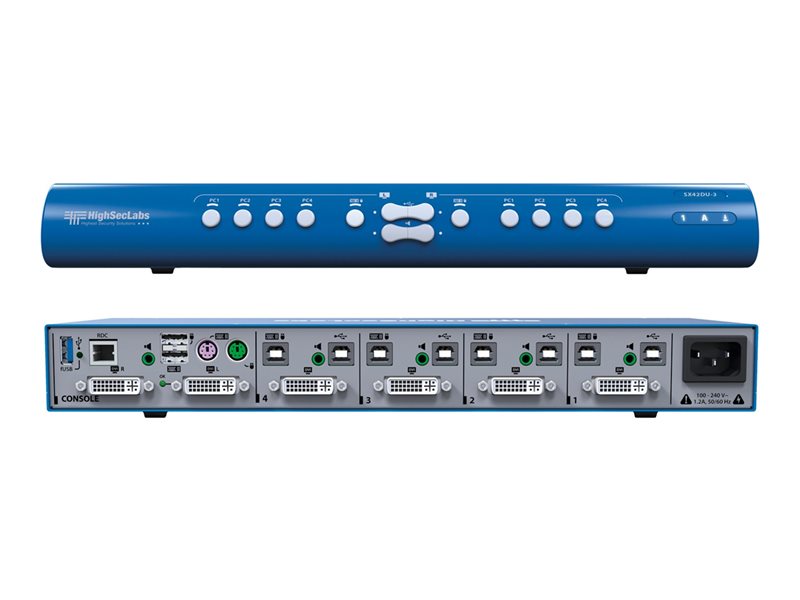

| Product Description | HighSecLabs SX42DU-3K - keyboard/mouse/USB/audio switch - secure, DVI-I, mini-matrix, with fUSB - 4 ports |
| Device Type | Keyboard/mouse/USB/audio switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Features | 4K resolution support, VDT |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 13.5 in x 5.6 in x 1.8 in |
| Weight | 3.53 lbs |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Keyboard/mouse/USB/audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | 4K resolution support, VDT |
| Status Indicators | Keyboard lock |
| Expansion / Connectivity | |
| Interfaces | 1 x mouse (PS/2) console ¦ 1 x keyboard (PS/2) console ¦ 2 x DisplayPort console ¦ 1 x mouse (USB) console ¦ 1 x keyboard (USB) console ¦ 1 x audio mini-jack console ¦ 1 x USB Type A console ¦ 4 x DVI-I ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x audio mini-jack ¦ 1 x RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | FCC Class B certified, VCCI, TUV C, RCM, DisplayPort 1.2, NIAP PP 3.0, TUV US |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 13.5 in |
| Depth | 5.6 in |
| Height | 1.8 in |
| Weight | 3.53 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.1 in |
| Shipping Depth | 9.6 in |
| Shipping Height | 3 in |
| Shipping Weight | 5.07 lbs |
