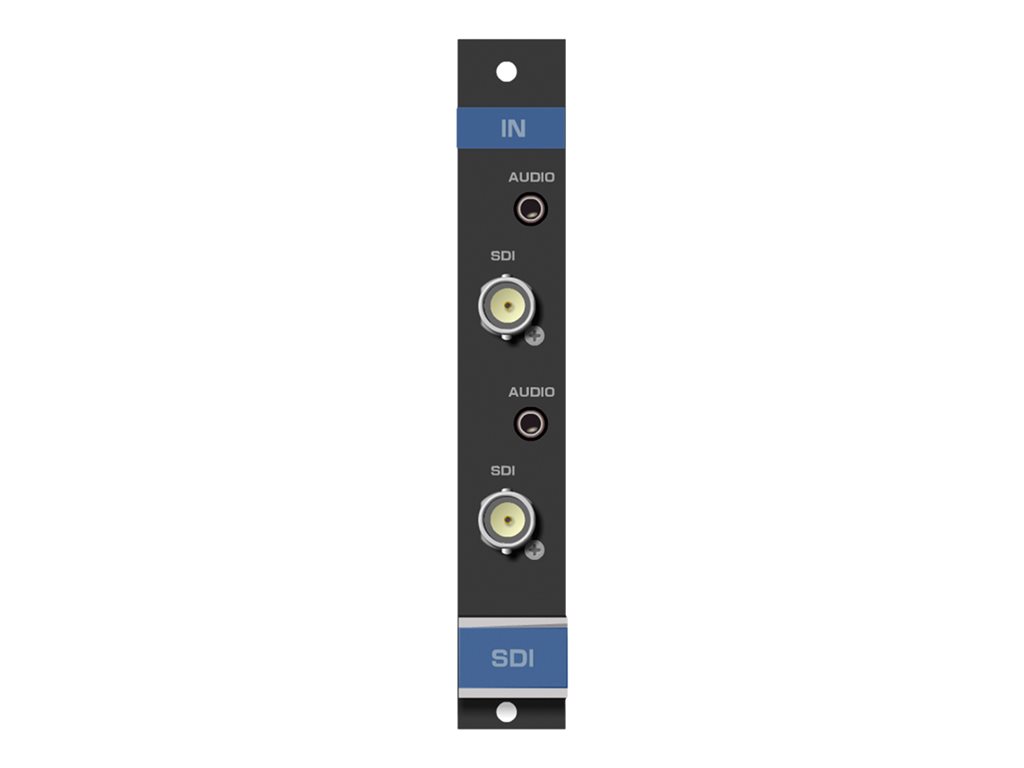

Expansion module - SDI x 2 + audio x 2
| Main Specifications | |
|---|---|
| Product Description | Kramer SDIA-IN2-F16/F34 - expansion module - SDI x 2 + audio x 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | SDI x 2 + audio x 2 |
| Dimensions (WxDxH) | 9.9 in x 5.1 in x 0.8 in |
| Weight | 10.58 oz |
| Performance | Total bandwidth: 3 Gbps |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 2 x SDI input - BNC - female ¦ 2 x audio line-in - mini-phone 3.5 mm - female |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE |
| Networking | |
| Ports | SDI x 2 + audio x 2 |
| Connectivity Technology | Wired |
| Performance | Total bandwidth: 3 Gbps |
| Power | |
| Power Consumption Operational | 6 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.9 in |
| Depth | 5.1 in |
| Height | 0.8 in |
| Weight | 10.58 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.8 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.4 in |
| Shipping Weight | 17.64 oz |
