Barcode scanner - wearable - MR - 2D imager - decoded - Bluetooth 5.0
| Main Specifications | |
|---|---|

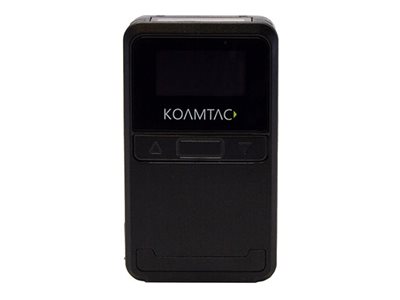

| Product Description | KoamTac KDC180MR - barcode scanner |
| Type | Barcode scanner - wearable - Bluetooth 5.0 - decoded |
| Minimum Bar Width | 20 mil |
| Scan Engine Focus Range | Medium Range (MR) |
| Scan Element Type | 2D imager |
| Connectivity Technology | Wireless |
| Wireless Connectivity | Bluetooth 5.0 LE, NFC |
| Battery | 1 x lithium ion |
| System Requirements | Android, Apple iOS, Apple MacOS X, Windows |
| Dimensions (WxDxH) | 2.7 in x 1.6 in x 0.8 in |
| Weight | 2.23 oz |
| General | |
| Type | Barcode scanner - wearable |
| Memory | |
| Flash | 8 MB |
| Miscellaneous | |
| Included Accessories | Lanyard, protective rubber boot |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | RED, FCC, KC, TELEC, VCCI, SRRC, RoHS, IEC 62471:2006, IP65 |
| Networking | |
| Wireless Connectivity | Bluetooth 5.0 LE, NFC |
| Power | |
| Battery | 1 x lithium ion |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 5.9 ft |
| System Requirements | |
| OS Required | Android, Apple iOS, Apple MacOS X, Windows |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 1.6 in |
| Height | 0.8 in |
| Weight | 2.23 oz |
| Barcode | |
| Interface Type | Bluetooth 5.0 |
| Minimum Bar Width | 20 mil |
| Scan Engine Focus Range | Medium Range (MR) |
| Scan Element Type | 2D imager |
| Max Working Distance | 59.1 in |
| Decode Capability | Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 DataBar Composites, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2 of 5, IATA 2 of 5, TLC39, Telepen, Trioptic Code, UPC-A, UPC-E0, UPC-E1, Aztec code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, China Han Xin Code, Postnet, PLANET, British Post, Canadian Post, Kix (Netherlands) Post, Australian Post, Japanese Post, China Post, Korea Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | LED indicator |
| Features | Human Interface Device Profile (HID), Serial Port Profile (SPP), NFC pairing, 1" OLED display, removable battery |
