Magnetic / SMART card reader (Tracks 1, 2 & 3) - Bluetooth
| Main Specifications | |
|---|---|

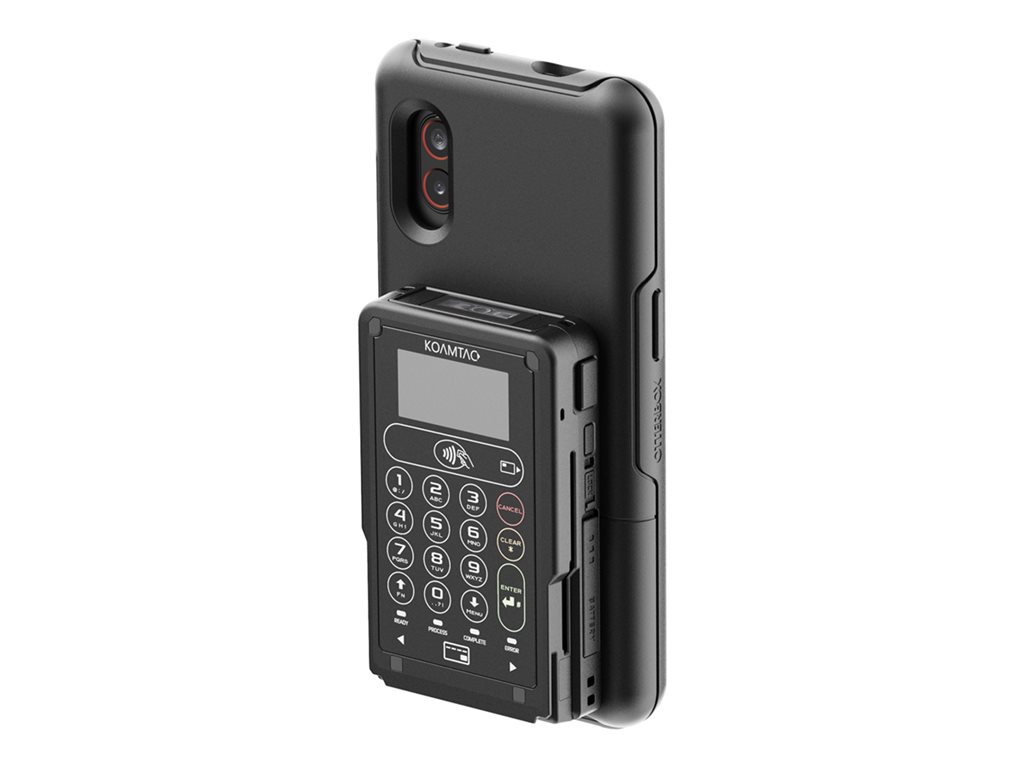

| Product Description | KoamTac KDCSLED mPOS Payment Companion - magnetic / SMART card reader - Bluetooth |
| Device Type | Magnetic / SMART card reader - contact/contactless |
| Interface Type | Bluetooth |
| ISO Card Tracks | Tracks 1, 2 & 3 |
| Dimensions (WxDxH) | 2.6 in x 4.1 in x 0.4 in |
| Weight | 2.33 oz |
| General | |
| Device Type | Magnetic / SMART card reader - contact/contactless |
| Interface Type | Bluetooth |
| Width | 2.6 in |
| Depth | 4.1 in |
| Height | 0.4 in |
| Weight | 2.33 oz |
| Miscellaneous | |
| Device Features | Swipe reader, built-in IC e-card reader, 1.2 m drop resistant |
| Compliant Standards | EMV Contactless L1, EMV Contact L1, EMV Contact L2, PCI PTS 6.x SRED, EMV Level-1, ISO 7816, FCC, ISO 7810, ISO 7811, ISO 7813, KC, RED, RoHS, IP42 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Magnetic Card Reader | |
| Recording Standard | ISO 7810/7811, ISO 7813:1990, ISO 7816 Class A, ISO 7816 Class B, ISO 7816 Class C |
| ISO Card Tracks | Tracks 1, 2 & 3 |
