ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
PCIe® 4.0 for M.2 storage
DDR5 memory module support
Front-panel USB 3.2 Gen 1 Type-C®
2.5 Gb Ethernet
Wi-Fi 6
Two-Way AI Noise-Cancelation
Intelligent Control
BIOS FlashBack™
Lighting
SPEC OVERVIEW
HDMI™
2 x DisplayPort™
BIOS FlashBack™ button
2 x USB 3.2 Gen 1 (Type-A)
PS/2
4 x USB 2.0 (Type-A)
Realtek 2.5Gb Ethernet
Wi-Fi 6
3 x Audio jacks
Expansion Slots
1 x PCIe® 4.0 x16 SafeSlot Core+
2 x PCIe® 3.0 x1
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
DIGI+ VRM
3 x Addressable Gen 2 headers
DDR5 support OptiMem II
AMD AM5 Socket
2 x Front USB 3.2 Gen 1
1 x Front USB 3.2 Gen 1 Type-C®
AMD A620 Chipset
2 x M.2 2280 (PCIe® 4.0 x4 mode)
4 x SATA 6 Gb/s
4 x Front USB 2.0
1 x Aura RGB header
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
POWER SAVING
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Transfer configuration settings between different BIOS versions, or share them with friends.
EZ Mode
Quick and Simple Setup
EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
Hardware Information
Fan Xpert 2+
Two-Way AI Noise-Cancelation
Aura Sync
Driver & Manual Download
Account Management
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
POWER DESIGN
Six-Layer PCB Design
Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical components to keep them at their optimal operating temperatures.
System Stability
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
52%
Temperature
2.5x
Lifespan
Controller
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
MEMORY & STORAGE
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING A620 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
DDR5 DOMINANCE
For those who want to fly past stock DDR5 speeds, TUF GAMING A620 motherboards are primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing, and voltage profiles that you can effortlessly apply to unleash performance.

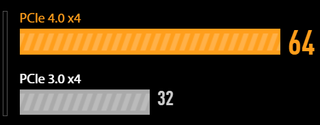

PCIe® 4.0 Support
Dual M.2 slots support up to PCIe® 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe® 4.0 storage devices to enjoy the fast data transfer speeds.
Bandwidth (Gbps)
* Actual transmission speed will be lower than theoretical maximum speed.
COOLING
Cooler By Design
Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
Comprehensive Fan Controls
TUF GAMING A620 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 2+ utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
Multiple Temperature Source
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
CONNECTIVITY
TUF GAMING A620 motherboards reach new heights of performance potential with the PCI Express, dual DisplayPort, while an arsenal of USB ports, including USB Type-A connectors with fast USB 3.2 Gen 1 connectivity and one front USB 3.2 Gen 1 Type-C® connector for compatible cases.
EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise-Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
TUF GAMING ALLIANCE
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
TUF PROTECTION
SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe® slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
* ESD result is undertaken by individual LANGuard.
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
3x
Longer Lifespan
72 hr
Salt Fog Testing
EASY CONFIGURATION
BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No CPU Detected
Fast blinking
4 Hz (0.25s)
No VGA Detected
Slow blinking
1/2 Hz (2s)
No Boot Device Detected
Very slow blinking
1/8 Hz (8s)
Installation Completed
Solid light
IMMERSIVE GAMING
TUF GAMING A620 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
NETWORKING
Wi-Fi 6
The Wi-Fi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
MyASUS
MyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimize product performance. You can also use MyASUS to enable the Wi-Fi SmartConnect function to automatically connect to the wireless router with the best signal.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
AI NOISE-CANCELATION
Two-Way AI Noise-Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed, so you can hear and be heard with perfect clarity while gaming or during calls.
* An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
500M
Deep-learning database
AUDIO
Input/output
HIGH
Fidelity
Minimal Performance impact
Hear the Difference
0:17
0:17
AI ON
AI OFF
AUDIO
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING A620 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

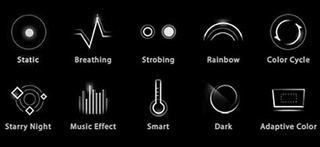

LIGHTING
Outshine The Competition
A well-tuned system deserves a matching aesthetic. The TUF GAMING A620 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.
Addressable Gen 2 RGB Headers
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
*Precise specifications and features vary by model. Please refer to the specification page.
The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (™, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
About ASUS
ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Intelligent control
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive gaming
TUF GAMING A620 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
4 x USB 3.2 Gen 1 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
General
Product Type
Motherboard - micro ATX
Chipset Type
AMD A620
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x antenna
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Armoury Crate, ASUS Fan Xpert 2+, ASUS AURA Creator, ASUS AI Suite III, PC Cleaner, Norton 360 for Gamers (60 days trial), WinRAR, MyAsus
Compliant Standards
DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE
Width
9.6 in
Depth
9.6 in
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS OptiMem II, TUF LANGuard, jack retasking, audio jack detect technology, Water Pump Header, ASUS DIGI+ VRM, ESD Guards, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, ASUS EZ DIY, BIOS FlashBack LED, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, Preboot eXecution Environment (PXE)
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
