2x 5-15/20R, USB Charging, Pure Sine Wave, Wired Remote - DC to AC power inverter - DC 12 V - 3000 Watt - black, blue
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 3000W Heavy-Duty Compact Power Inverter - 2x 5-15/20R, USB Charging, Pure Sine Wave, Wired Remote - DC to AC power inverter - 3000 Watt |
| Device Type | DC to AC power inverter - external |
| Weight | 15.1 lbs |
| Input Voltage | DC 12 V |
| Output Voltage | AC 120 V |
| Power Capacity | 3000 Watt |

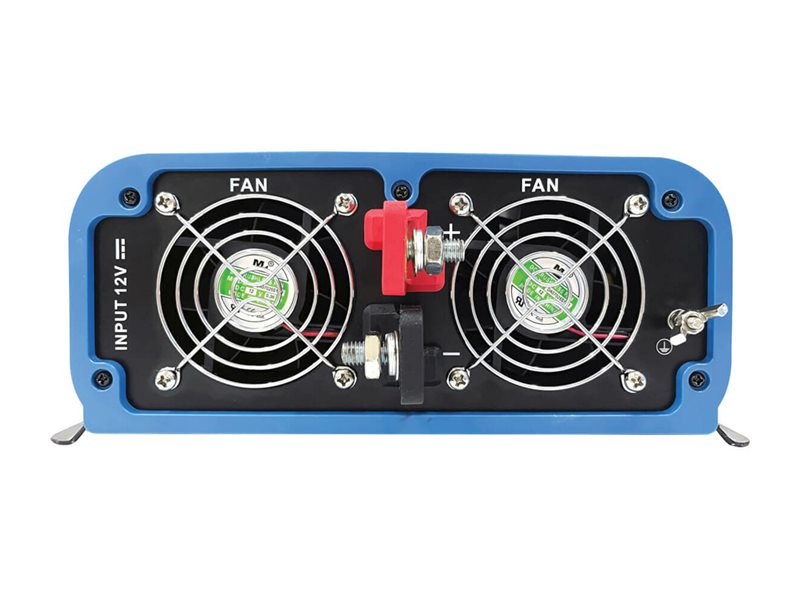

| Input Connectors | Ring terminal |

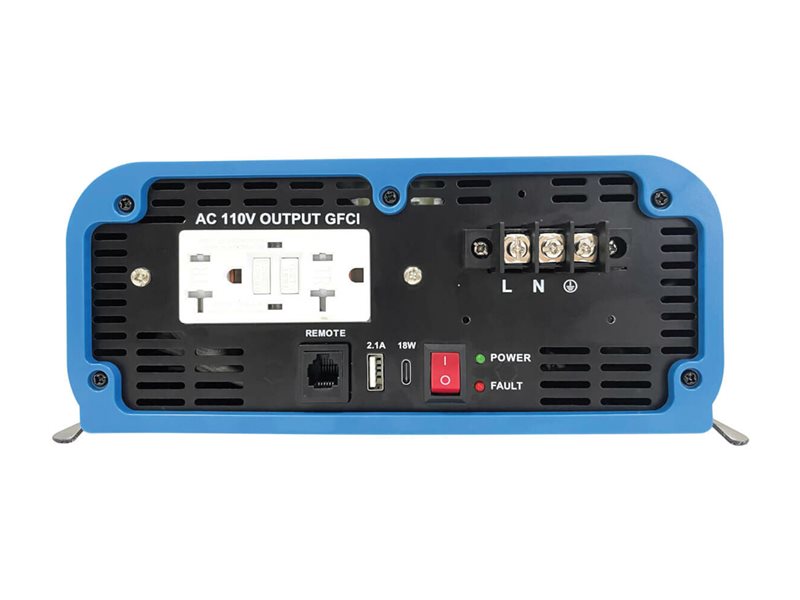

| Output connectors | 2 x power NEMA 5-15/20R - 120 V ¦ 1 x 4 pin USB Type A |
| Included Accessories | 4 DC battery cables with ring terminals, ground wire with clamp, PINVSWRM wired remote kit, mounting hardware |
| Color | Black, blue |
| Dimensions (WxDxH) | 10.5 in x 14.4 in x 4.6 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | DC to AC power inverter - external |
| Color | Black, blue |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 4 DC battery cables with ring terminals, ground wire with clamp, PINVSWRM wired remote kit, mounting hardware |
| Cables Included | Ground cable |
| Features | Wall mountable, floor mountable, overload protection, LED indicators, cooling fan, audible alarm |
| Compliant Standards | RoHS, FCC Part 15 Class B (USA), CAN/CSA-C22.2 No. 107.1 (Canada), ICES (Canada), UL 458 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 12 V |
| Input Voltage Range | DC 10 - 16 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Connectors | Ring terminal |
| Power Output Connectors Details | 2 x power NEMA 5-15/20R - 120 V ¦ 1 x 4 pin USB Type A |
| Output Voltage | AC 120 V 60 Hz |
| Power Capacity | 3000 Watt |
| Dimensions & Weight | |
| Width | 10.5 in |
| Depth | 14.4 in |
| Height | 4.6 in |
| Weight | 15.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.5 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 6.4 in |
| Shipping Weight | 16.49 lbs |
