Docking station - USB-C - HDMI, DP++, VGA - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Kensington SD4810P - docking station - USB-C - HDMI, DP++, VGA - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | HDMI, DP++, VGA |
| Dimensions (WxDxH) | 3.3 in x 7.7 in x 0.9 in |
| Weight | 15.17 oz |
| Color | Space gray |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.3 in |
| Depth | 7.7 in |
| Height | 0.9 in |
| Weight | 15.17 oz |
| Enclosure Color | Space gray |
| Expansion / Connectivity | |

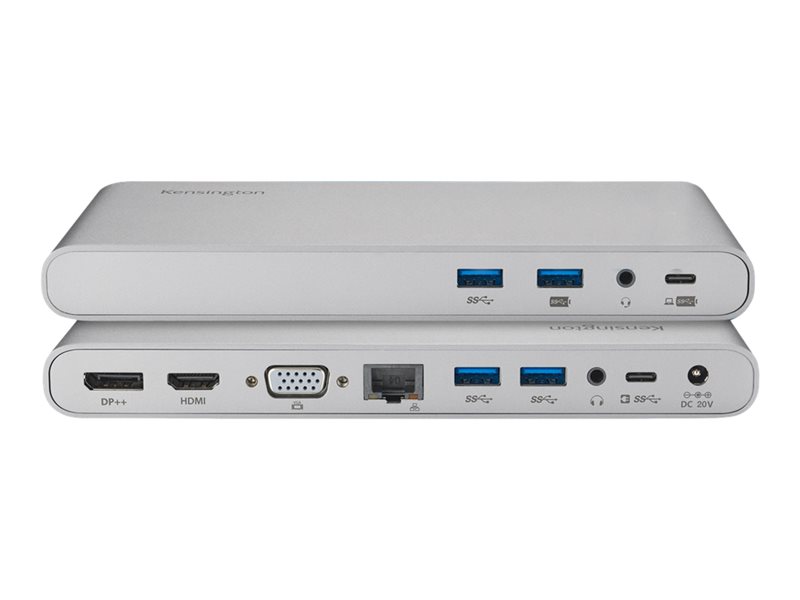

| Interfaces | 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x USB-C - 24 pin USB-C ¦ 4 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | 100W power delivery, triple display support, DisplayPort Alt Mode, DockWorks, Quick Charge |
| Compliant Standards | Plug and Play, DisplayPort 1.4, USB Power Delivery 3.0, FCC, IC, UKCA, RCM, CB, RoHS, ACCO RSL |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 4K - 60 Hz (Dual Display) ¦ 4K - 30 Hz (Single Display) |
| System Requirements | |
| OS Required | Windows 10 or later |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.9 in |
| Shipping Depth | 8.5 in |
| Shipping Height | 4.4 in |
| Shipping Weight | 2.43 lbs |
