Network adapter - PCIe 5.0 x16 - 200 Gigabit QSFP112 x 2
| Main Specifications | |
|---|---|

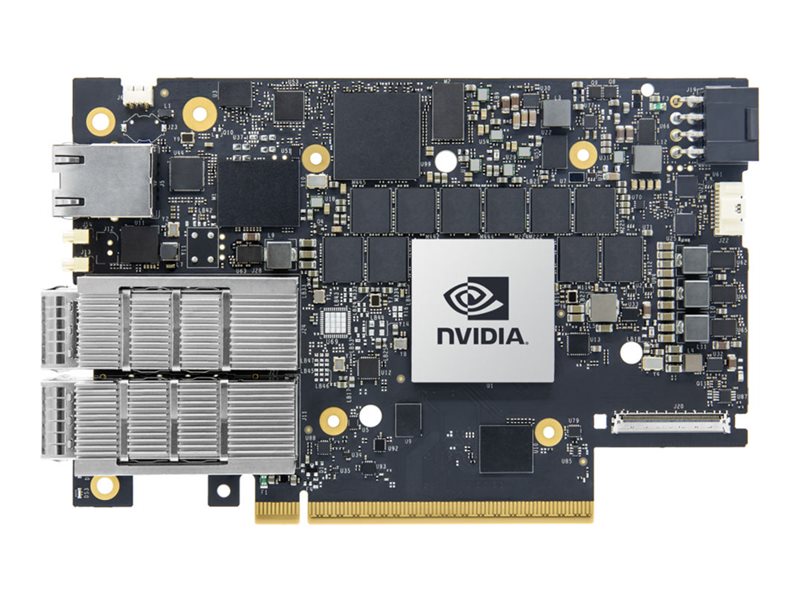

| Product Description | NVIDIA BlueField-3 B3220 - network adapter - PCIe 5.0 x16 - 200 Gigabit QSFP112 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| PCI Specification Revision | PCIe 5.0 |
| Ports | 200 Gigabit QSFP112 x 2 |
| Dimensions (WxDxH) | 6.6 in x 4.4 in |
| Data Link Protocol | 200GbE |
| Data Transfer Rate | 200 Gbps |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| PCI Specification Revision | PCIe 5.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 200Gb Ethernet - QSFP112 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS |
| Networking | |
| Ports | 200 Gigabit QSFP112 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 200 Gigabit Ethernet |
| Data Transfer Rate | 200 Gbps |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 85% RH |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 4.4 in |
