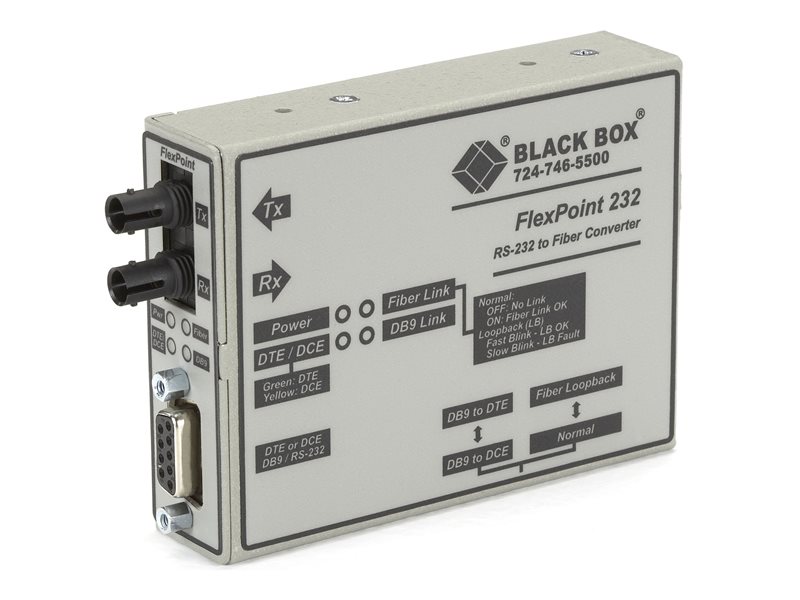

Serial port extender - RS-232 - over fiber optic - fiber optic, serial RS-232 - 9 pin D-Sub (DB-9) / ST multi-mode - up to 1.6 miles
| Main Specifications | |
|---|---|
| Product Description | Black Box FlexPoint - serial port extender - RS-232 |
| Device Type | Serial port extender - 9 pin D-Sub (DB-9) / ST multi-mode |
| Form Factor | External |
| Cabling Type | Fiber optic, serial RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Data Link Protocol | RS-232 |
| Transmission Medium | Fiber optic |
| Max Transfer Distance | 1.6 miles |
| Dimensions (WxDxH) | 3 in x 4 in x 1 in |
| Weight | 6.38 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Serial port extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - DB-9 female ¦ 1 x network - ST multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Fiber optic, serial RS-232 |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Max Transfer Distance | 1.6 miles |
| Status Indicators | Status |
| Features | Half duplex mode, full duplex mode, Point-to-Point (PtP) link mode, hot swappable, selectable DTE / DCE interface, asynchronous operating mode, LED status indicator, standalone use |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 6.38 oz |
