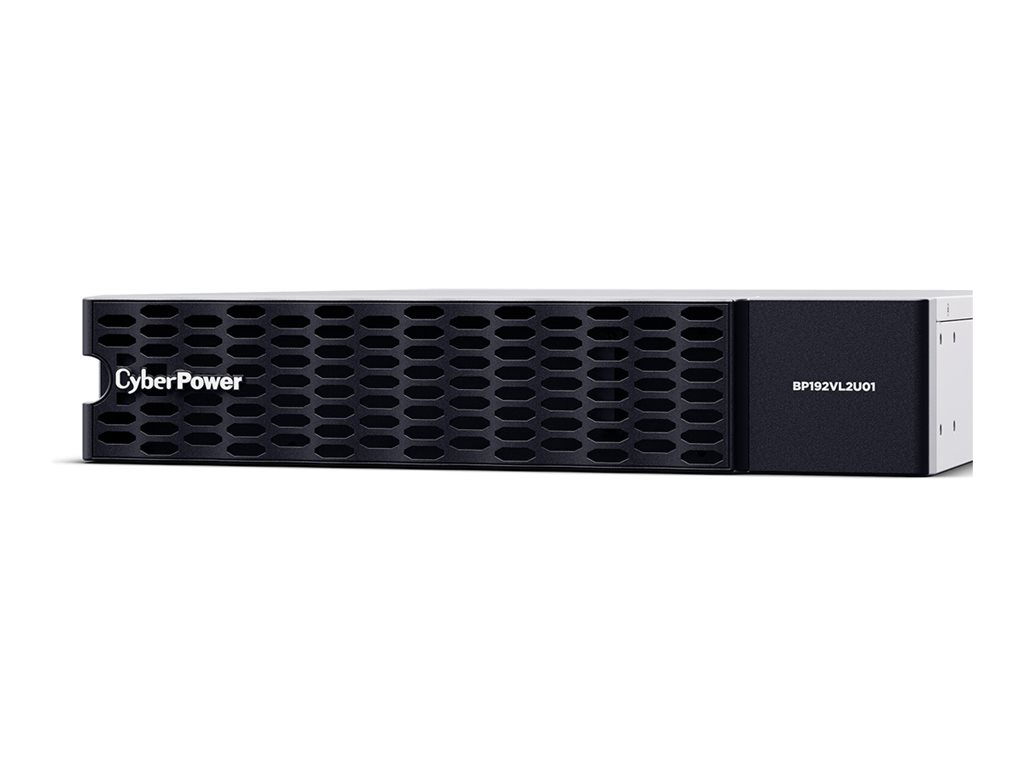

Battery enclosure (rack-mountable / external) - 16 x battery - 6 Ah - 2U - unpainted, black
| Main Specifications | |
|---|---|
| Product Description | CyberPower Extended Battery Module BP192VL2U01 - battery enclosure - 6 Ah |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 101.39 lbs |
| Output Voltage | DC 192 V |
| Battery | - 6 Ah |
| Batteries Qty | 16 |
| Color | Unpainted, black |
| Dimensions (WxDxH) | 17.1 in x 28.3 in x 3.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Unpainted, black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Features | Metal housing, Fast Charge technology, Battery Equalization Technology, Smart Battery Management (SMB), Enhanced Battery Management (EBM) |
| Compliant Standards | RoHS, UL 1778, CSA C22.2 No. 107.3, FCC-15 (Class A), Plug and Play |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Battery | |
| Quantity | 16 |
| Voltage Provided | 12 V |
| Capacity | 6 Ah |
| Recharge Time | 4 hours |
| Features | Hot-swappable, sealed |
| Power Device | |
| Output Voltage | DC 192 V |
| Max Electric Current | 60 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 28.3 in |
| Height | 3.4 in |
| Weight | 101.39 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.5 in |
| Shipping Depth | 43.2 in |
| Shipping Height | 8.4 in |
| Shipping Weight | 119.29 lbs |
