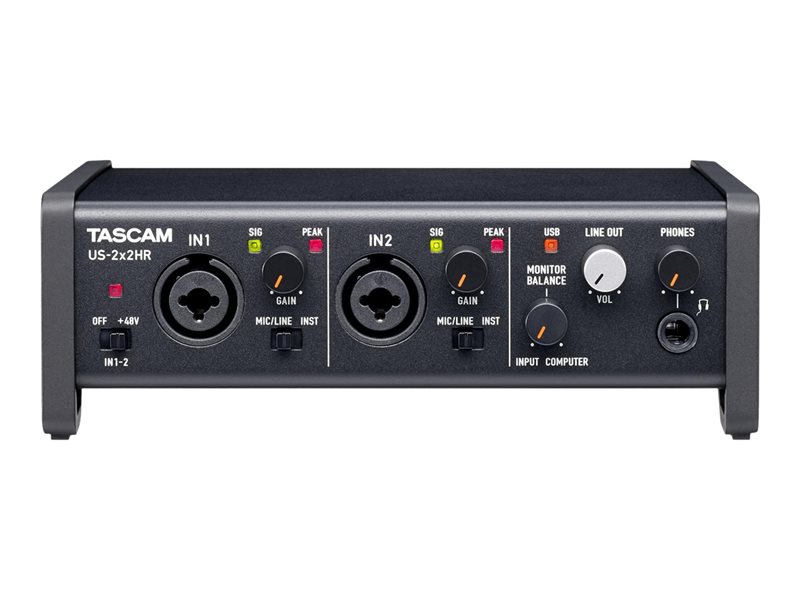

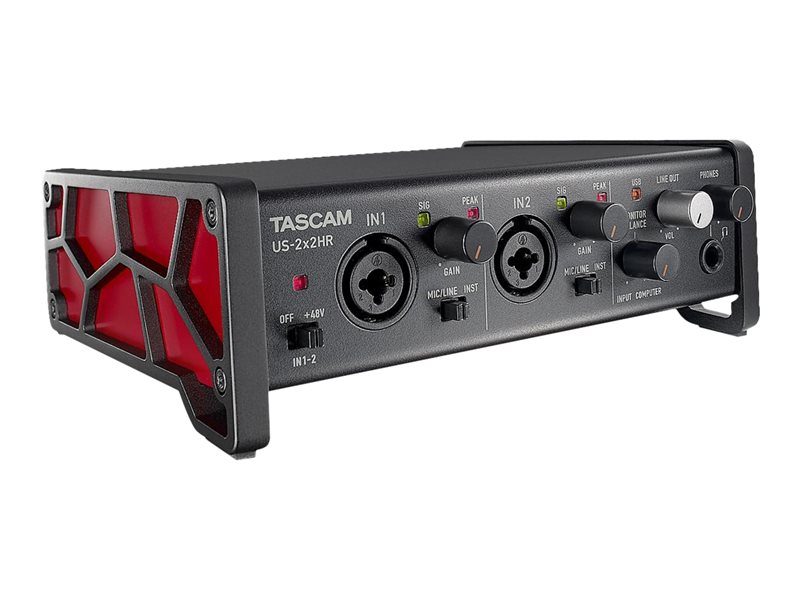

Audio interface - 24-bit - 192 kHz - 110 dB SNR - stereo - USB 2.0
| Main Specifications | |
|---|---|
| Product Description | Tascam US-HR Series US-2X2HR - audio interface - USB 2.0 |
| Device Type | Audio interface |
| Enclosure Type | External |
| Interface Type | USB 2.0 |
| Dimensions (WxDxH) | 7.3 in x 6.3 in x 2.6 in |
| Weight | 2.43 lbs |
| Sound Output Mode | Stereo |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 192 kHz (max) |
| Signal-To-Noise Ratio | 110 dB |
| Hardware Controls And Indicators | Input select, gain control, balance control, output level controls, signal indicators, peak indicators, USB indicator |
| System Requirements | Microsoft Windows 7, Windows 8.1, Windows 10, Apple iOS 12, Apple iOS 13, Apple iOS 14, Apple iPadOS, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14 |
| General | |
| Device Type | Audio interface |
| Form Factor | External |
| Interface Type | USB 2.0 |
| Width | 7.3 in |
| Depth | 6.3 in |
| Height | 2.6 in |
| Weight | 2.43 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x audio line-in/microphone - 3 pin XLR / phone 6.3 mm ¦ 2 x balanced output - phone stereo 6.3 mm ¦ 1 x headphones - phone stereo 6.3 mm ¦ 1 x MIDI input - 5 pin DIN ¦ 1 x MIDI output - 5 pin DIN ¦ 1 x USB 2.0 - 24 pin USB-C |
| Miscellaneous | |
| Cables Included | USB-C to USB-A cable |
| Software / System Requirements | |
| Software | Cubase LE, SampleTank 4 SE, Antares Auto-Tune Unlimited (3 months) |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple iOS 12, Apple iOS 13, Apple iOS 14, Apple iPadOS, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14 |
| System Requirements Details | Dual core processor - 2 GHz - RAM 2 GB |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Audio Output | |
| Sound Output Mode | Stereo |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 192 kHz (max) |
| Signal-To-Noise Ratio | 110 dB |
| Input Channels Qty | 2 |
| Output Channels Qty | 2 |
| Frequency Response | 20 - 40000 Hz |
| Hardware Controls And Indicators | Input select, gain control, balance control, output level controls, signal indicators, peak indicators, USB indicator |
| Features | USB bus-powered, 48V phantom power, Ultra High Definition Discrete Architecture (Ultra-HDDA), Zero-latency monitoring |
