White Edition - power supply (internal) - ATX 3.0 / SFX-L - 80 PLUS Platinum - AC 100-240 V - 850 Watt
| Main Specifications | |
|---|---|

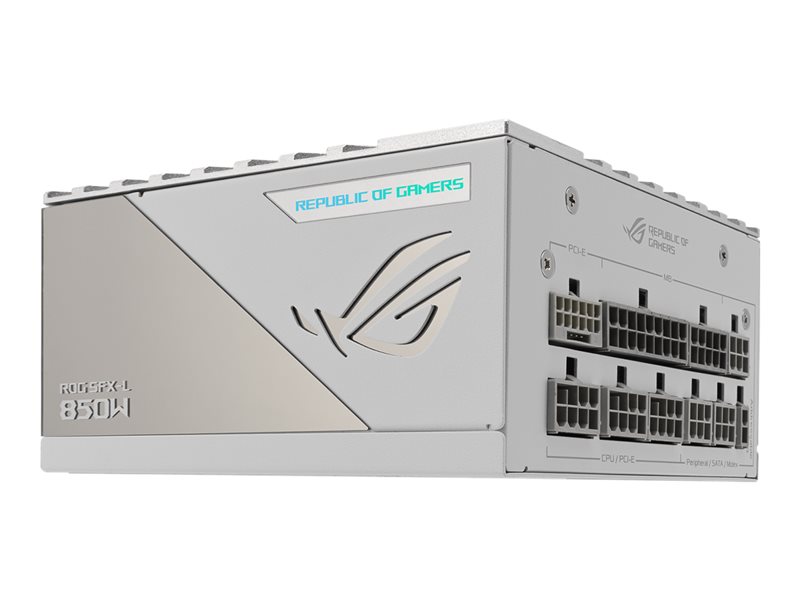

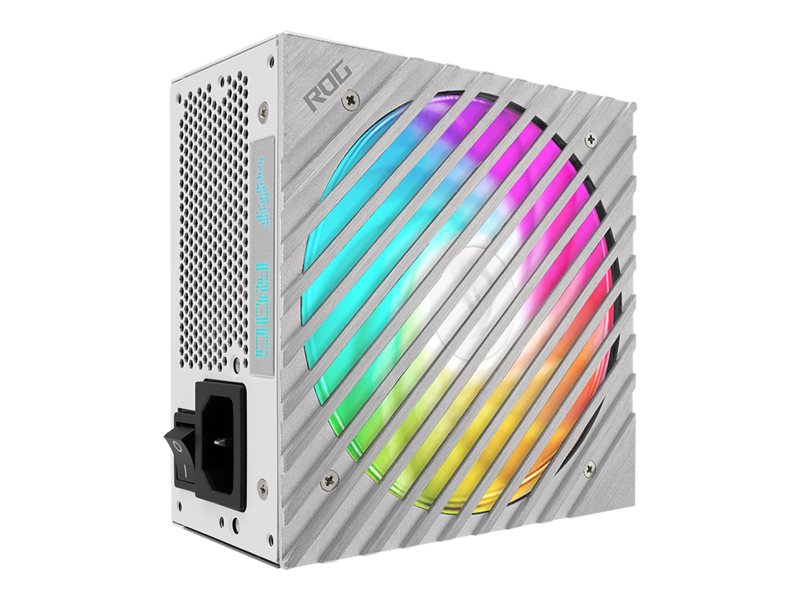

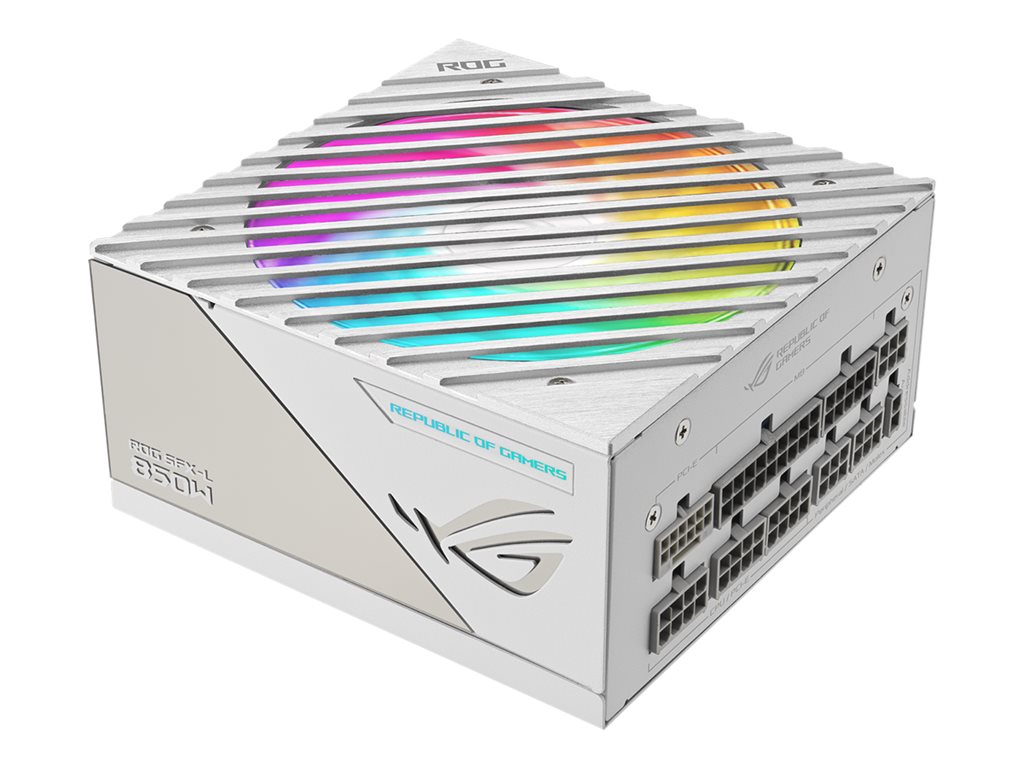

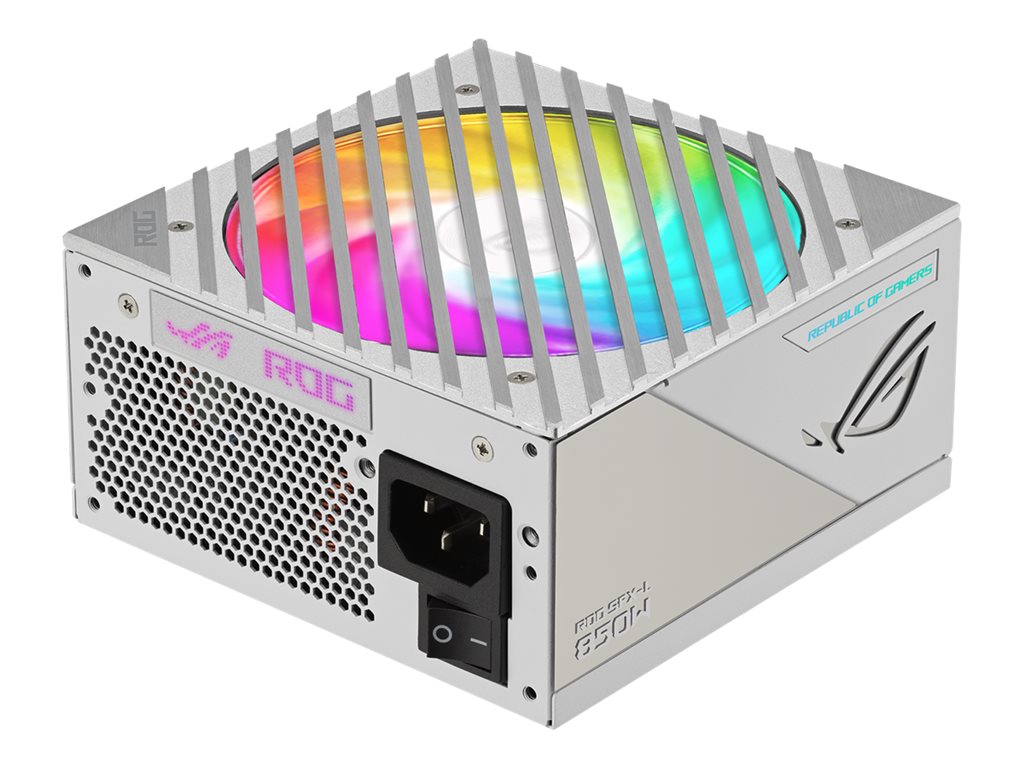

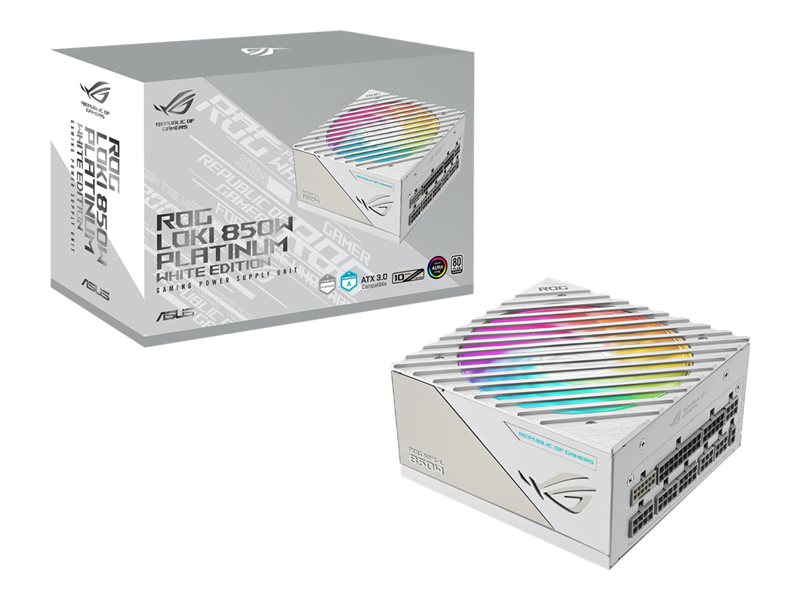

| Product Description | ASUS ROG Loki SFX-L - White Edition - power supply - 850 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX 3.0 / SFX-L |
| 80 PLUS Certification | 80 PLUS Platinum |
| Weight | 4 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A |

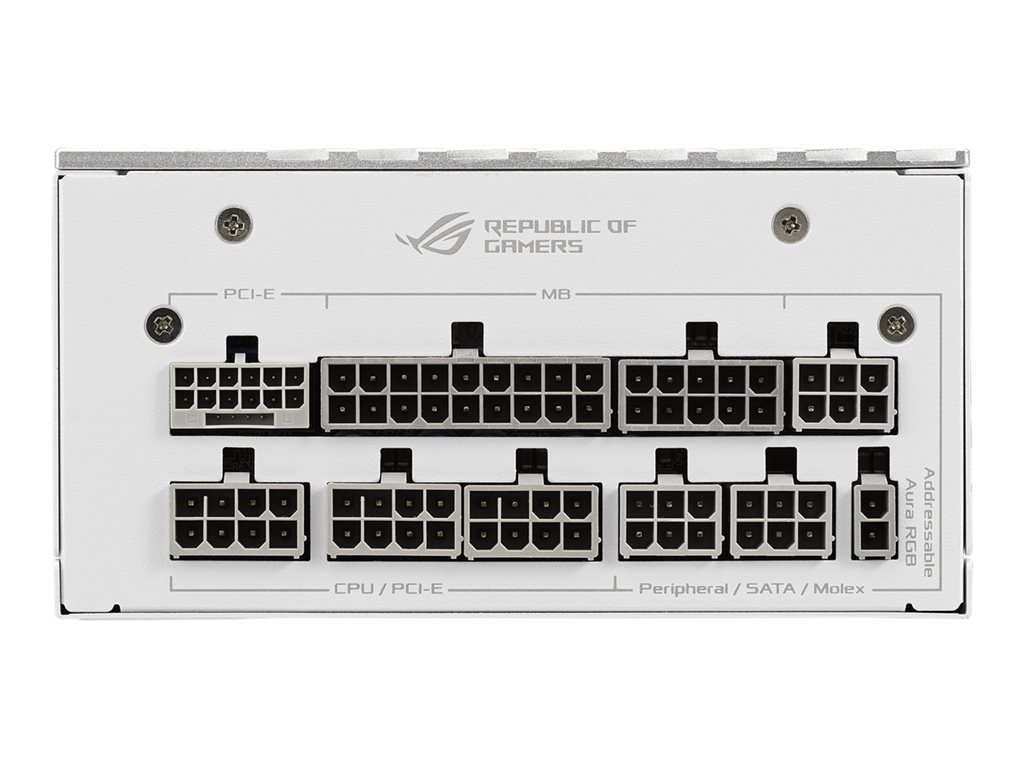

| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Modular Cable Management | Yes |

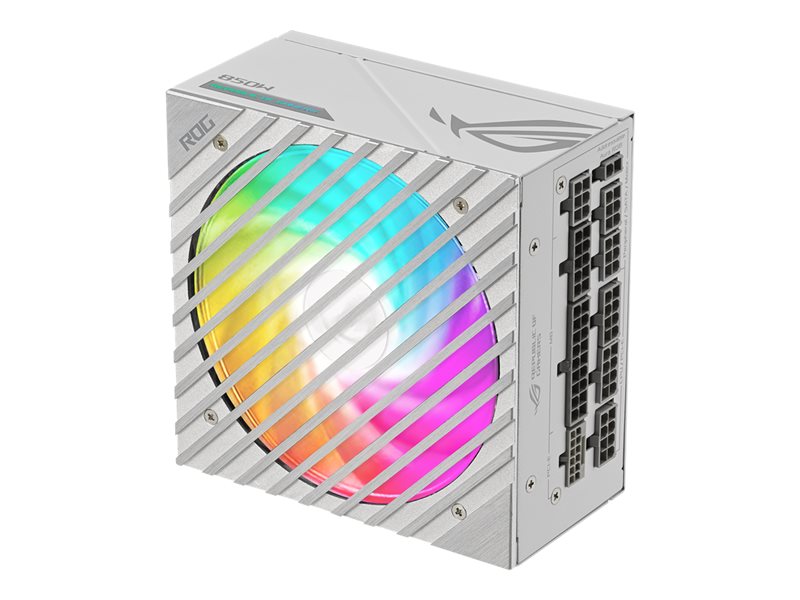

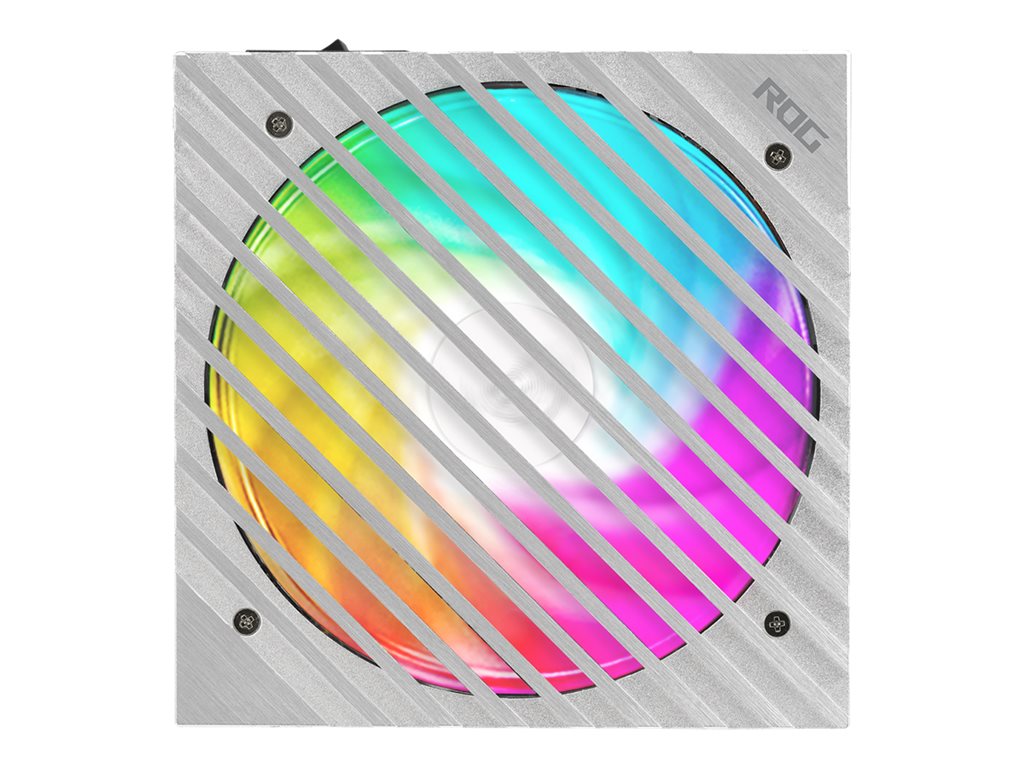

| Cooling System | 120 mm fan |
| Included Accessories | SFX to ATX bracket |
| Dimensions (WxDxH) | 4.9 in x 4.9 in x 2.5 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX 3.0 / SFX-L |
| PSU Form Factor | SFX-L |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years ¦ Limited warranty - RGB LEDs - 3 years |
| Miscellaneous | |
| Included Accessories | SFX to ATX bracket |
| Cables Included | AC input cable - external ¦ Power 24 pin ATX modular cable 1.5 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 1.8 ft ¦ 16-pin 12VHPWR power cable 1.5 ft ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 1.5 ft ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 1.5 ft ¦ ARGB sync cable 2.6 ft ¦ 2 x 3x Serial ATA modular cable ¦ 4 pin internal power cable |
| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, 0db Technology, ARGB fan |
| Compliant Standards | RoHS |
| Power Device | |

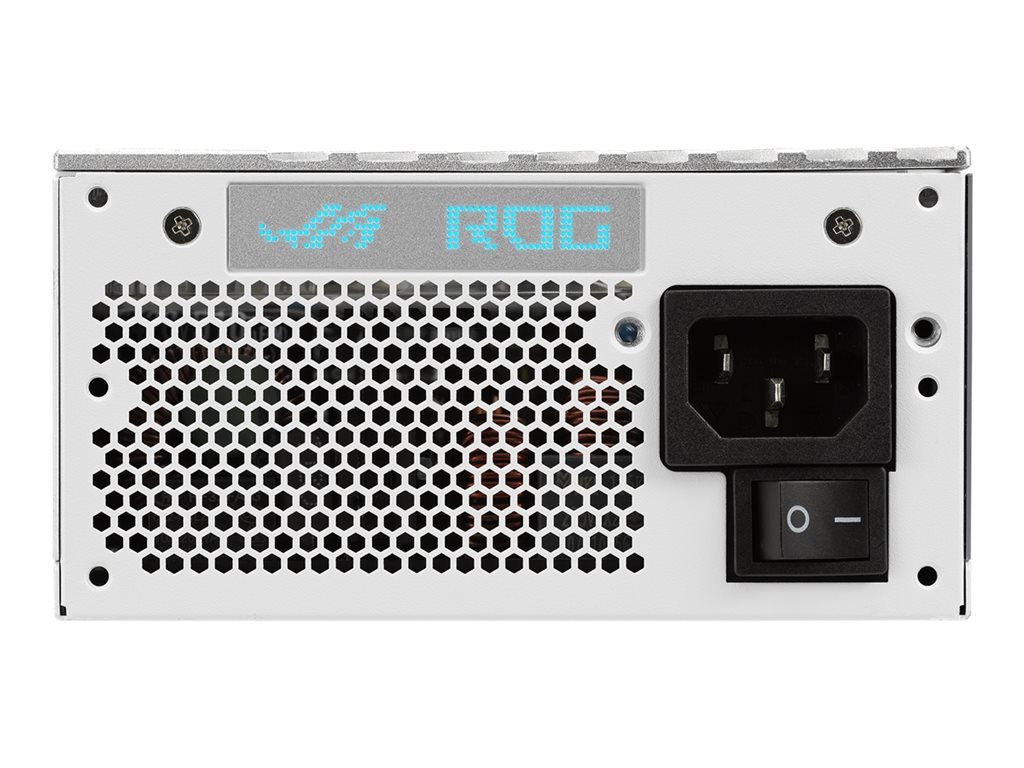

| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 4.9 in |
| Depth | 4.9 in |
| Height | 2.5 in |
| Weight | 4 lbs |
