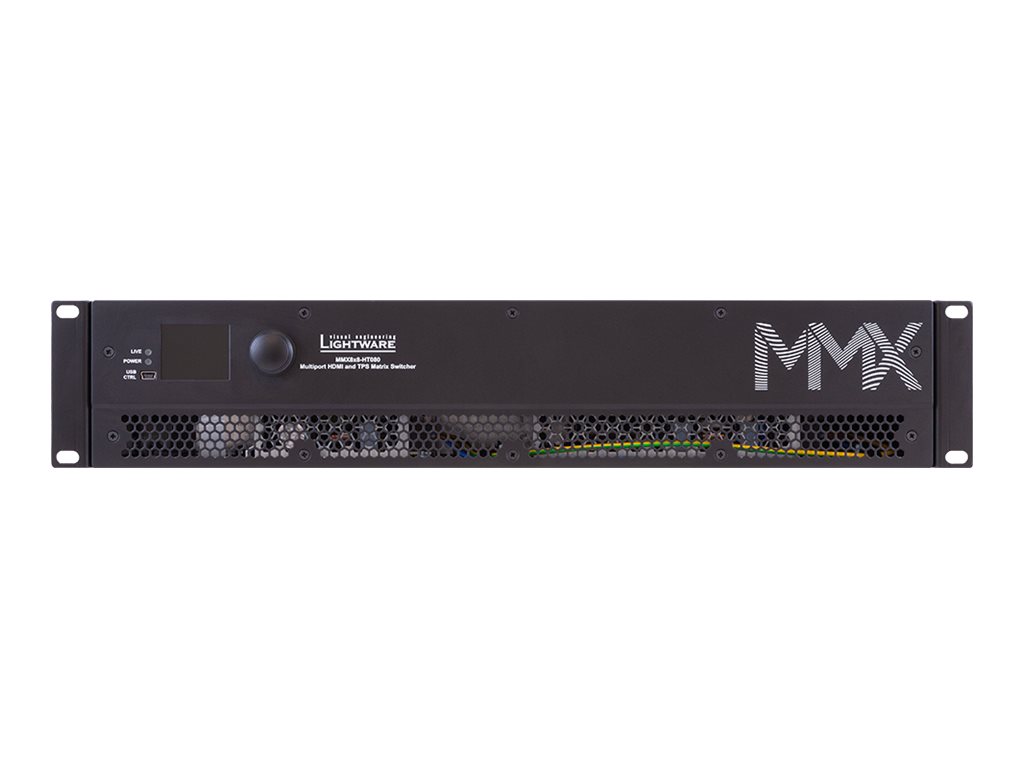

Video/audio switch - 8 x 8 - rack-mountable, desktop
| Main Specifications | |
|---|---|
| Product Description | Lightware MMX8x8-HT080 - video/audio switch - 8 x 8 - rack-mountable |
| Device Type | Video/audio switch - 8 x 8 |
| Enclosure Type | Rack-mountable 1U |
| Features | 4K30Hz support, RGB 4:4:4, YCbCr 4:2:0, PoE management, event management, bi-directional analog audio, long reach mode switch, Advanced EDID Management |
| General | |
| Device Type | Video/audio switch - 8 x 8 |
| Enclosure Type | Rack-mountable, desktop 1U |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 297 MHz |
| Features | 4K30Hz support, RGB 4:4:4, YCbCr 4:2:0, PoE management, event management, bi-directional analog audio, long reach mode switch, Advanced EDID Management |
| Built-in Devices | Status LCD |
| Expansion / Connectivity | |
| Interfaces | 8 x HDMI input ¦ 8 x HDBaseT output ¦ 4 x audio input 5 pin Phoenix ¦ 4 x audio output 5 pin Phoenix ¦ 2 x LAN RJ-45 ¦ 2 x RS232 ¦ 2 x serial ¦ 4 x IrDA input ¦ 4 x relay ¦ 6 x GPIO |
| Miscellaneous | |
| Compliant Standards | EMC, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 62368-1:2024, EN 63000:2018, RoHS, LVD 2014/35/EU, 2011/65/EU, WEEE, 2012/19/EU, EMC 2014/30/EU, UKCA, BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020, BS EN 62368-1:2024, BS EN 63000:2018 |
| Power | |
| Power Device | External power adapter |
| Power Provided | 48 V |
| Power Consumption Operational | 108 watt |
