LCD projector - 8000 lumens - WUXGA (1920 x 1200) - 16:10 - LAN - black
| Main Specifications | |
|---|---|
| Product Description | NEC PV Series NP-PV800UL-B1 - LCD projector - LAN - black |
| Device Type | LCD projector |
| Color | Black |
| Built-in Devices | 0.76" LCD with MLA |
| Brightness | 8000 lumens |
| Contrast Ratio | 3000000:1 |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Video Input | (NTSC, NTSC 4.43, PAL 60, PAL-M, PAL-N, PAL, SECAM), LAN |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD (3840 x 2160) |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19.8 in x 16.2 in x 6.6 in |
| Weight | 24.69 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | LCD projector |
| Built-in Devices | 0.76" LCD with MLA |
| Networking | Ethernet |
| Enclosure Color | Black |
| Expansion / Connectivity | |

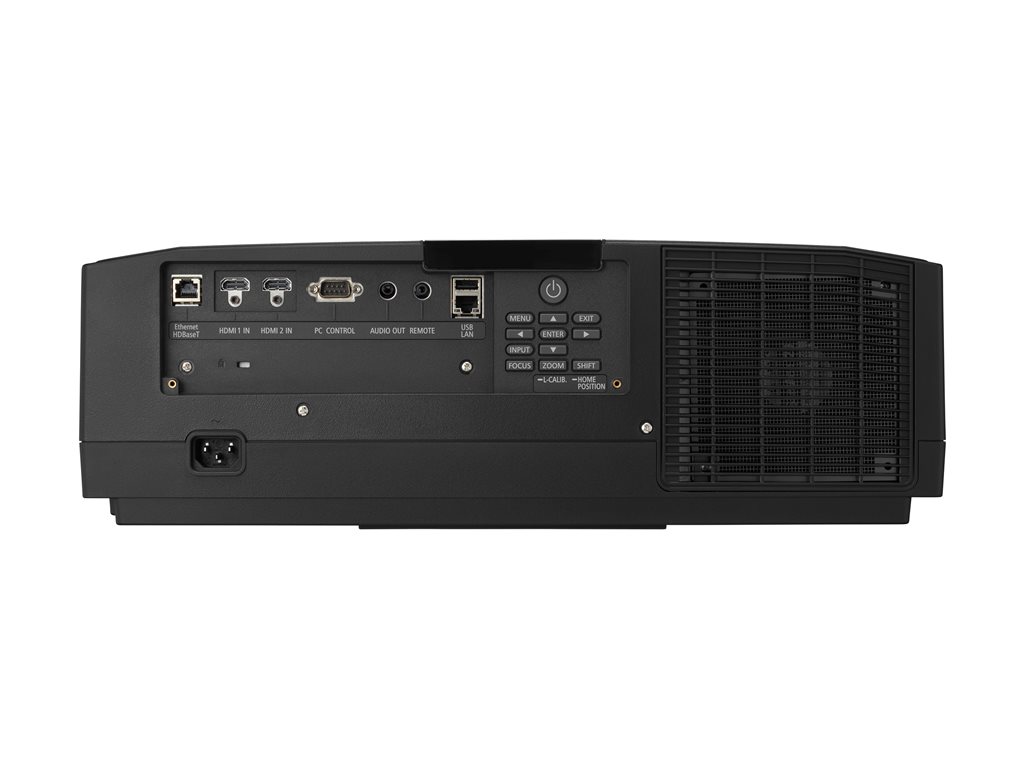

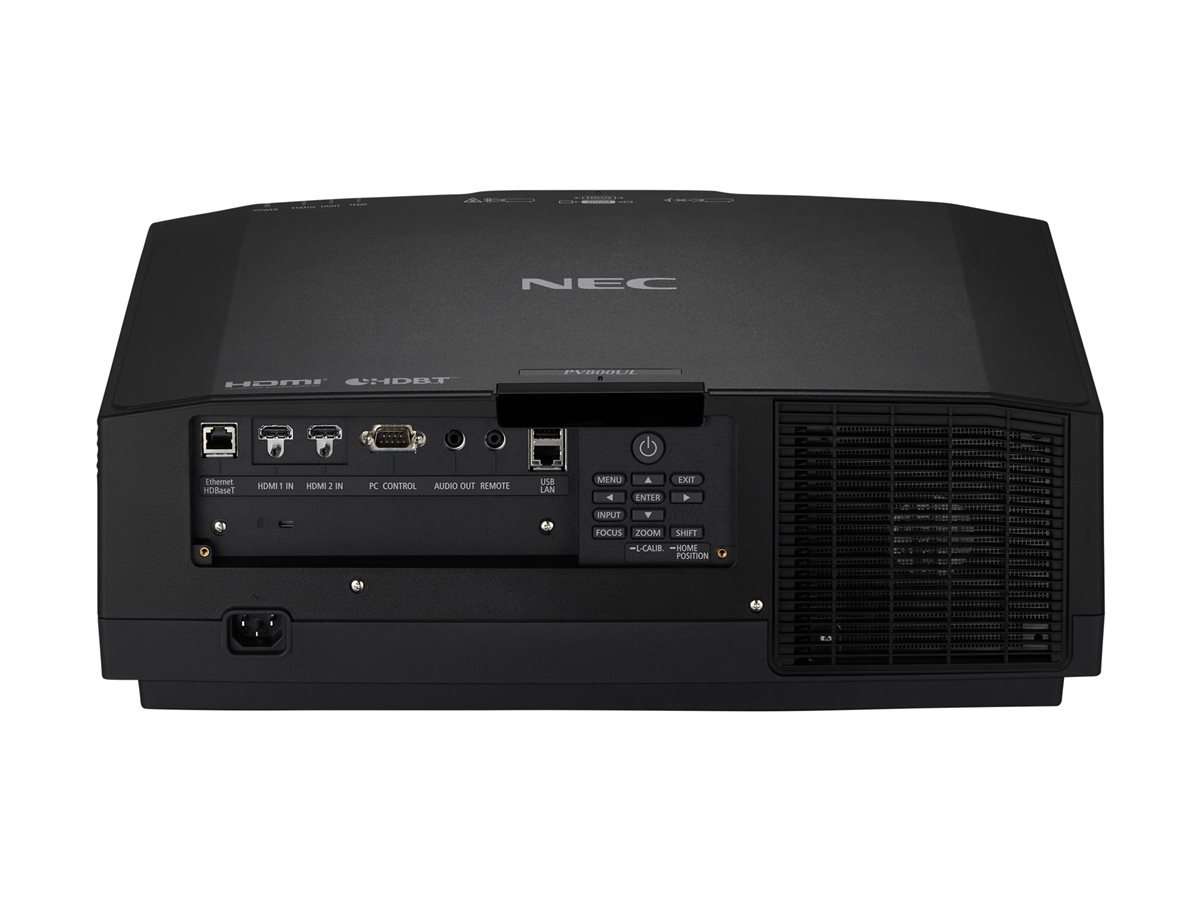

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x HDBaseT input - RJ-45 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 (management) ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x audio line-in - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years / 20000 hours |
| Miscellaneous | |
| Included Accessories | Remote control, lens cover, security sticker, lens anti-theft screw, batteries |
| Compliant Standards | HDCP 2.2, HDCP 1.4, DDC/CI, UL 60950-1 Second Edition, FCC Part 15 Class B, ANSI C63.4:2014, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, ICES-003 issue 6 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.16 watt |
| Software / System Requirements | |
| Software Included | ProAssist Software |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 42 dB |
| Sound Emission (Economic Mode) | 33 dB |
| Video Input | |
| TV System | NTSC, NTSC 4.43, PAL 60, PAL-M, PAL-N, PAL, SECAM |
| Video Interfaces | HDMI, HDBaseT |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD (3840 x 2160) |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 19.8 in |
| Depth | 16.2 in |
| Height | 6.6 in |
| Weight | 24.69 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.3 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 10.2 in |
| Shipping Weight | 29.54 lbs |
| Projector | |
| Brightness | 8000 lumens |
| Contrast Ratio | 3000000:1 |
| Projection Distance | 2.4 ft - 69 ft |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Max Sync Rate (V x H) | 85 Hz x 100 kHz |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Keystone correction |
| Features | Mac compatible, 4:3 aspect ratio support, 16:9 aspect ratio support, 21:9 aspect ratio support, Laser Shutter, Quick On, Eco Mode, DICOM Simulation Mode, NaViSet Administrator 2, Quick Off, Advanced AccuBlend technology, AutoSense technology, portrait mode, landscape mode, tilt-free Installation, Crestron RoomView, Direct Power Off, Cornerstone Correction, wall color correction, Virtual Remote, AMX Beacon, PJlink |
| Lens | |
| Focus Type | Powered |
| Zoom Type | Powered |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 10% / 50% |
| Horizontal Lens Shift | 30% / 30% |
