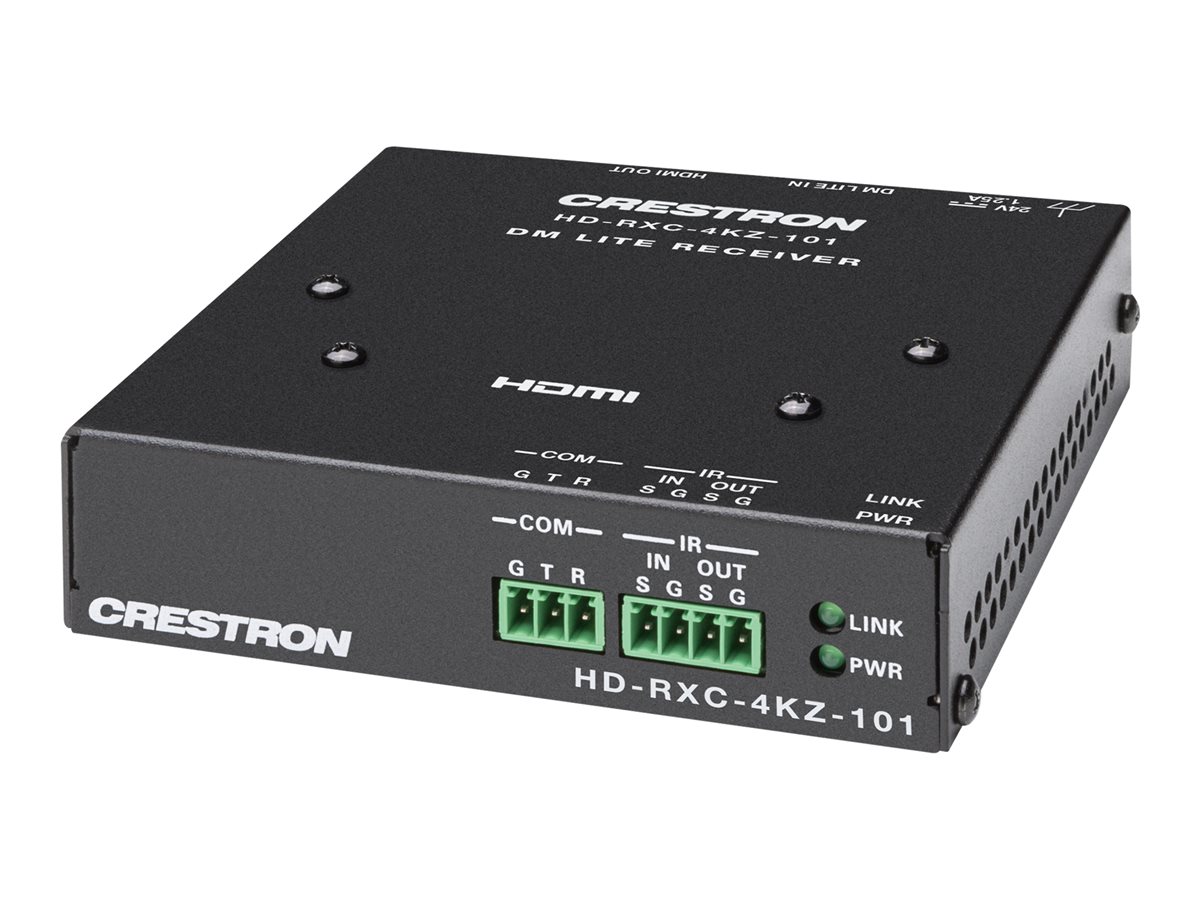

Video/audio/infrared/serial extender - receiver - CATx, DM Lite - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | Crestron DM Lite HD-RXC-4KZ-101 - video/audio/infrared/serial extender - CATx, DM Lite |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Desktop / surface-mountable / rack mountable |
| Data Link Protocol | CATx, DM Lite |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4.2 in x 1.1 in x 4.1 in |
| Weight | 11.82 oz |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Desktop / surface-mountable / rack mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x IR (input / output) - 4 pin terminal block ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x HDMI output - Type A female ¦ 1 x DM Lite (input) - RJ-45 female |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets |
| Compliant Standards | FCC Part 15 B, IC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | CATx, DM Lite |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Link, power, HDMI output, DM Lite |
| Features | HDR10+ support, 4K60 8-bit 4:4:4 compatible, Dolby Vision HDR support, HDR10 support, EDID Pass-Through, CEC passthrough, Deep Color support, Dolby Atmos support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, DTS support, DTS:X support, DTS-HD Master Audio support, DTS-HD support, LPCM 7.1 support, metal housing, vented sides |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 4.2 in |
| Depth | 1.1 in |
| Height | 4.1 in |
| Weight | 11.82 oz |
