Wireless bridge - 1GbE - Wi-Fi 6 - 5 GHz - pole mountable
| Main Specifications | |
|---|---|

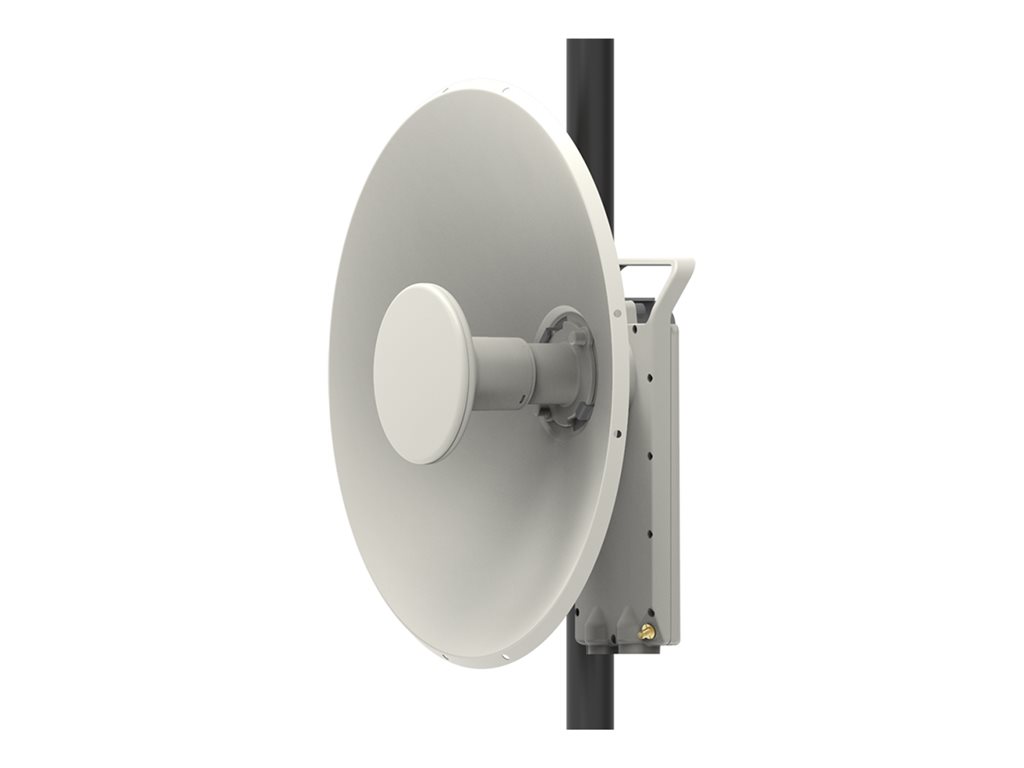

| Product Description | Cambium Networks ePMP Force 4525 SM - wireless bridge - Wi-Fi 6 |
| Device Type | Wireless bridge |
| Form Factor | Pole mountable - outdoor |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 5 GHz |
| Performance | Latency: <5 ms ¦ Channel width: 20 / 40 / 80 MHz ¦ Frequency range: 5180 - 5885 MHz |
| Included Accessories | Power cable (US) |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 18.6 in x 11.7 in x 18.6 in |
| Weight | 6.08 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless bridge |
| Ruggedized Design | Outdoor |
| Width | 18.6 in |
| Depth | 11.7 in |
| Height | 18.6 in |
| Weight | 6.08 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power cable (US) |
| Compliant Standards | FCC, IP55 |
| Networking | |
| Form Factor | Pole mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | BPSK, 1024 QAM |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPv4, IPv6 |
| Remote Management Protocol | SNMP 2c, HTTPS, SSH, NTP, IPv4, IPv6 |
| Frequency Band | 5 GHz |
| Performance | Latency: <5 ms ¦ Channel width: 20 / 40 / 80 MHz ¦ Frequency range: 5180 - 5885 MHz |
| Features | ARQ support, 2x2 MIMO technology, AFC ready, MAC (Media Access Control) Layer, cnMaestro support, Quality of Service (QoS), 1 Joule surge suppression, IPv4 and IPv6 dual stack, firmware upgradable |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3at, IEEE 802.11ax |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector |
| Power Consumption Operational | 13 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Antenna | |
| Antenna | External integrated |
| Gain Level | 25 dBi |
