Distribution amplifier
| Main Specifications | |
|---|---|

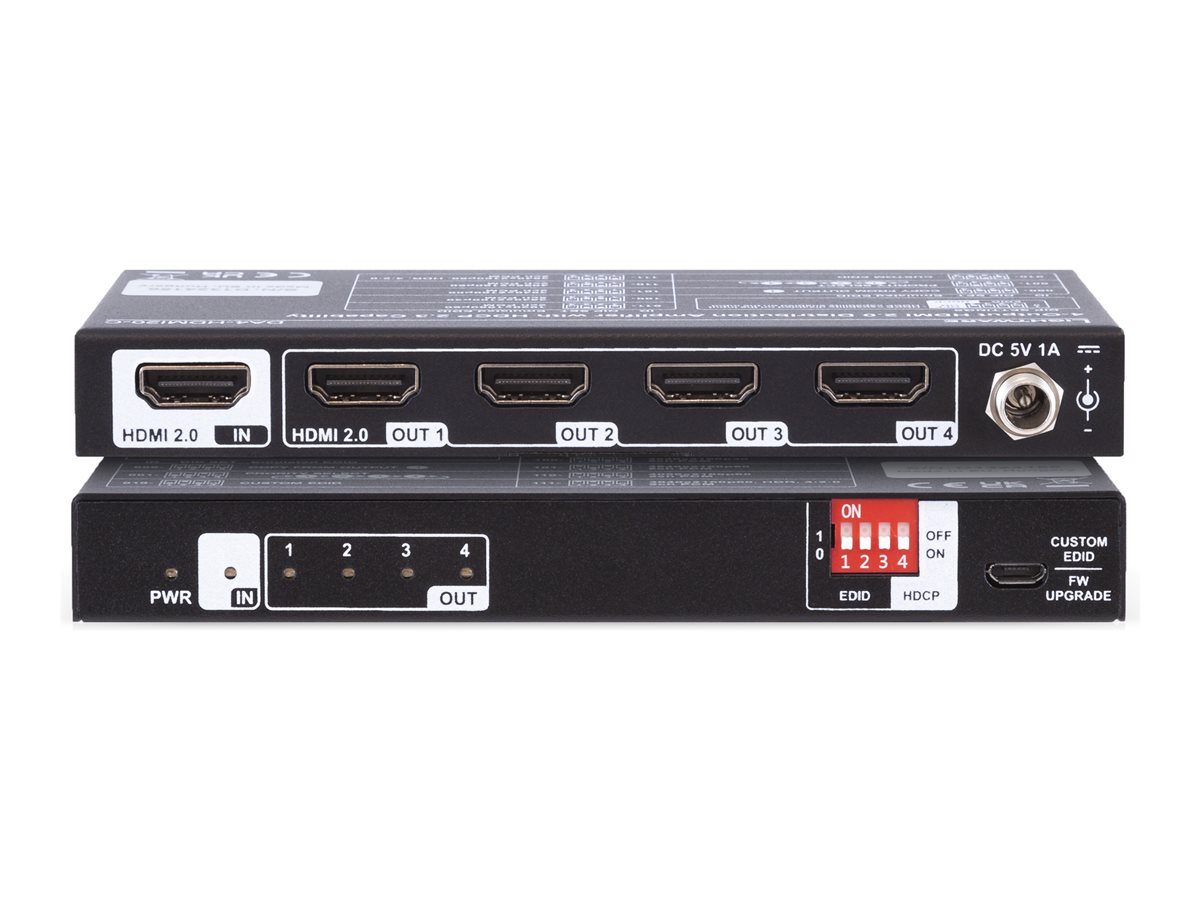

| Product Description | Lightware DA4-HDMI20-C distribution amplifier |
| Type | Distribution amplifier |
| Dimensions (WxDxH) | 5.6 in - 2.8 in - 0.7 in |
| Weight | 9.17 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Distribution amplifier |
| Width | 5.6 in |
| Depth | 2.8 in |
| Height | 0.7 in |
| Weight | 9.17 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 2.5 Watt |
| Low Voltage Power | DC 5 V |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% RH |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (4) x HDMI output - 19 pin HDMI Type A ¦ (1) x USB - Micro-USB Type B - control |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.3 compliant, 4K60 4:4:4 signal support, reclocking, 3D Ready, Dolby TrueHD support, DTS-HD Master Audio support, 4K to 1080p downscale, CEC Protocol pass-through |
