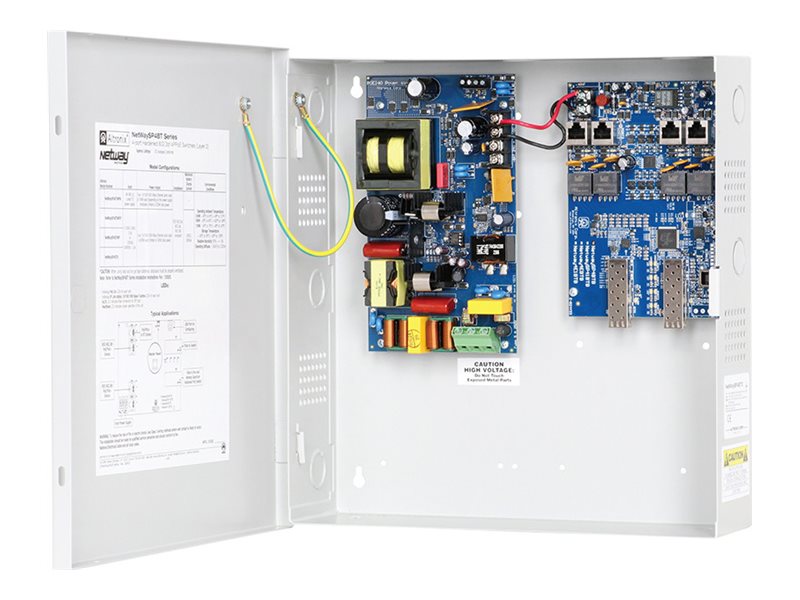

Switch - 4 x 10/100/1000 (4PPoE) + 2 x Gigabit SFP - internal - 4PPoE (240 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Altronix NetWay NetWaySP4BTX - switch - 4 ports - internal - TAA Compliant |
| Device Type | Switch - 4 ports |
| Enclosure Type | Internal |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (4PPoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | 4PPoE |
| PoE Budget | 240 W |
| Features | Surge protection, crossover detection, LINQ Technology, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power | AC 115/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 13 in x 3.3 in x 13.5 in |
| Weight | 6.86 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 4 ports |
| Enclosure Type | Internal |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (4PPoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | 4PPoE |
| PoE Budget | 240 W |
| Features | Surge protection, crossover detection, LINQ Technology, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Status Indicators | PoE, link, status |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 90 W ¦ 2 x Gigabit LAN SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, BAA |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 115/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 85% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 13 in |
| Depth | 3.3 in |
| Height | 13.5 in |
| Weight | 6.86 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.74 lbs |
