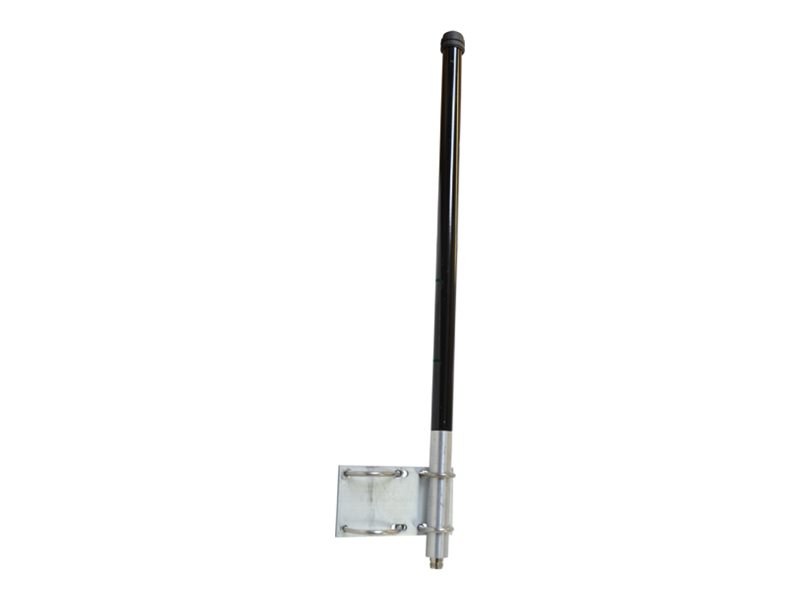

Antenna - 5G Omni-Directional High Vibration Antenna - dipole - cellular - 2 dBi (for 617 - 960 MHz), 4 dBi (for 1700 - 6000MHz) - omni-directional - outdoor - black
| Main Specifications | |
|---|---|
| Product Description | Mobile Mark OD3-600/6000MOD2 - antenna - 5G Omni-Directional High Vibration Antenna |
| Product Type | Antenna - 5G Omni-Directional High Vibration Antenna |
| Dimensions (WxDxH) | 17.5 in x 17.5 in x 1 in |
| Weight | 15.87 oz |
| Product Material | Fiberglass, aluminum |
| Color | Black |
| Form Factor | Dipole |
| Intended For | Cellular |
| Antenna Placing / Mounting | Outdoor |
| Compatibility | 5G, LTE |
| Frequency Range | 617 - 960 MHz, 1700 - 6000 MHz |
| Gain | 2 dBi (for 617 - 960 MHz), 4 dBi (for 1700 - 6000MHz) |
| Directivity | Omni-directional |
| Compliant Standards | IEC 60068, ETS300019-2-4, IP67 |
| General | |
| Product Type | Antenna - 5G Omni-Directional High Vibration Antenna |
| Product Material | Fiberglass, aluminum |
| Width | 17.5 in |
| Depth | 17.5 in |
| Height | 1 in |
| Weight | 15.87 oz |
| Enclosure Color | Black |
| Miscellaneous | |
| Compliant Standards | IEC 60068, ETS300019-2-4, IP67 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Cabling & Wiring | |
| Connector Provided | N connector female |
| Antenna | |
| Form Factor | Dipole |
| Intended For | Cellular |
| Antenna Placing / Mounting | Outdoor |
| Compatibility | 5G, LTE |
| Frequency Range | 617 - 960 MHz, 1700 - 6000 MHz |
| Gain | 2 dBi (for 617 - 960 MHz), 4 dBi (for 1700 - 6000MHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Vertical Beamwidth | 60° (at 617 - 960 MHz), 50° (at 1700 - 6000 MHz) |
| Impedance | 50 ohm |
