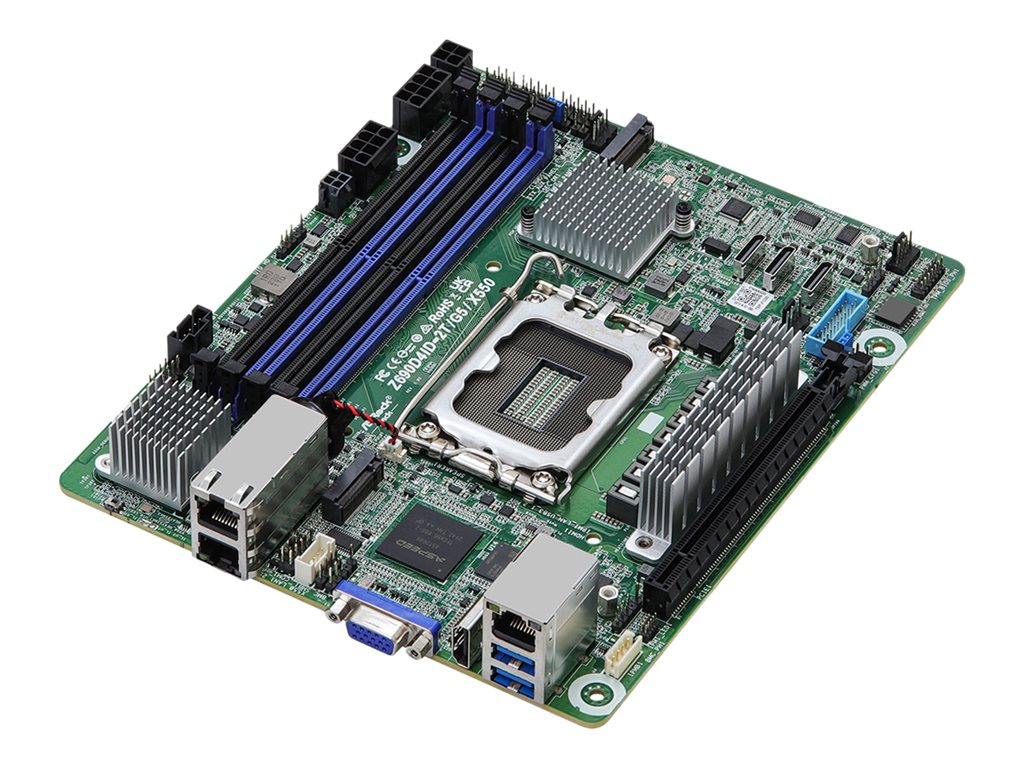

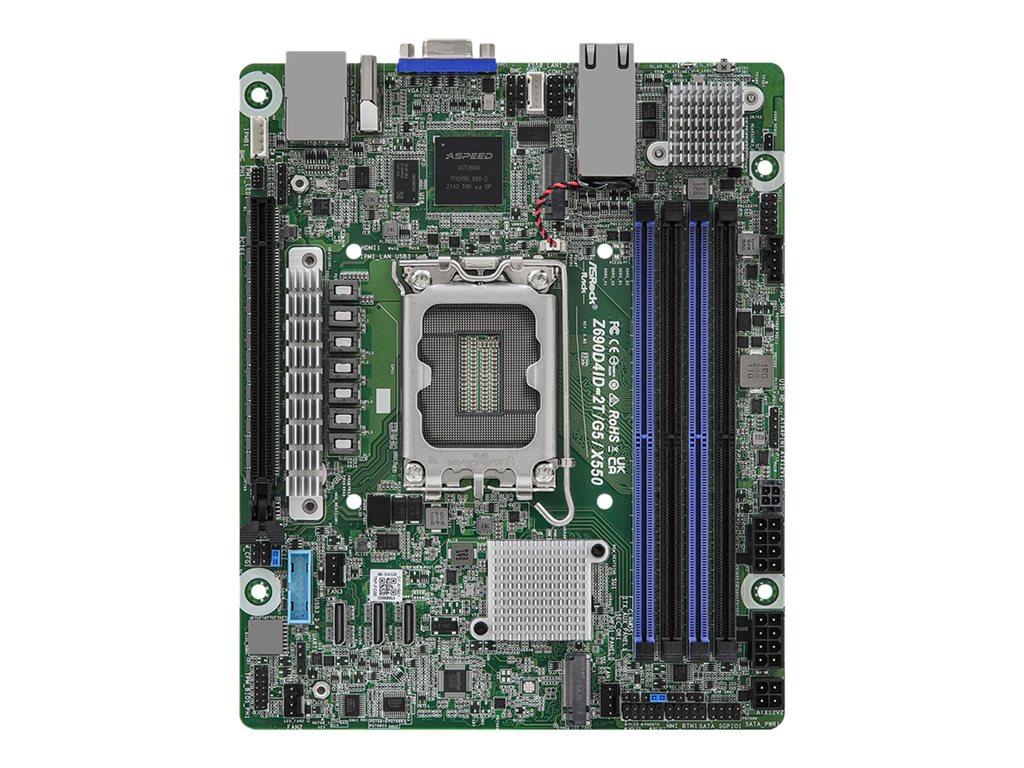

Motherboard - deep mini-ITX - LGA1700 Socket - Z690 Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack Z690D4ID-2T/G5/X550 - motherboard - deep mini-ITX - LGA1700 Socket - Z690 |
| Product Type | Motherboard - deep mini-ITX |
| Chipset Type | Intel Z690 |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 3 x OCuLink port, 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - deep mini-ITX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x OCuLink ¦ SATA-600 / PCIe 4.0 -connectors: 1 x OCuLink ¦ PCIe 4.0 -connectors: 1 x OCuLink ¦ PCIe 4.0 -connectors: 2 x M.2 |

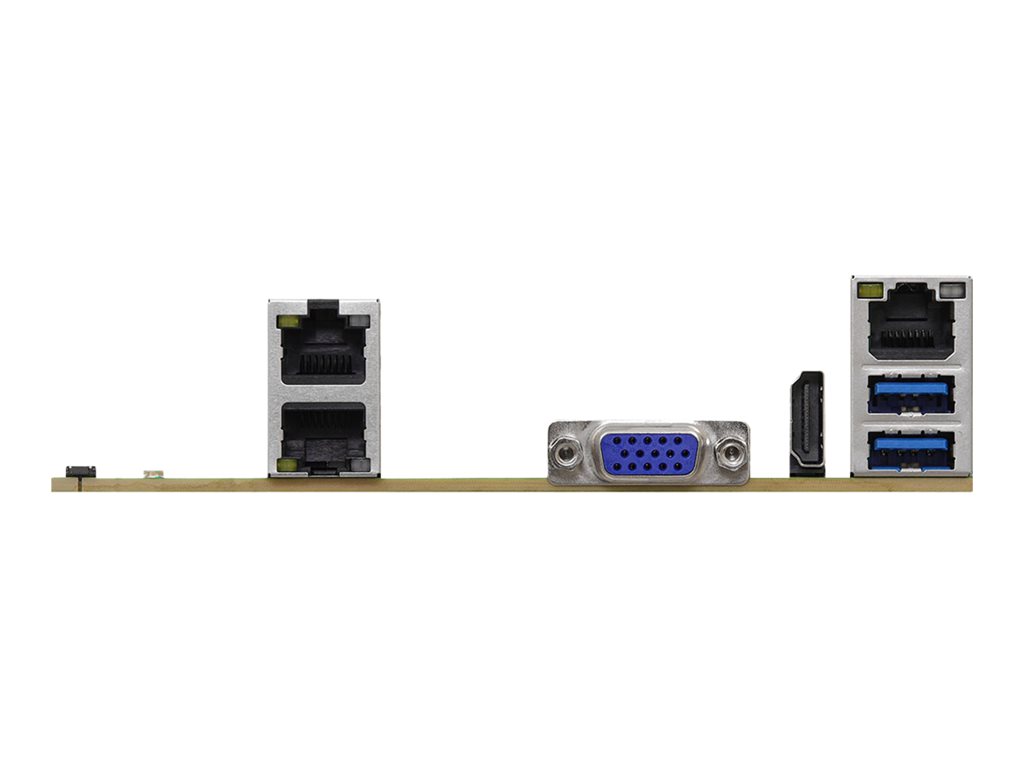

| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x management ¦ 1 x serial ¦ 2 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 1 x HDMI |
| Internal Interfaces | 1 x speaker - header ¦ 1 x SPI - header ¦ 1 x SGPIO - header ¦ 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 2 x 8-pin ATX12V connectors, DC-in power connector, 4-pin ATX12V connector |
| Miscellaneous | |
| Compliant Standards | UKCA, WEEE, Plug and Play |
| Width | 6.7 in |
| Depth | 8.2 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | IPMI 2.0 support, iKVM support, ACPI 6.4 support, SMBIOS 2.8 support |
| Hardware Monitoring | Chassis fan tachometer, CPU core temperature, system voltage, CPU core voltage |
| Hardware Features | ASRock Rack Instant Flash, Debug LED |
| LAN | |
| Network Controller | Intel X550 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Technology | DDR5 |
| Bus Clock | 4000 MHz, 4400 MHz, 3600 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
