Motherboard - SSI CEB - LGA6096 Socket - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics (CPU required)
| Main Specifications | |
|---|---|

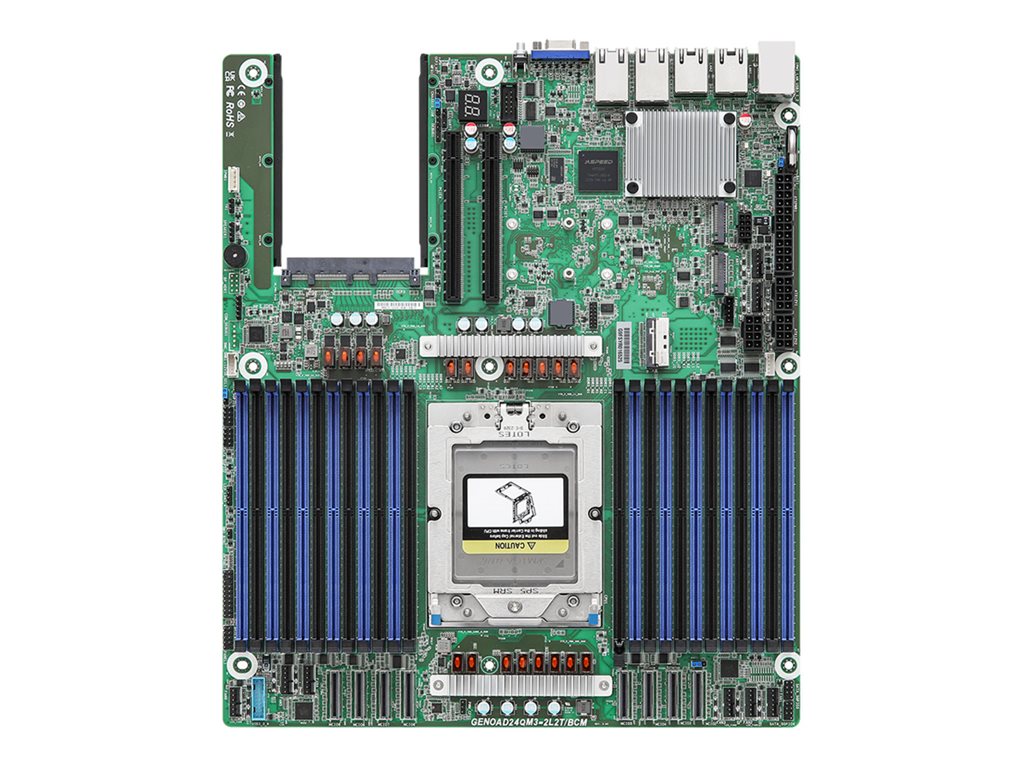

| Product Description | ASRock Rack GENOAD24QM3-2L2T/BCM - motherboard - SSI CEB - LGA6096 Socket |
| Product Type | Motherboard - SSI CEB |
| Processor Socket | 1 x LGA6096 Socket |
| Compatible Processors | EPYC 9004 series |
| Max RAM Size | 12.288 TB |
| RAM Supported | 24 DIMM slots - DDR5 |
| Storage Ports | 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - SSI CEB |
| Processor Socket | LGA6096 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 9004 series |
| Expansion / Connectivity | |
| Expansion Slots | 24 x DIMM 288-pin ¦ 1 x CPU ¦ 2 x PCIe 5.0 x16 ¦ 7 x PCIe 5.0 x8 (MCIO) ¦ 2 x M.2 socket (2260/2280/22110 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 (OCP 3.0 module support) |
| Storage Interfaces | SATA-600 / PCIe 5.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 5.0 -connectors: 16 x 7pin external SATA (via 2 x MCIO) |
| Interfaces | 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x management ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | IO shield, 2 x M.2 screws |
| Cables Included | 1 x MCIO x8 to 8 x SATA 6Gb/s cable |
| Width | 12 in |
| Depth | 14 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 3.5 support, PnP support, ACPI 6.4 support, IPMI support |
| Hardware Monitoring | Temperature detection, fan control, system voltage |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Broadcom BCM57416 / Intel I210 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 12.288 TB |
| Technology | DDR5 |
| Bus Clock | 3600 MHz, 4000 MHz, 4800 MHz |
| Features | Registered, 3DS registered |
