Motherboard - micro ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

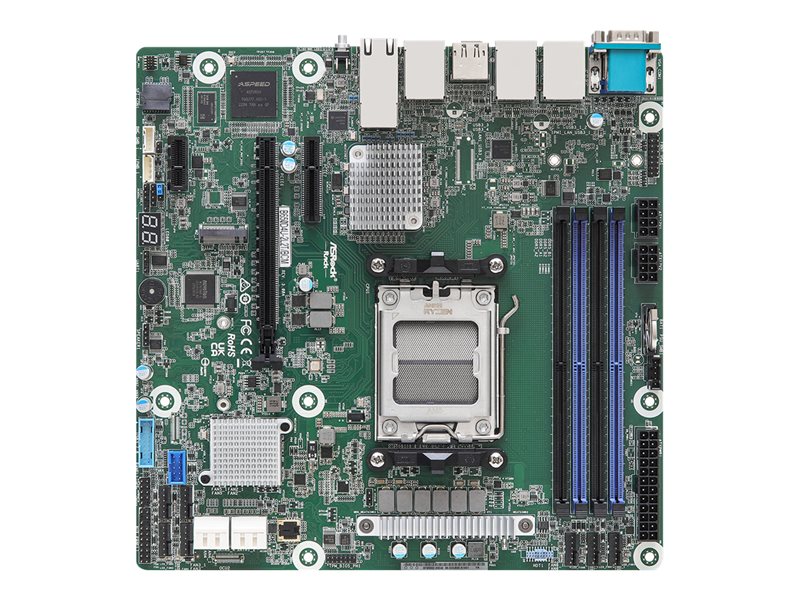

| Product Description | ASRock Rack B650D4U-2L2T/BCM - motherboard - micro ATX - Socket AM5 - AMD B650E |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650E |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600, 2 x OCuLink port, 1 x M.2 * |
| USB / FireWire Ports | 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 10 Gigabit Ethernet, Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x4 ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2242/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x OCuLink ¦ SATA-600 / PCIe 3.0 -connectors: 1 x OCuLink |

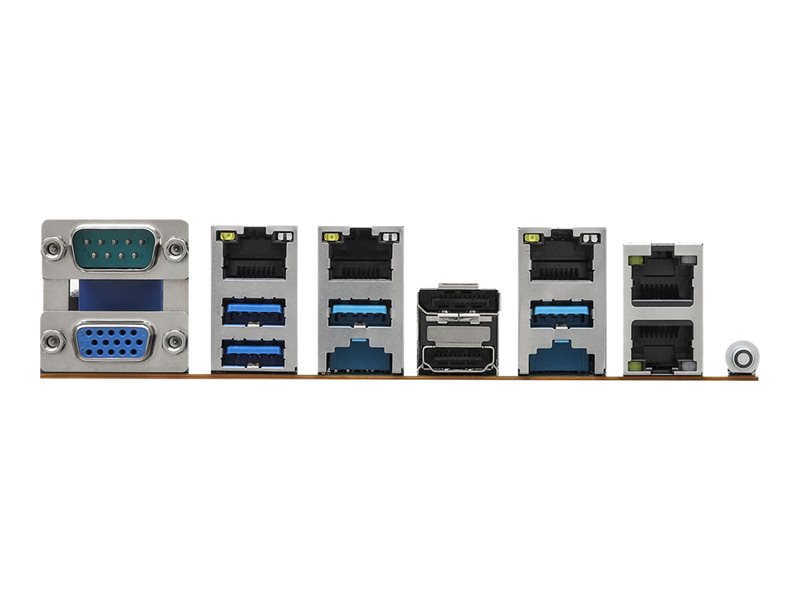

| Interfaces | 1 x VGA ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x serial ¦ 4 x USB 3.1 Gen 1 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | IO shield, 1 x M.2 screw |
| Cables Included | 1 x Serial ATA cable |
| Compliant Standards | FCC Part 15 Class B, UKCA, Plug and Play |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ACPI 6.4 support, SMBIOS 3.5 support, IPMI support |
| Hardware Monitoring | CPU core temperature, fan control, system voltage |
| Hardware Features | Chassis intrusion detection, diagnostic LEDs |
| LAN | |
| Network Controller | Broadcom BCM57416 / Intel I210 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz, 3600 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
