NVR - 32 channels - networked
| Main Specifications | |
|---|---|

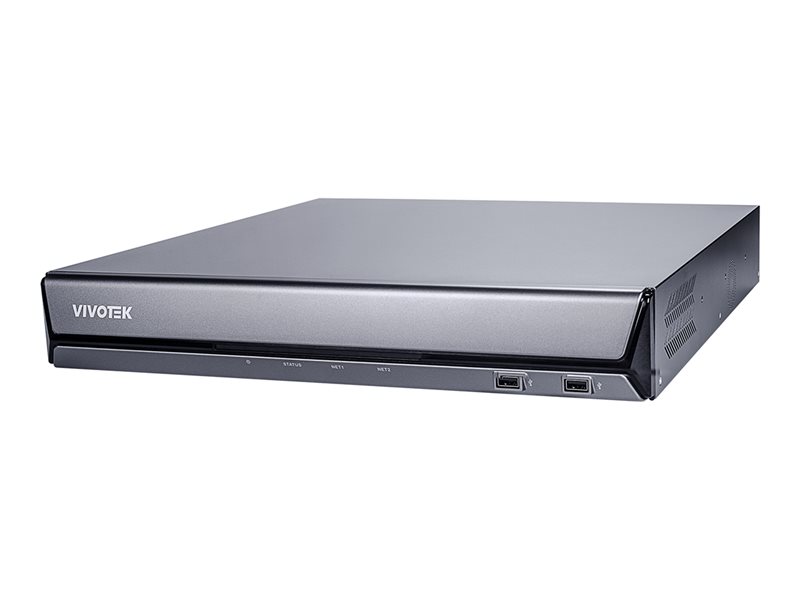

| Product Description | Vivotek V Series ND9542P - standalone NVR - 32 channels |
| Device Type | NVR - 32 channels - networked |
| Frame Rate | 360 fps, 90 fps |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726 |
| Image Resolution | 3840x2160, 1920x1080, 1280x720 |
| Hard Drive(s) Supported | Quantity: 4 |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) - without HDD | 17 in x 16.6 in x 2.6 in |
| Weight | 10.14 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Device Type | NVR |
| Video Channels | 32 |
| Image Resolution | 3840x2160, 1920x1080, 1280x720 |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726 |
| OS Provided | Linux |
| Software Included (Y) | VIVOCloud App |
| Compliant Standards | NDAA, IEEE 802.3at, IEEE 802.3af, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
| Warranty | 3 years |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | FTP, IPv4, IPv6, TCP/IP, HTTPS, HTTP, UPnP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, NTP |
| Features | Hardware watchdog, Disk S.M.A.R.T. Scan, ONVIF Profile S |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 95% |
| Hard Drive | |
| Quantity Supported | 4 |
| Interface | Serial ATA |
| Connections | |
| Video Input Ports | RJ-45 x 2 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | Mini-phone 3.5 mm x 1 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Alarm Ports | Alarm input x 16, alarm output x 8 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 1 |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 16.6 in |
| Height | 2.6 in |
| Weight | 10.14 lbs |
| Comments | Without HDD |
| Security DVR | |
| Frame Rate (Record) | 360 fps, 90 fps |
| Video Recording Resolution | 1920x1080, 20 Megapixels, 3840x2160 |
| Display Modes | Full screen, 2 split screens, 4 split screens, 9 split screens, 5 split screens, 6 split screens, 7 split screens, 13 split screens, 16 split screens, 32 split screens |
| Playback Search | Alarm, date/time, event |
| Record Events | Motion detection, tamper detection, video loss |
| Networked | Yes |
| Features | Power over Ethernet (PoE), RAID 0 support, RAID 1 support, RAID 5 support, Pan/Tilt/Zoom support, Fisheye Dewarp function, Cybersecurity Management, e-mail alarm notifications, motion detection, camera tampering, video loss detection, vehicle detection, human detection, Line Crossing Detection, intrusion detection, loitering detection, VCA Counting Solution support, Smart VCA Event Search, Smart Search II, Trend Micro IoT Security |
