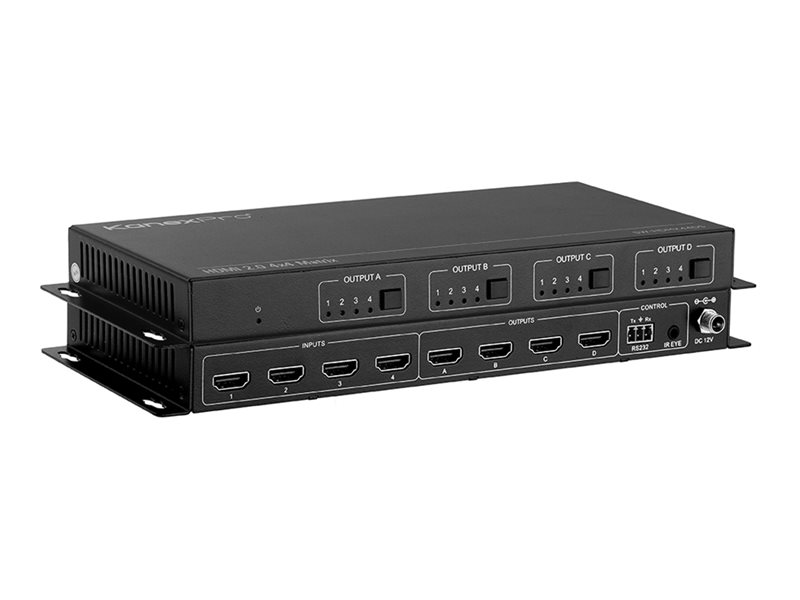

Video/audio switch - 4x4, with independent 4K downscaling, HDR support - desktop
| Main Specifications | |
|---|---|
| Product Description | KanexPro - video/audio switch - 4x4, with independent 4K downscaling, HDR support |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Features | 4K resolution support, HDR10 support, downscaler function, Dolby Vision support, 3D support, PCM, Dolby Digital support, DTS support, 4:4:4 chroma subsampling support, SmartEDID, metal housing |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.6 in x 3.9 in x 1 in |
| Weight | 22.57 oz |
| Color | Black |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | 4K resolution support, HDR10 support, downscaler function, Dolby Vision support, 3D support, PCM, Dolby Digital support, DTS support, 4:4:4 chroma subsampling support, SmartEDID, metal housing |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input Type A ¦ 4 x HDMI output Type A ¦ 1 x serial (RS-232) terminal block ¦ 1 x IrDA mini-jack |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 4 bumper feet, 3-pin to DB-9 cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 9.6 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 22.57 oz |
