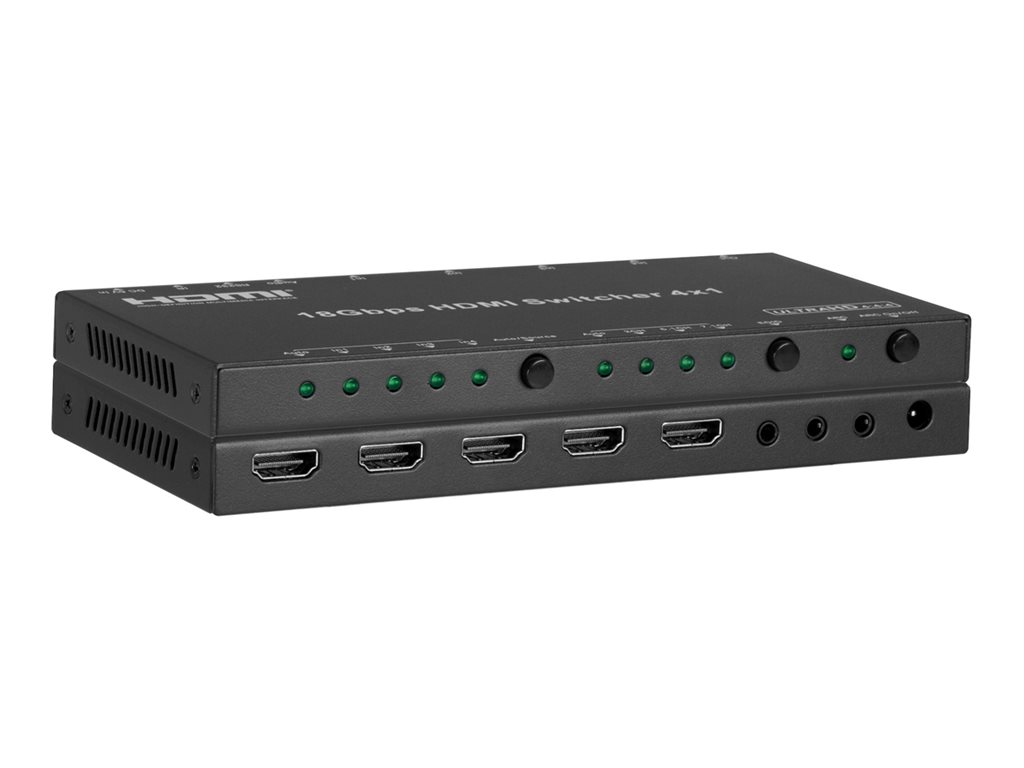

Video/audio switch - desktop
| Main Specifications | |
|---|---|
| Product Description | KanexPro - video/audio switch |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Performance | Video bandwidth: 18 Gbps |
| Features | 4K resolution support, ARC, audio extraction support, PCM 2.1 support, PCM 5.1 support, PCM 7.1 support, Dolby support, DTS support, Dolby TrueHD support, DTS-HD support, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), 2K resolution support, auto-switching, SmartEDID |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Dimensions (WxDxH) | 3.3 in x 7.1 in x 0.5 in |
| Weight | 10.58 oz |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Video bandwidth: 18 Gbps |
| Features | 4K resolution support, ARC, audio extraction support, PCM 2.1 support, PCM 5.1 support, PCM 7.1 support, Dolby support, DTS support, Dolby TrueHD support, DTS-HD support, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), 2K resolution support, auto-switching, SmartEDID |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 1 x HDMI output ¦ 1 x IrDA input ¦ 1 x serial (RS-232) ¦ 1 x audio output |
| Miscellaneous | |
| Included Accessories | Power adapter, IR receiver cable, optical convert header, IR remote |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 7.1 in |
| Height | 0.5 in |
| Weight | 10.58 oz |
