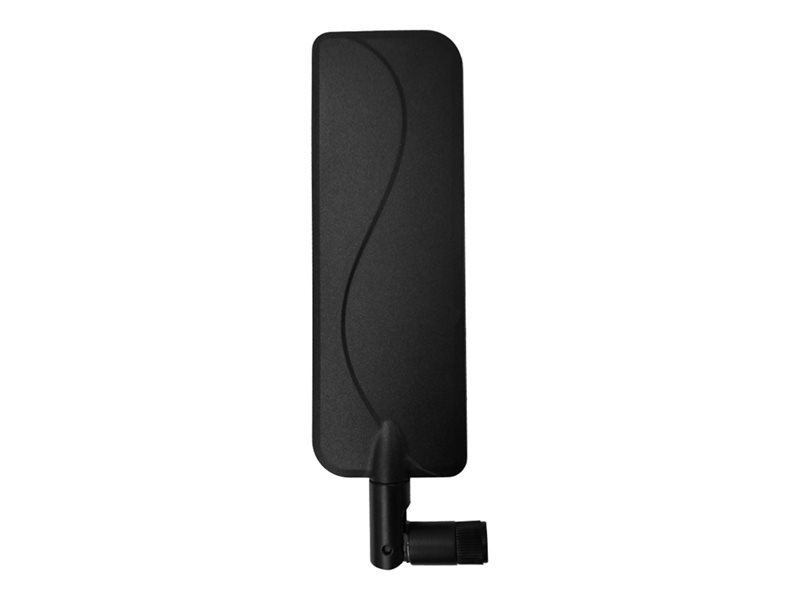

Antenna - High Gain 5G ready - dipole - cellular - 3 dBi - omni-directional - indoor / outdoor
| Main Specifications | |
|---|---|
| Product Description | Mobile Mark PSKN5-626 - antenna - High Gain 5G ready |
| Product Type | Antenna - High Gain 5G ready |
| Dimensions (WxDxH) | 1.9 in x 0.4 in x 7.6 in |
| Product Material | PC/ABS |
| Form Factor | Dipole |
| Intended For | Cellular |
| Antenna Placing / Mounting | Indoor / outdoor |
| Compatibility | 5G |
| Frequency Range | 617 - 6000 MHz, 617 - 698 MHz, 3550 - 3700 MHz |
| Gain | 3 dBi |
| Directivity | Omni-directional |
| General | |
| Product Type | Antenna - High Gain 5G ready |
| Product Material | PC/ABS |
| Width | 1.9 in |
| Depth | 0.4 in |
| Height | 7.6 in |
| Miscellaneous | |
| Features | Vertical polarisation |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Cabling & Wiring | |
| Connector Provided | SMA plug |
| Antenna | |
| Form Factor | Dipole |
| Intended For | Cellular |
| Antenna Placing / Mounting | Indoor / outdoor |
| Compatibility | 5G |
| Frequency Range | 617 - 6000 MHz, 617 - 698 MHz, 3550 - 3700 MHz |
| Gain | 3 dBi |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <3.5:1 |
| Impedance | 50 ohm |
