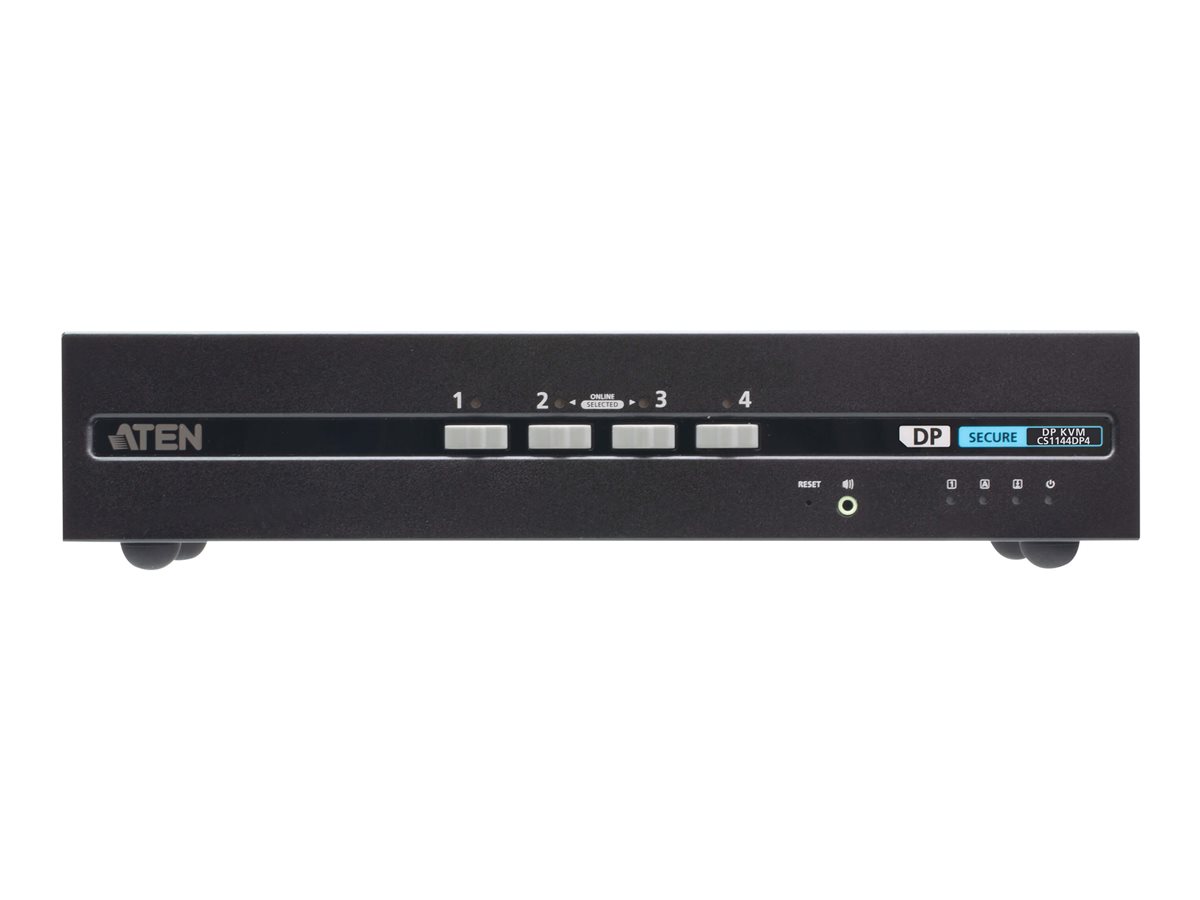

KVM / audio / USB switch - DisplayPort/HDMI, dual display, PSD PP v4.0 compliant, secure, universal - 4 x KVM / audio / USB - desktop
| Main Specifications | |
|---|---|
| Product Description | ATEN CS1144DP4UN - KVM / audio / USB switch - DisplayPort/HDMI, dual display, PSD PP v4.0 compliant, secure, universal - 4 ports |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | HDMI / DisplayPort / USB |
| Ports | 4 x KVM / audio / USB |
| Features | Remote Port Selector, push button, metal housing |
| Power | AC 100-240 V (50 - 60 Hz) 1.5 A |
| Dimensions (WxDxH) | 6.5 in x 13.2 in x 2.6 in |
| Weight | 4.74 lbs |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI / DisplayPort / USB |
| Ports | 4 x KVM / audio / USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | Remote Port Selector, push button, metal housing |
| Status Indicators | Power, KVM, video, key lock |
| Expansion / Connectivity | |
| Interfaces | 2 x DisplayPort/HDMI output console ¦ 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 1 x audio mini-jack console ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 8 x DisplayPort/HDMI input ¦ 4 x audio mini-jack ¦ 1 x remote selector switches RJ-11 |
| Miscellaneous | |
| Included Accessories | Power cable |
| Cables Included | 2 x DisplayPort-HDMI adapter ¦ 4 x DisplayPort / USB cable - 0.7 in |
| Compliant Standards | PSD PP v4.0 |
| Power | |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Electric Current Required | 1.5 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 13.2 in |
| Height | 2.6 in |
| Weight | 4.74 lbs |
