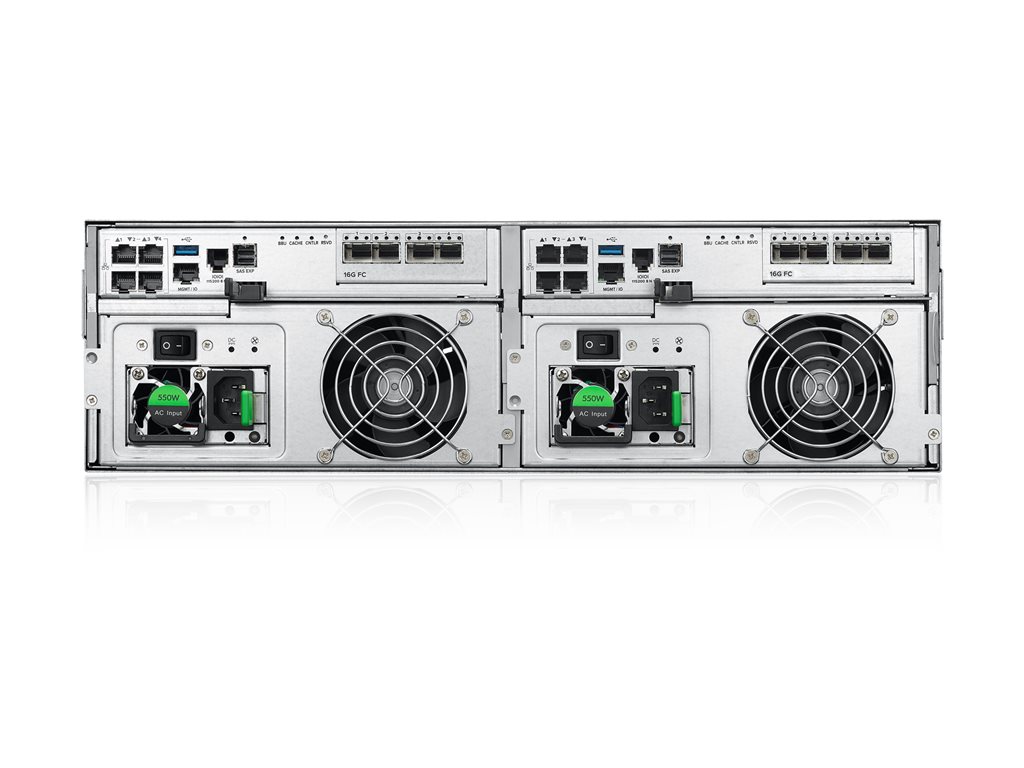

Hard drive array - 256 TB - 16 bays (SATA-600 / SAS-3) - HDD 16 TB x 16 - iSCSI (1 GbE), 32Gb Fibre Channel (external) - rack-mountable - 3U
| Main Specifications | |
|---|---|
| Product Description | Promise Vess R3600fiD - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Total Array Capacity | 256 TB |
| Interface | iSCSI (1 GbE), 32Gb Fibre Channel |
| Host Channels | 12 |
| Installed Devices / Modules Qty | 16 (installed) / 16 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - RAID 0, 1, 5, 6, 10, 50, 60 |
| Storage Controller Quantity | 2 |
| Hard Drive | 16 x 16 TB HDD - hot-swap |
| OS Required | Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 7.2, SuSE Linux 11 SP4, SUSE Linux 12 SP1, SUSE SLES, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR |
| Power | AC 100-240 / DC 180-320 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 20 in x 5.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces | 4 x Ethernet 1000Base-T ¦ 1 x SAS 12Gb/s - Mini SAS HD (SFF-8644) ¦ 1 x serial (management) - RJ-11 ¦ 1 x Ethernet 1000 (management) - RJ-45 ¦ 4 x Ethernet 10Gb ¦ 4 x 32Gb Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Thin provision, Snapshot function, thin clone, thick clone, SSD cache, Media Patrol, foreground initialization, Redundancy Check, Background Synchronization, rebuild, disk SMART polling, UPS monitoring, task scheduler, Predictive Data Migration (PDM), Intelligent Bad Sector Remapping, SMART error handling, NVRAM error logging, disk slot power control, Open Directory support, LUN masking and mapping, advanced cache mirroring over PCIe Gen3, Asymmetric LUN Unit Access (ALUA), drive power management (MAID), 100000 domain accounts, LDAP support, SNMP support |
| Software Included | Command Line Interface (CLI), Promise WebPAM PROe |
| Compliant Standards | EMC Class A, FCC, VCCI, BSMI, RCM, IEEE CB, NTRL, RoHS, WEEE |
| RAM | |
| Installed Size | 16 GB |
| Storage | |
| Total Array Capacity | 256 TB |
| HDD Array External Interface | iSCSI (1 GbE), 32Gb Fibre Channel |
| Host Channels | 12 |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 / DC 180-320 V |
| Power Provided | 550 Watt |
| 80 PLUS Certification | 80 PLUS |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 60 dB |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 7.2, SuSE Linux 11 SP4, SUSE Linux 12 SP1, SUSE SLES, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 16 x 16 TB |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 20 in |
| Height | 5.2 in |
| Chassis | |
| Installed Devices / Modules Qty | 16 |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-3 |
