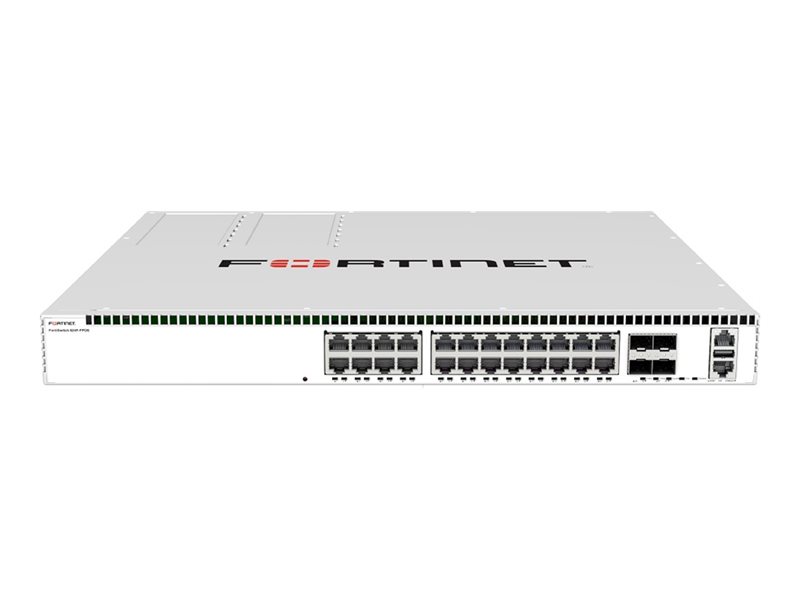

Switch - L3 - managed - 24 x 10/100/1000/2.5G (PoE++) + 4 x 25 Gigabit SFP28 - back to front airflow - rack-mountable - PoE++ (1400 W)
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSwitch 624F-FPOE - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G (PoE++) + 4 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1400 W |
| Performance | Switching capacity: 440 Gbps ¦ Forwarding performance: 654 Mpps ¦ Latency: 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Maximum aggregation groups: 28 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Policy-based routing (PBR), MSTP, MLD, IGMP, OSPFv2, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, OSPF |
| Remote Management Protocol | Syslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON |
| Features | MACsec support, IGMP snooping, 802.1x authentication, DHCP snooping, MAC black/whitelist, NAC, auto-negotiation, MDI, Auto MDIX, STP Root Guard, STP BPDU Guard, Private VLAN, port trunking, VLAN support, Storm Control, TDR, RPVST, Loop Guard, VLAN / port mapping, automatic topology detection, IGMP proxy, IGMP querier, MLD snooping, MLD proxy, MLD querier, DHCP relay, DHCP server, port mirroring, MAB, IP-MAC binding, sFlow, ACL support, ARP inspection, IP source guard, RA guard, WOL, High Availability, QoS, PTP, MC-LAG, SNTP support, FTP support, SPAN mode, RSPAN, ERSPAN |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1p |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 13.8 in x 1.7 in |
| Weight | 16.33 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G (PoE++) + 4 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1400 W |
| Performance | Switching capacity: 440 Gbps ¦ Forwarding performance: 654 Mpps ¦ Latency: 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Maximum aggregation groups: 28 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Policy-based routing (PBR), MSTP, MLD, IGMP, OSPFv2, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, OSPF |
| Remote Management Protocol | Syslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Features | MACsec support, IGMP snooping, 802.1x authentication, DHCP snooping, MAC black/whitelist, NAC, auto-negotiation, MDI, Auto MDIX, STP Root Guard, STP BPDU Guard, Private VLAN, port trunking, VLAN support, Storm Control, TDR, RPVST, Loop Guard, VLAN / port mapping, automatic topology detection, IGMP proxy, IGMP querier, MLD snooping, MLD proxy, MLD querier, DHCP relay, DHCP server, port mirroring, MAB, IP-MAC binding, sFlow, ACL support, ARP inspection, IP source guard, RA guard, WOL, High Availability, QoS, PTP, MC-LAG, SNTP support, FTP support, SPAN mode, RSPAN, ERSPAN |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1p |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Link/activity/speed, PoE activity, power, alarm, fan |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/2.5/5GBase-T RJ-45 PoE++ - 90 W ¦ 4 x 25GBase-X SFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| Cables Included | 1 x console cable ¦ 2 x AC power cable |
| Rack Mounting Kit | Included |
| MTBF | >10 years |
| Compliant Standards | FCC, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1200 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 16.33 lbs |
